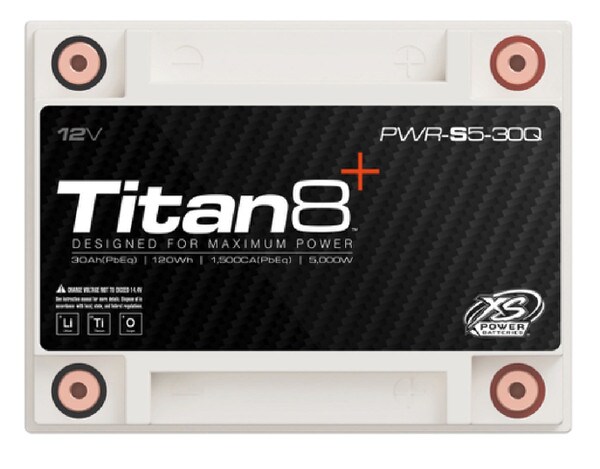

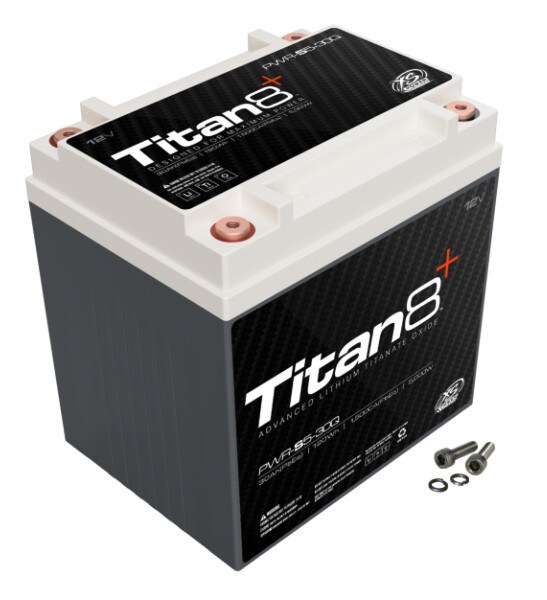

XS POWER TITAN SERIES LITHIUM TITANATE 12 VOLT 5000 WATT HARLEY BATTERY (PWR-S5-30Q)
Details
This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.
LENGTH - 6.89"
HEIGHT 6.10"
WIDTH - 3.43"
M6 Terminal Hardware Included
BCI | 30/30L |
---|---|
Voltage | 12 |
Rated Watts | 5000 |
Energy Wh | 120 |
Max Amps | 2000 |
Cranking Amps | 1000 |
CA Pb Eq | 1500 |
Ah | 10 |
Ah Pb Eq | 30 |
Terminal Orientation | Left/Right Hand, Quad |
Brand | XS Power Batteries |
