TEXAS RANGER 40 CHANNEL CB RADIO WITH FREQUENCY COUNTER FACTORY REPAIR WARRANTY ONLY (TRE-936FFB)
Details

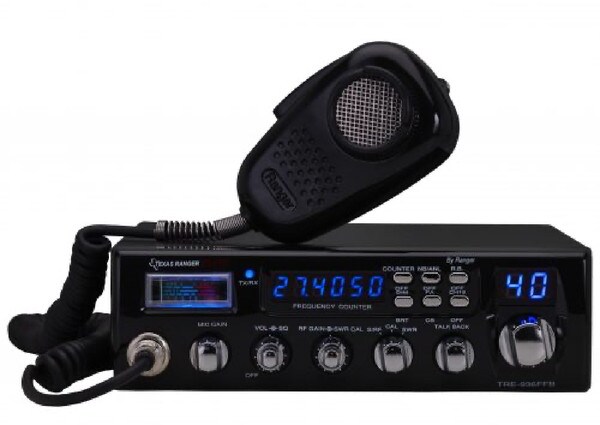

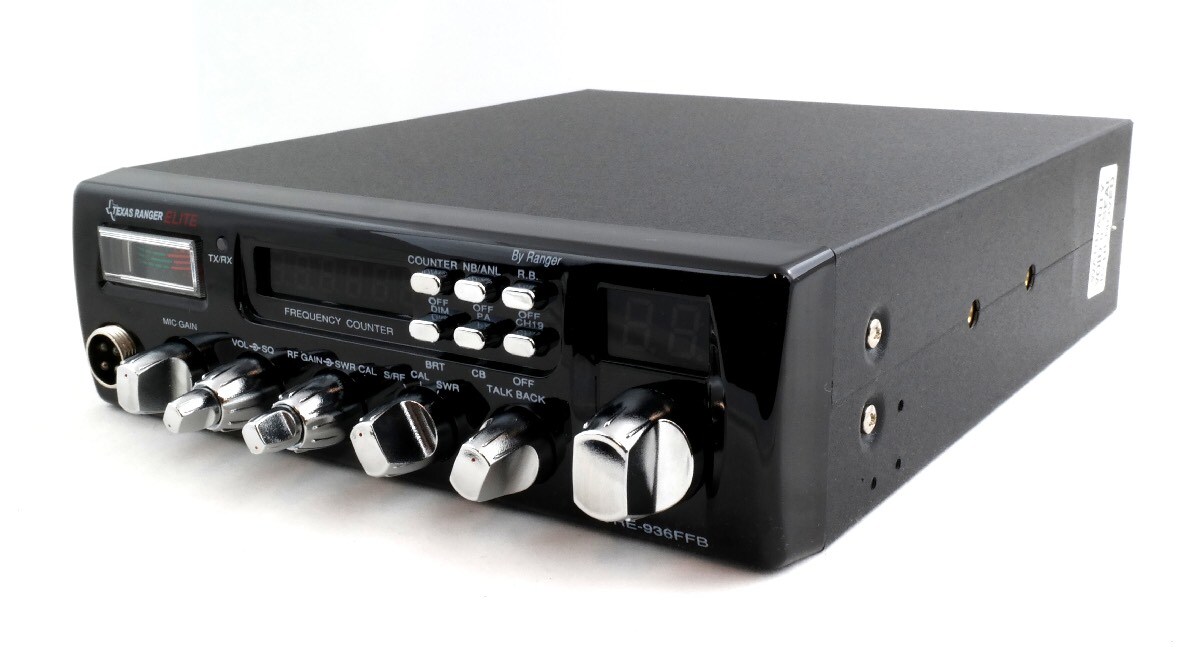

Texas Ranger Elite TRE-936FFB
40 Channel AM CB Radio with frequency counter
For over 40 years, Ranger Communications has build the world’s best amateur and CB radio equipment.
The Texas Ranger Elite TRE-936FFB is the latest example of Ranger’s legendary performance.
Features:
40 Channel CB Transceiver
AM and PA (Public Address) modes
Cool Blue LED channel and frequency display
S/RF/SWR front panel meter
Build in SWR bridge and meter
Noise Blanker & Automatic Noise Limiter
Variable Talk Back monitor control
4 pin front panel mic jack
Stunning black chrome face and microphone
Real channel selector control
SRA-198NCA noise cancelling mic included
2 position dimmer switch
Roger beep (End of Transmission Beep)
Channel 19 button
Description
Technical Specifications :
GENERAL
Model TRE-936FFB
Channels 40
Frequency Range 26.965 ~ 27.405 MHz
Emission AM
Frequency Control Phase-Lock-loop (PLL) Synthesizer
Frequency Stability 0.00%
Temperature Range -30°C to +50°C
Antenna Impedance 50 Ohms
Antenna Connectors Standard SO-239 type
Input Voltage 13.8V DC

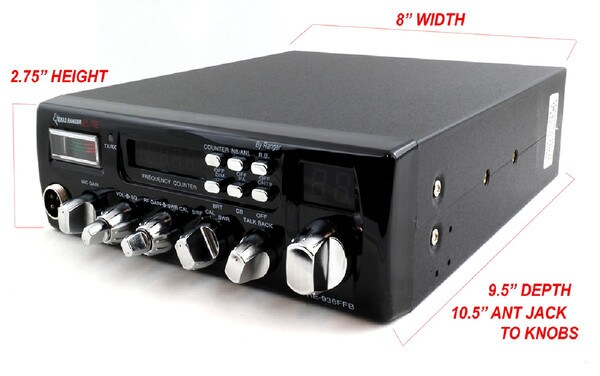

Size 7- 3/8” (W) x 8- 3/4” (D) x 2- 1/4” (H)
Weight 4.2 lbs.
TRANSMITTER
RF Power Output 4W
Spurious Emission -60 dB
Audio Distortion 10%
Frequency Response 300 to 2500 Hz
Microphone Dynamic
RECEIVER
Sensitivity for 10 dB (S+N)/N < 1.0 uV
Squelch Sensitivity < 0.5 uV
Image Rejection More than 65 dB
AGC Figure of Merit 100 mV for 10dB Change in Audio Output
Audio Power Output 3W @ 10% Distortion
Audio Response 300 to 2500 Hz
