STINGER 12.8" JEEP WRANGLER JL GLADIATOR GT WIRELESS CARPLAY & AUTO WATERPROOF OEM STYLE MOUNTING & VEHICLE CONTROLS ON SCREEN (SRX-JW18128)

Stinger introduces the latest innovation in the HORIZON lineup: the HORIZON12® Multimedia Infotainment Display System. This 12.8-inch Full HD 1920 x 1080 capacitive touchscreen, with a 16:9 aspect ratio, delivers stunning visuals.

HORIZON12 INTEGRATION & INSTALLATION KIT

Installation Dash Kit Features

• Enables on-screen gauges to monitor vehicle vitals such as battery voltage and coolant temp
• Enables off-road screen featuring pitch and roll
• Complete feature retention: warning chimes, steering wheel mounted radio controls, factory amplifier (if equipped)
• Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
• USB and HDMI flush mount connection ports
• Complete plug-and-play system: no vehicle modifications needed!

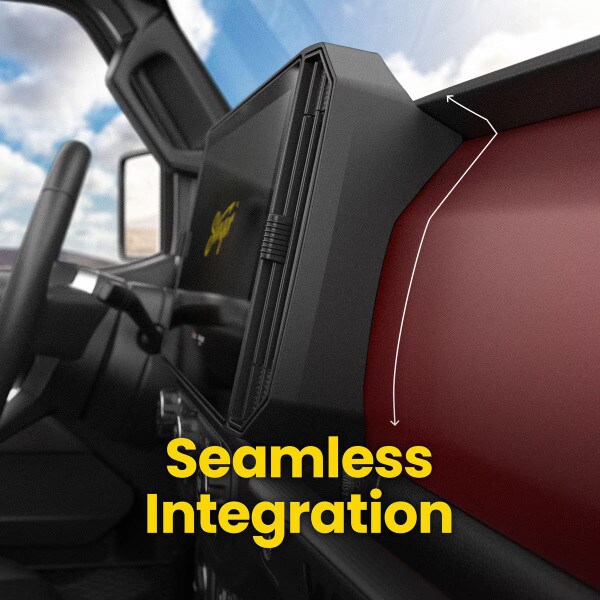

• Flush-mounted plastics for a seamless OEM experience

Kit includes everything needed for installation

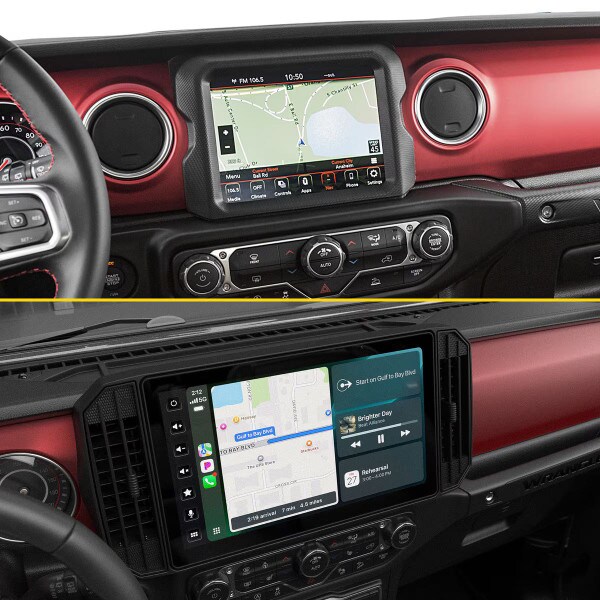

• Factory-matched radio mounting panels for HORIZON12
• CH1A-SRK RadioPRO for Jeep vehicles
• Complete plug-and-play installation harnesses
• Dash-mount USB and HDMI cable
• Adapters for satellite, AM/FM radio, and factory USB retention (if equipped)

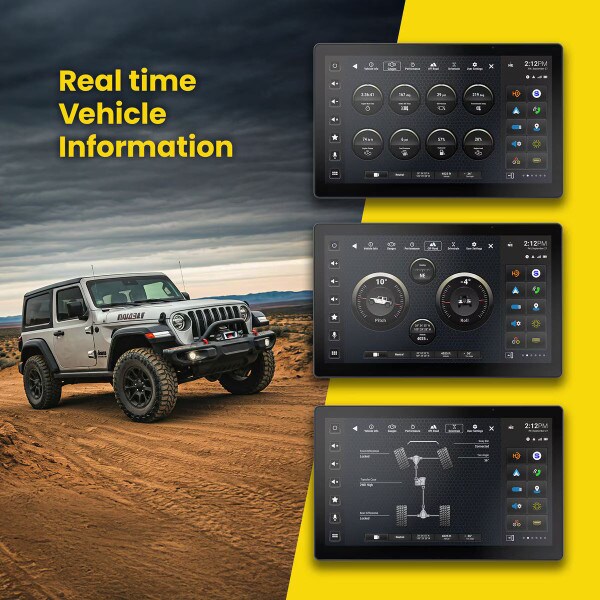

VEHICLE-SPECIFIC APPLICATION THAT ALLOWS USER CUSTOMIZATIONS

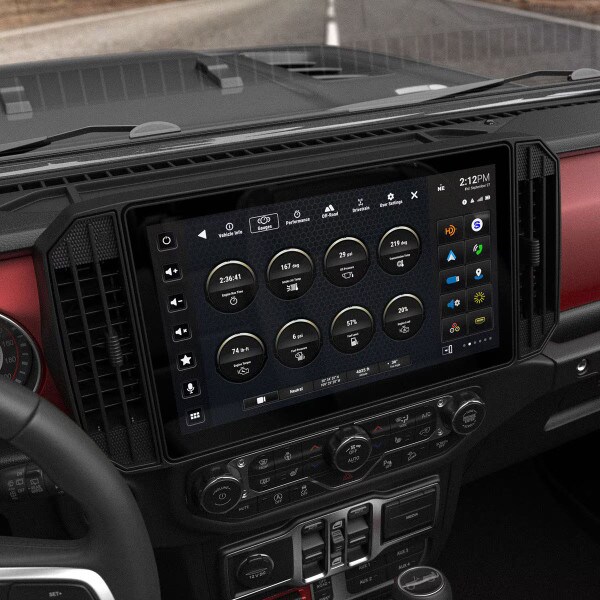

Vehicle Gauges*

• Eight gauges on screen, save up to 2 presets
• Battery Voltage
• Coolant Temperature
• Fuel Level

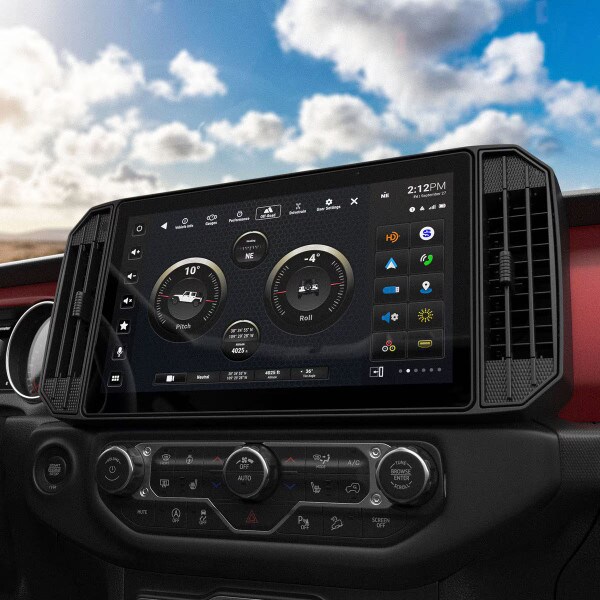

Vehicle Off-Road Screen

• Pitch
• Roll
• GPS coordinates
• Compass

Vehicle Drivetrain Screen

• Enhanced with Jeep off-road data including:
• Axle and sway bar status
• Steering angle
• Current position (latitude/longitude)
• Altitude

Vehicle Information Screen

• Tire pressure
• Current vehicle status - door open/closed
• View and clear check engine status
• Additional features
• Turn-signal trigger override (touch display)
• Millisecond adjustment on time correction
• Graphical audio settings (X-over, factory EQ)
• Gain adjustment on crossover
• EQ-band level indicator (pop-up)
• Camera identification icons
• Apple CarPlay and Android Auto
• RGB tuning for color-matching illumination

HORIZON12 MULTIMEDIA INFOTAINMENT DISPLAY SYSTEM

Display Features

• 12.8-inch, high-resolution capacitive touchscreen display with 16.7M colors
• Anti-glare, anti-reflective, and anti-fingerprint film protection
• Optically bonded screen for moisture and dust resistance
• Customizable and personalizable background with moveable Home screen icons
• IP65-rated touchscreen*

Audio Features

• 4.5Vrms, 8ch RCA audio outputs with subwoofer control
• Toslink (optical) audio output; 48kHz variable for clean, noise-free signals
• 15-band adjustable graphic EQ with 6 user EQ presets
• Built-in crossover with high-pass and low-pass filters (HPF and LPF)
• Built-in equalizer for detailed sound customization
• On-screen control of AudioControl’s DM Smart app for advanced tuning
• HD Radio support for enhanced audio quality
• Digital fiber optic output for audiophile-grade sound

Connectivity Features

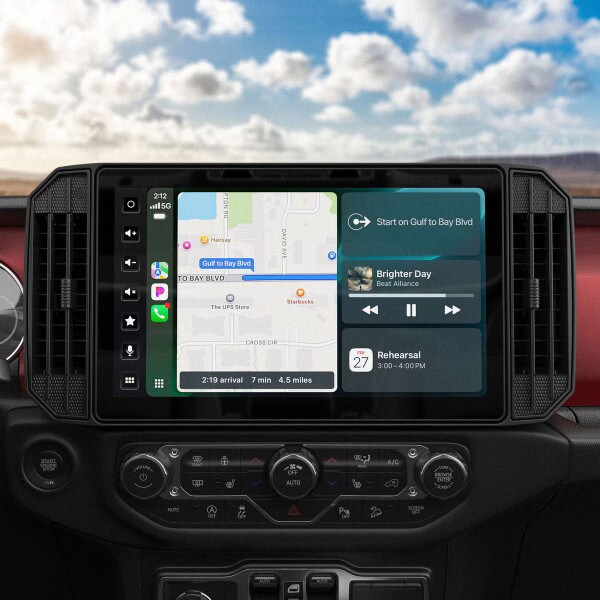

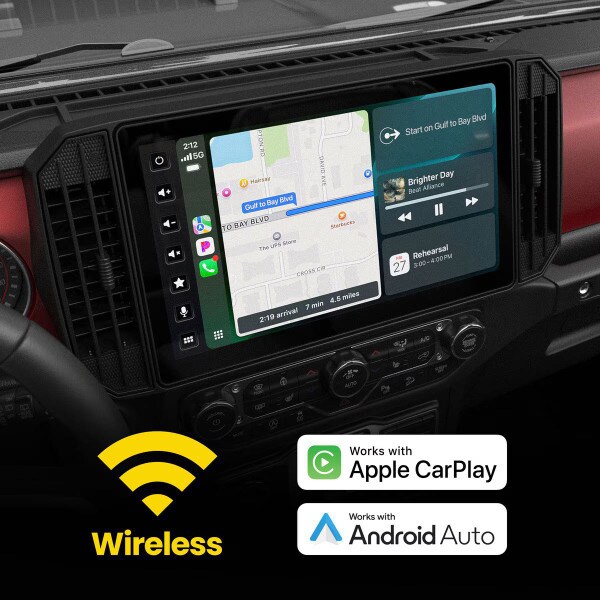

• Wireless and wired Apple CarPlay® and Google Android Auto™
• SiriusXM-Ready™ (tuner and subscription required)
• Hands-free Bluetooth® 5.1 for dual phone connections, calling, and music streaming
• 3 USB ports for charging and data input (2 USB-A, 1.5A output; 1 USB-C, 3A output)
• HDMI input for external audio/video playback from compatible devices
• Built-in microSD card slot for optional NextGen iGO navigation

Safety & Camera Features

• Display up to 4 safety cameras (sold separately) for enhanced visibility
• Selectable camera inputs for modes such as blind spot viewing, trailer towing, or standard rear view
• Rear camera audio input for RV camera microphone compatibility

Performance & Convenience Features

• Fast wake-up capability
• Customizable multi-zone user interface to combine preferred controls and widgets
• Packed with the latest technology for seamless media, safety, and audio integration

*Radio chassis is not IP-rated
*USB-C connection is required for wired CarPlay and Android Auto

ENHANCE YOUR EXPERIENCE WITH OUR COMPATIBLE PRODUCTS

Stinger ENLIGHT10 Lighting:
Illuminate your ride with dynamic LED lighting that enhances visibility and style. Control the ENLIGHT10 lighting directly on-screen for a seamless and personalized lighting experience.

AudioControl DM Series Processors & Amplifiers:
Take full advantage of on-screen control for AudioControl’s DM Series processors and amplifiers. Instantly tweak audio settings without needing a laptop or tablet, making customization effortless.

Accessory Control Using Optional SwitchHub (SPXSH440):
Manage up to 4 accessories directly from your HORIZON12 screen. No need for additional switches—gain convenient control with a sleek, integrated interface.

Echomaster AHD Cameras:
Upgrade to Echomaster’s AHD cameras for superior resolution (720p standard HD) compared to traditional CVBS cameras (480p). Improve safety and visibility with advanced camera technology compatible with the HORIZON12.

*The following gauges are only available for vehicle years 2012+ when data is present:
Engine Oil Pressure, Engine Oil Temperature
*Transmission Temperature only available with automatic transmission
Transmission Temp shows N/A when in Park and Neutral
Due to continual development, features and specifications are subject to change.
