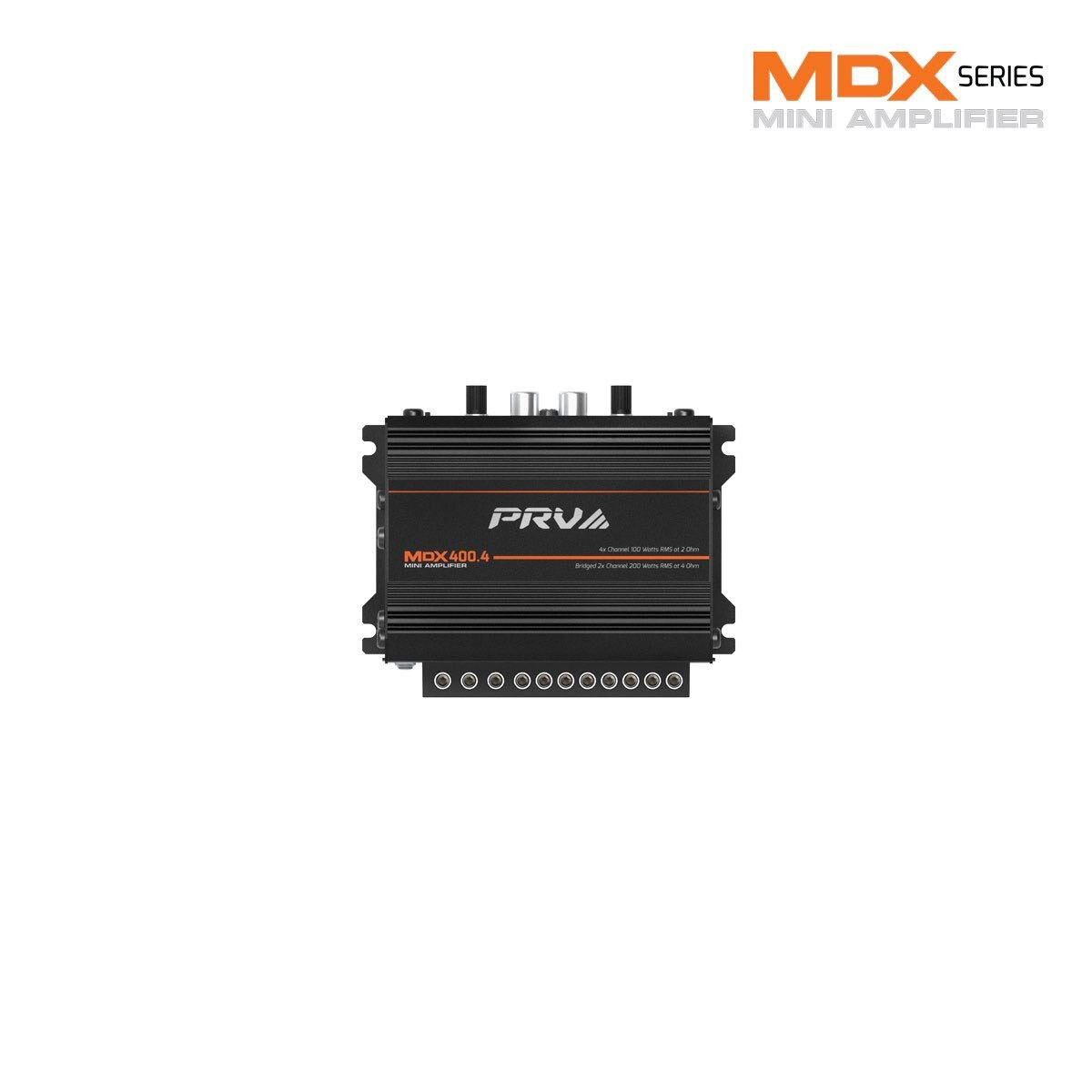

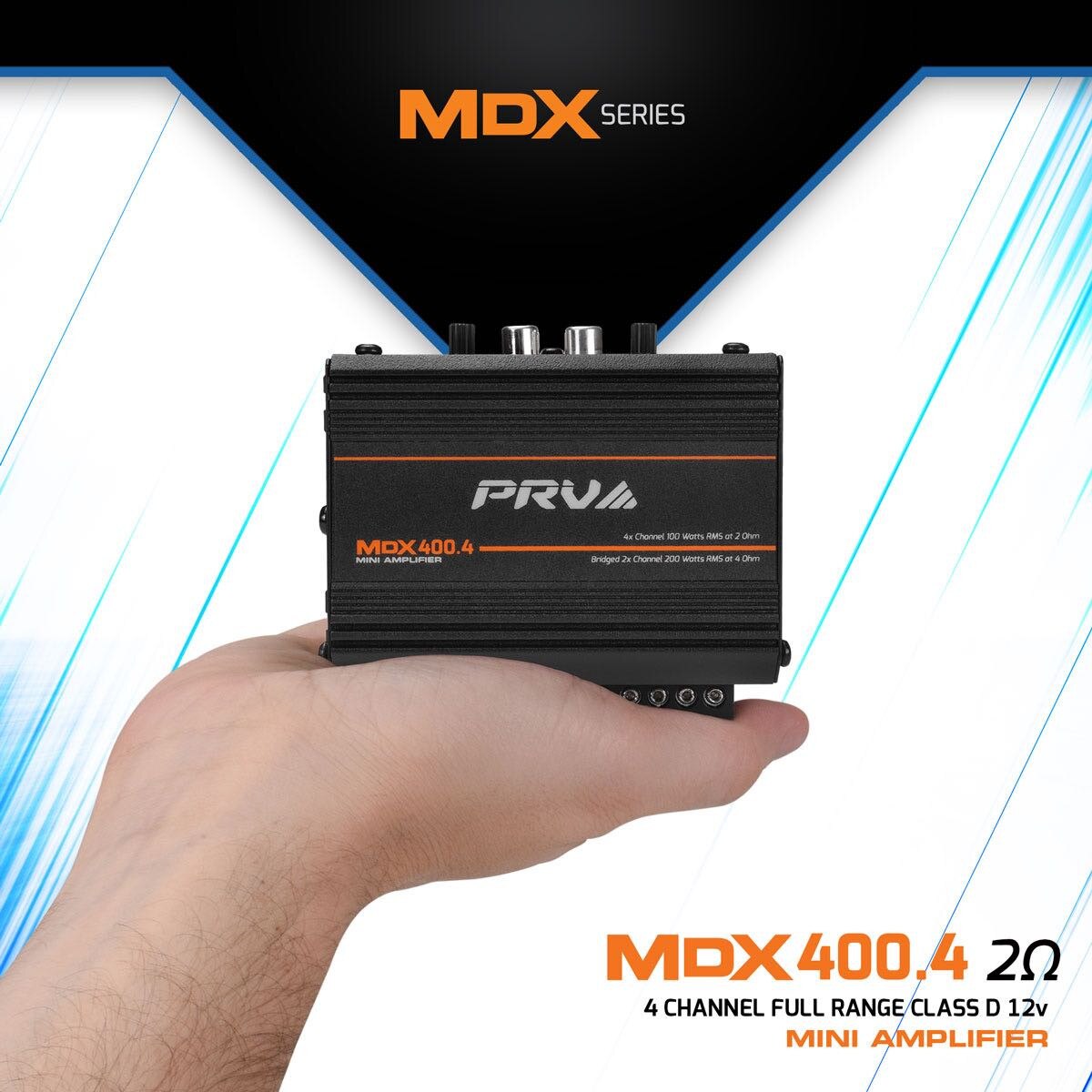

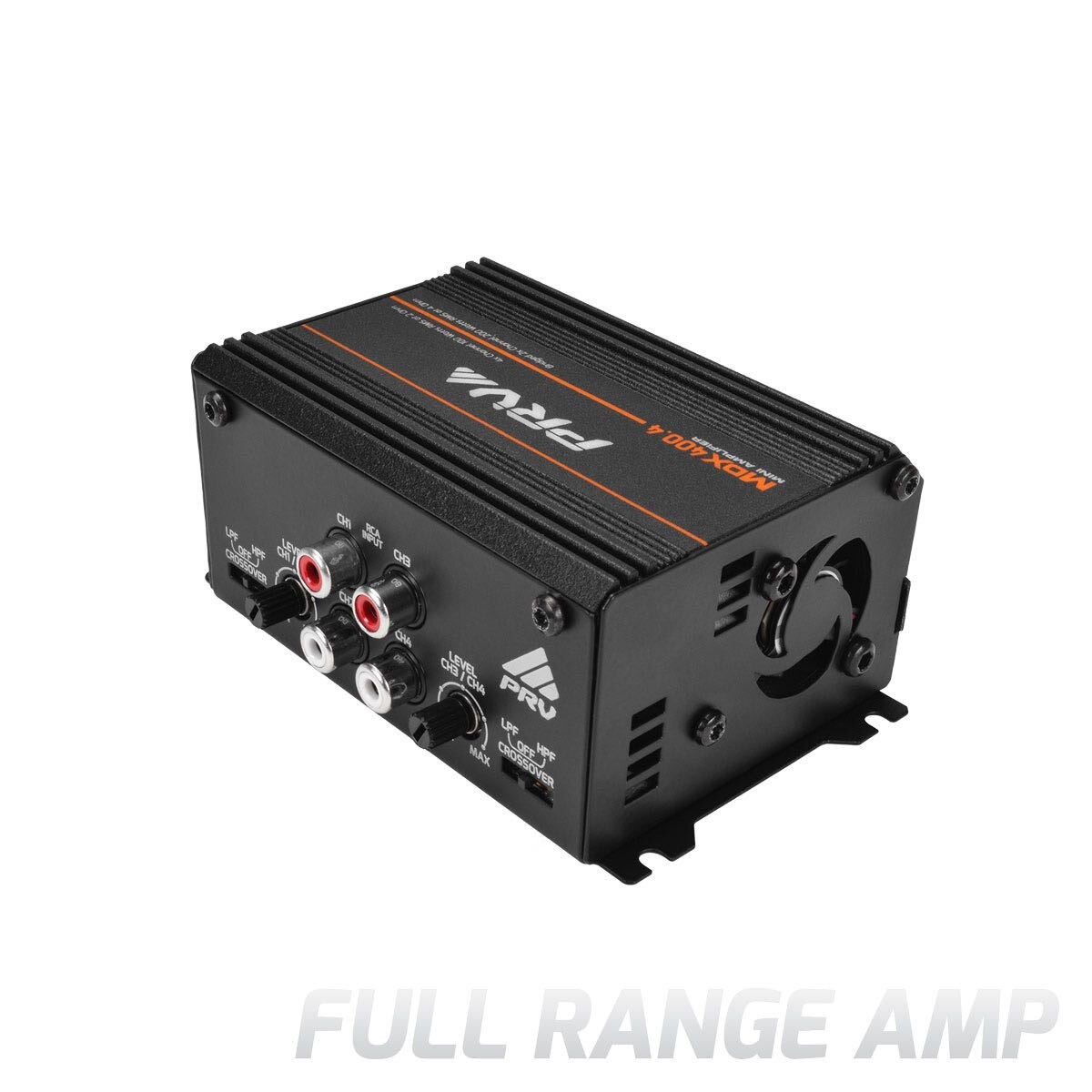

PRV AUDIO - ULTRA COMPACT 4 CHANNEL 400 WATT RMS AMP (MDX400.4 2 OHM)

4 channel full range amplifier
Digital Class D
Bridgeable to 2 channels for doubled output
Supports 2, 3, or 4 channel configurations

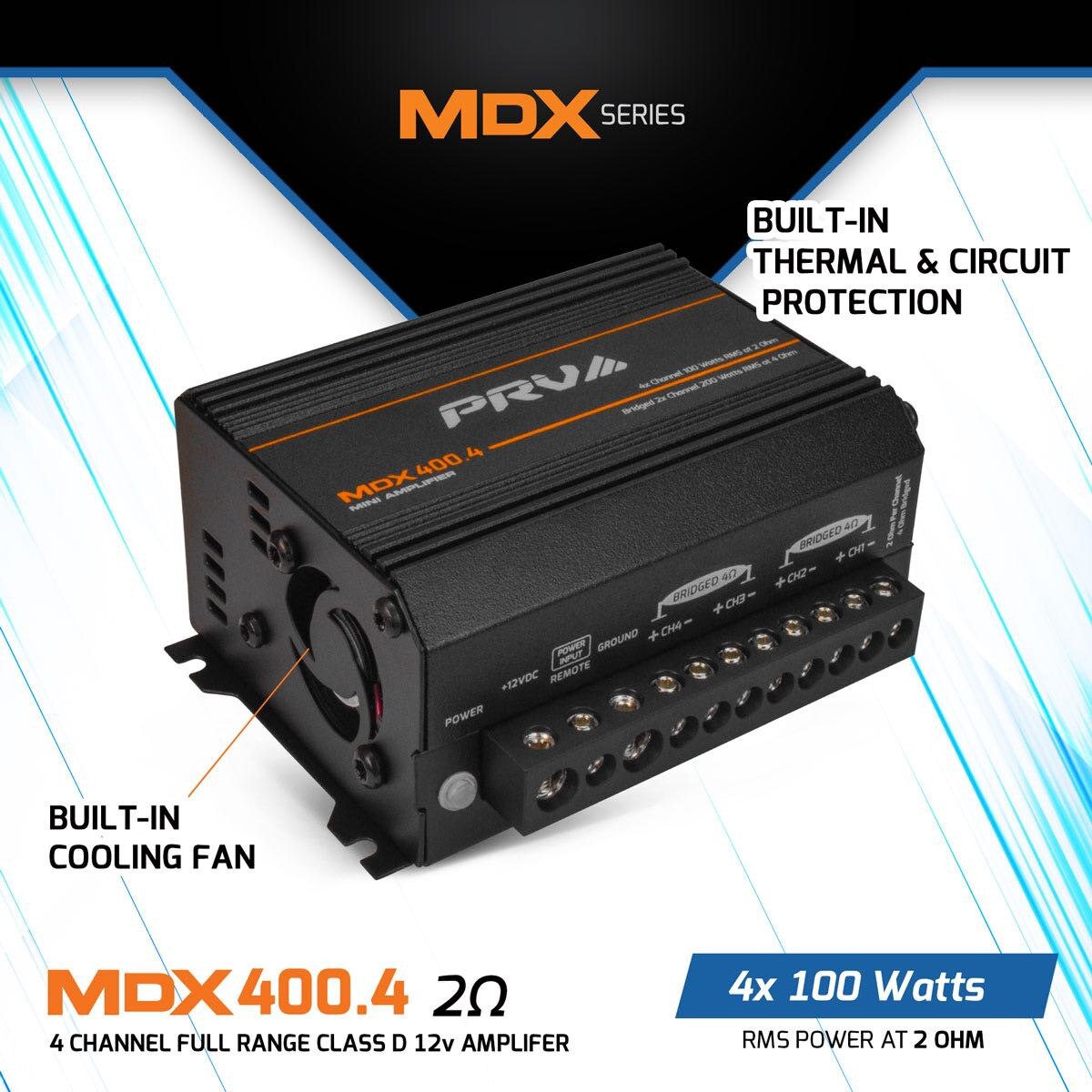

Built-in cooling fan
Surface mount component construction
Application: car stereo, custom motorcycles, powerwheels, ATVs, Slingshots

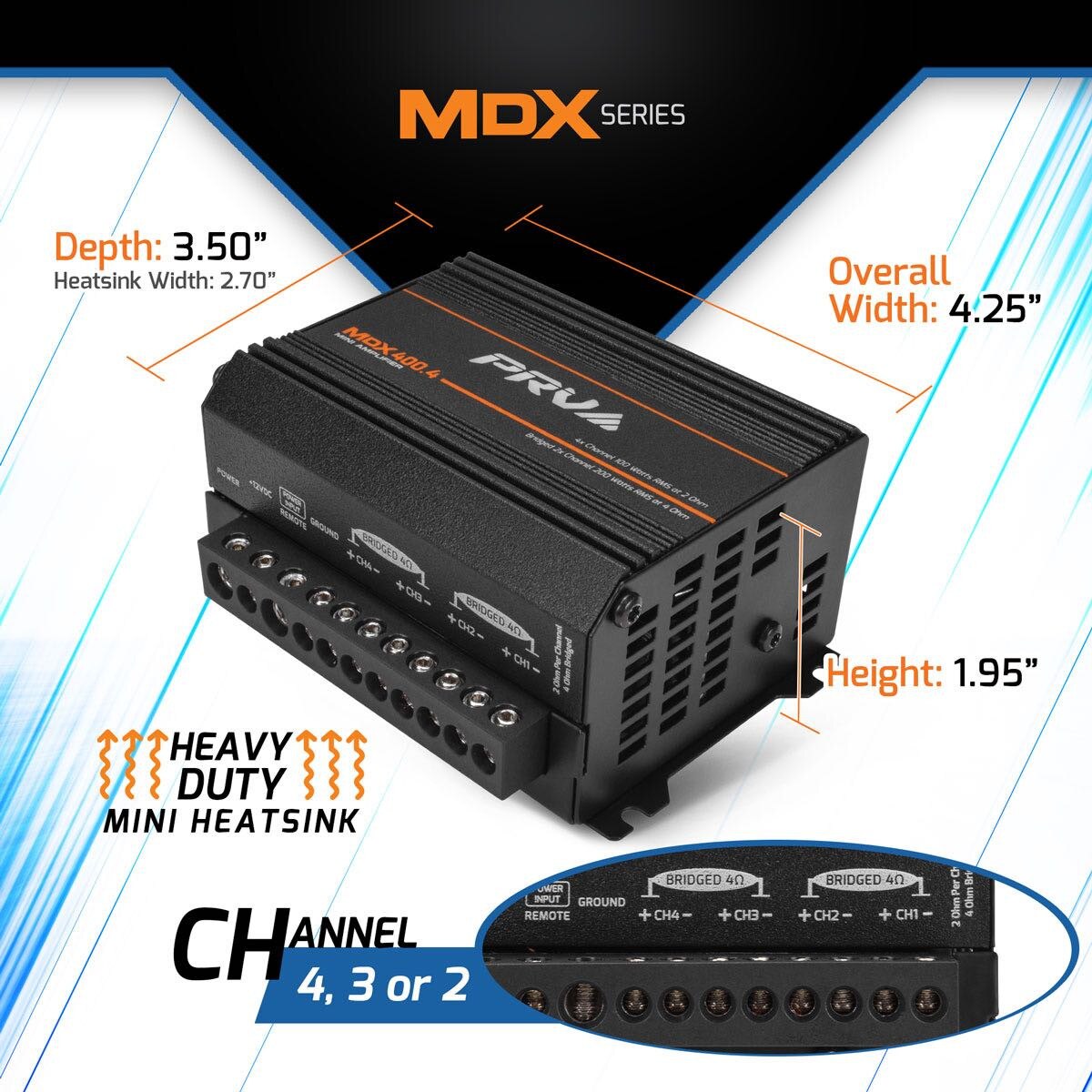

Dimensions (W x D x H): 4.25" x 3.50" x 1.95"
Weight: 0.87 lbs
RMS power at 14.0 V at 2 Ohm: 4x 100 Watts
RMS power at 14.0 V at 4 Ohm: 4x 70 Watts
Bridged RMS power at 14.0 V at 4 Ohm: 2x 200 Watts
Average efficiency: 84%
Operating voltage: 9 to 16 V
Musical current draw: 20 A
Heat sink: mini heavy duty cast aluminum
Compact footprint for installation in vehicles, motorcycles, and 4-wheelers
Channels: 4
Impedance: 2 Ohm per channel
Built-in crossover: fixed HPF and LPF at 80 Hz
Frequency response (-3dB): 10 Hz to 20,000 Hz
Minimum input sensitivity for max output: 0.2 to 2V
Signal input: RCA cables
Signal to noise: greater than 90 dB
Protection system: high temperature and short circuit on output
Minimum power wire input (OFC): 8 gauge
Minimum speaker wire output: 16 gauge
Recommended fuse: 25A, 12 inches from battery
Minimum installation distance between amplifiers: 1.25"
Not compatible with copper-clad aluminum (CCAW) wire
Warranty: 1 year against manufacturer defects
