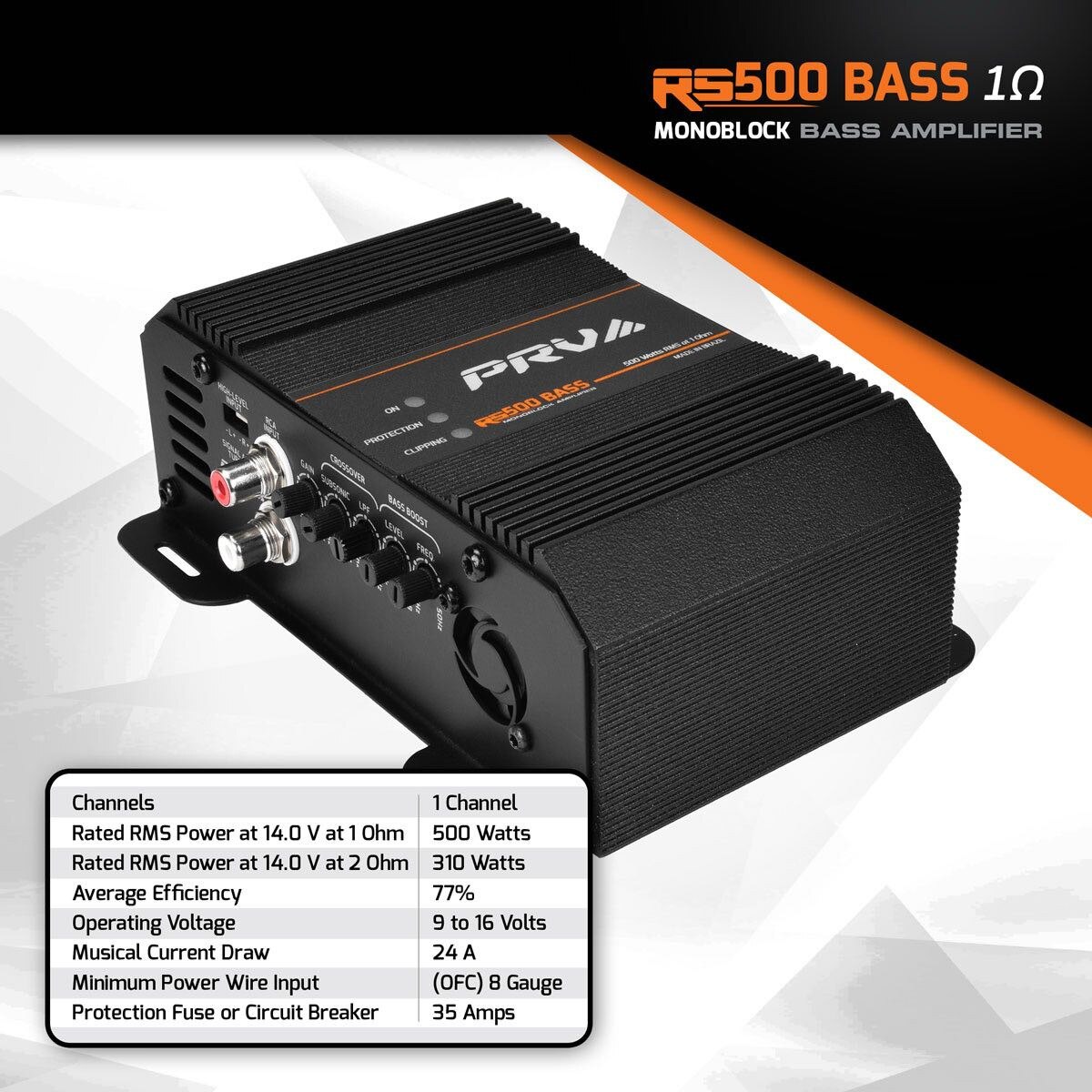

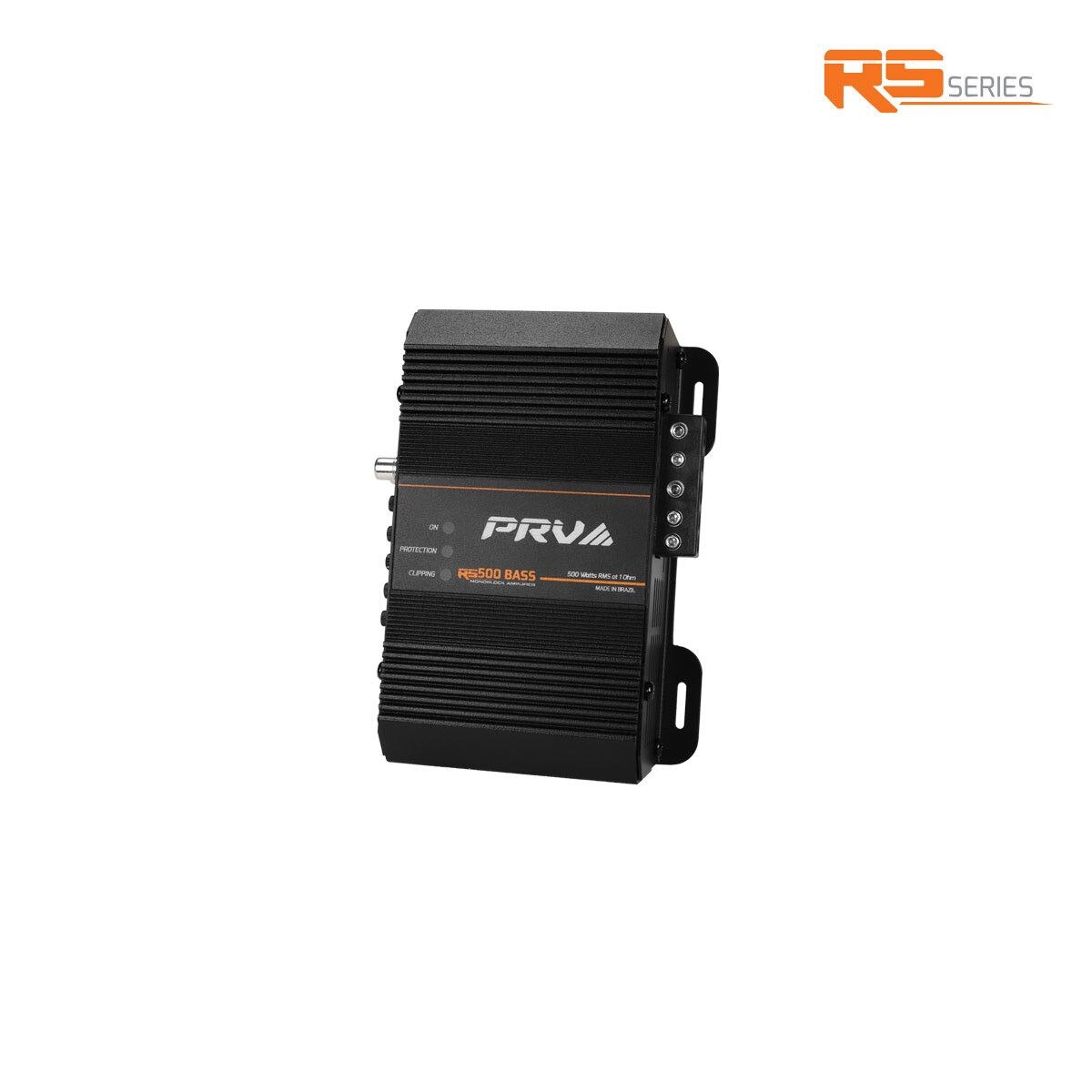

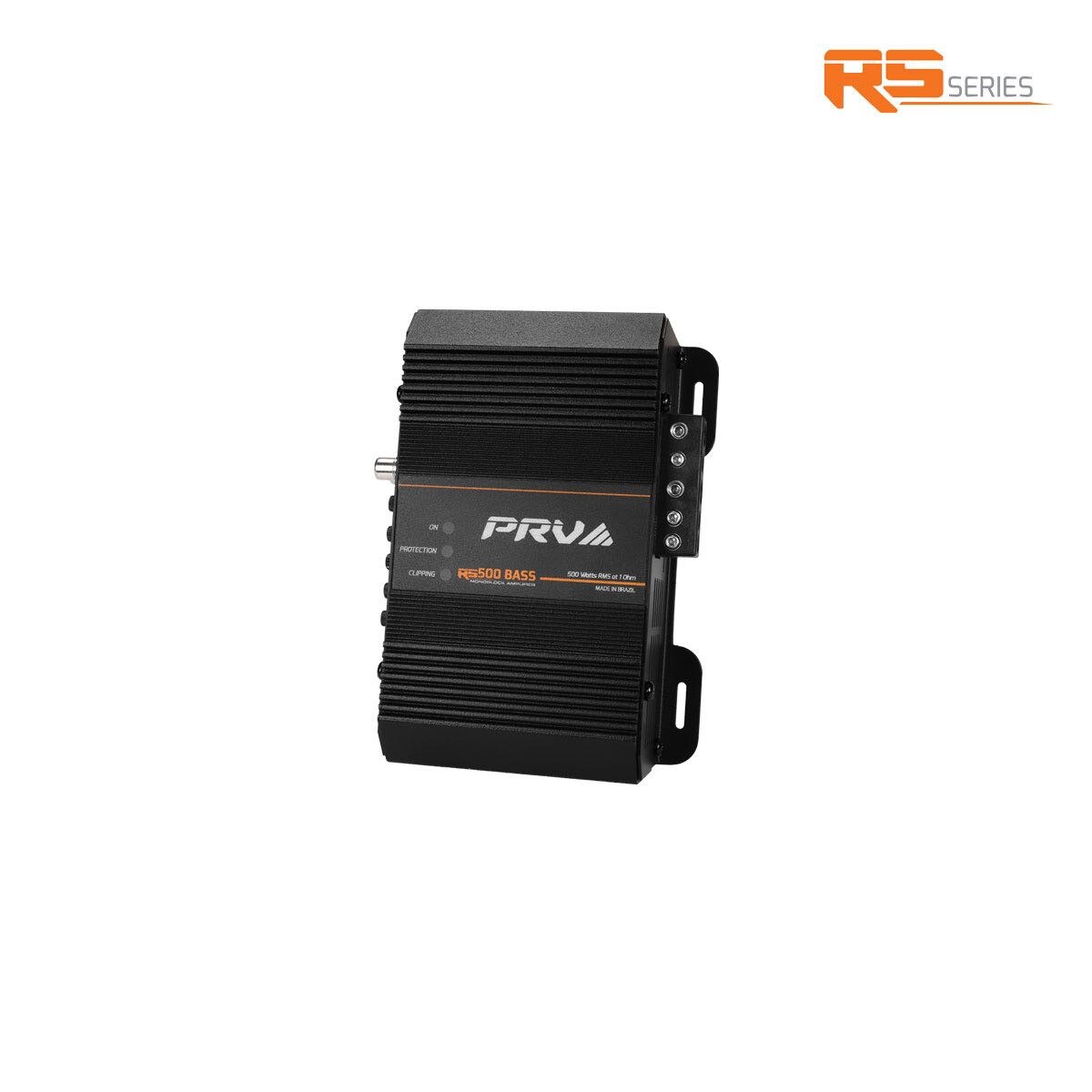

PRV AUDIO - 500 WATT MONO BLOCK CAR AUDIO AMPLIFIER 1 OHM (RS500 BASS 1 OHM)

Class-D monoblock amplifier designed specifically for bass applications

Rated RMS power: 500 Watts at 1 Ohm

1-channel mono configuration

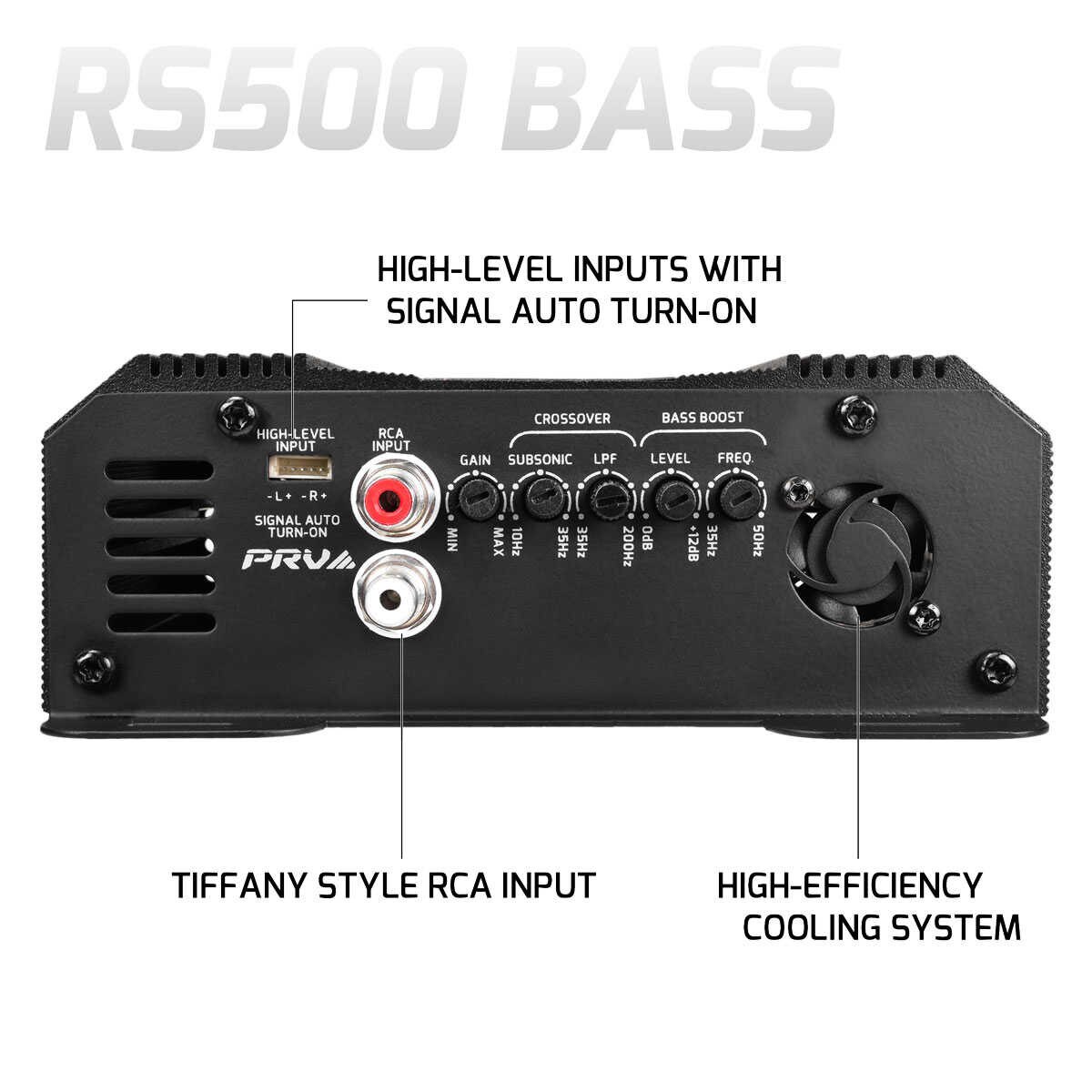

Built-in bass boost level control from 0 to +12 dB

Variable bass boost frequency control from 35 Hz to 50 Hz

Subsonic filter and low-pass filter for customizable frequency shaping

Intelligent 4-way protection circuitry with clip LED indicator

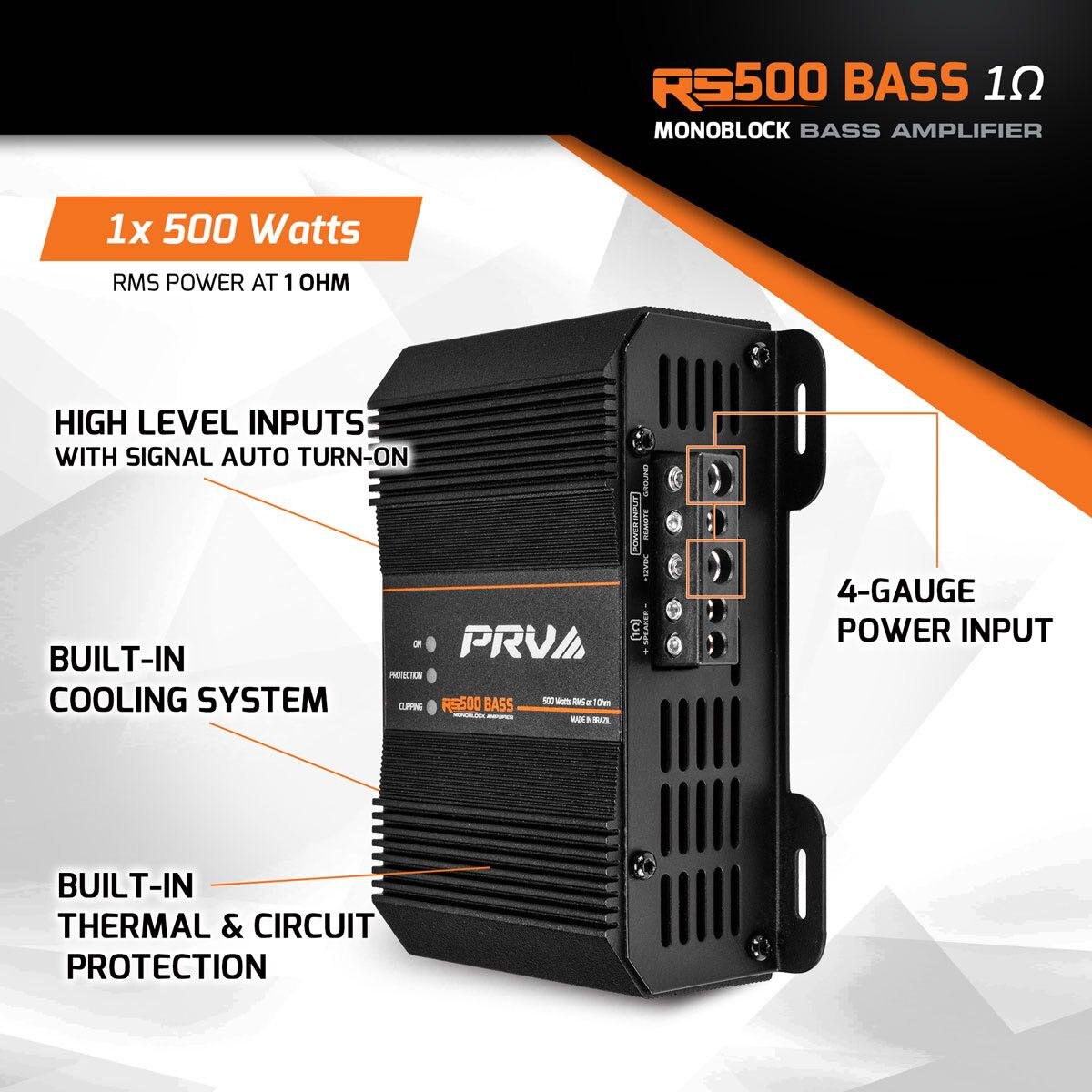

High-level speaker input with auto signal sensing turn-on

Heavy-duty cast aluminum heatsink with built-in cooling fan

Tiffany-style vibration-resistant RCA inputs

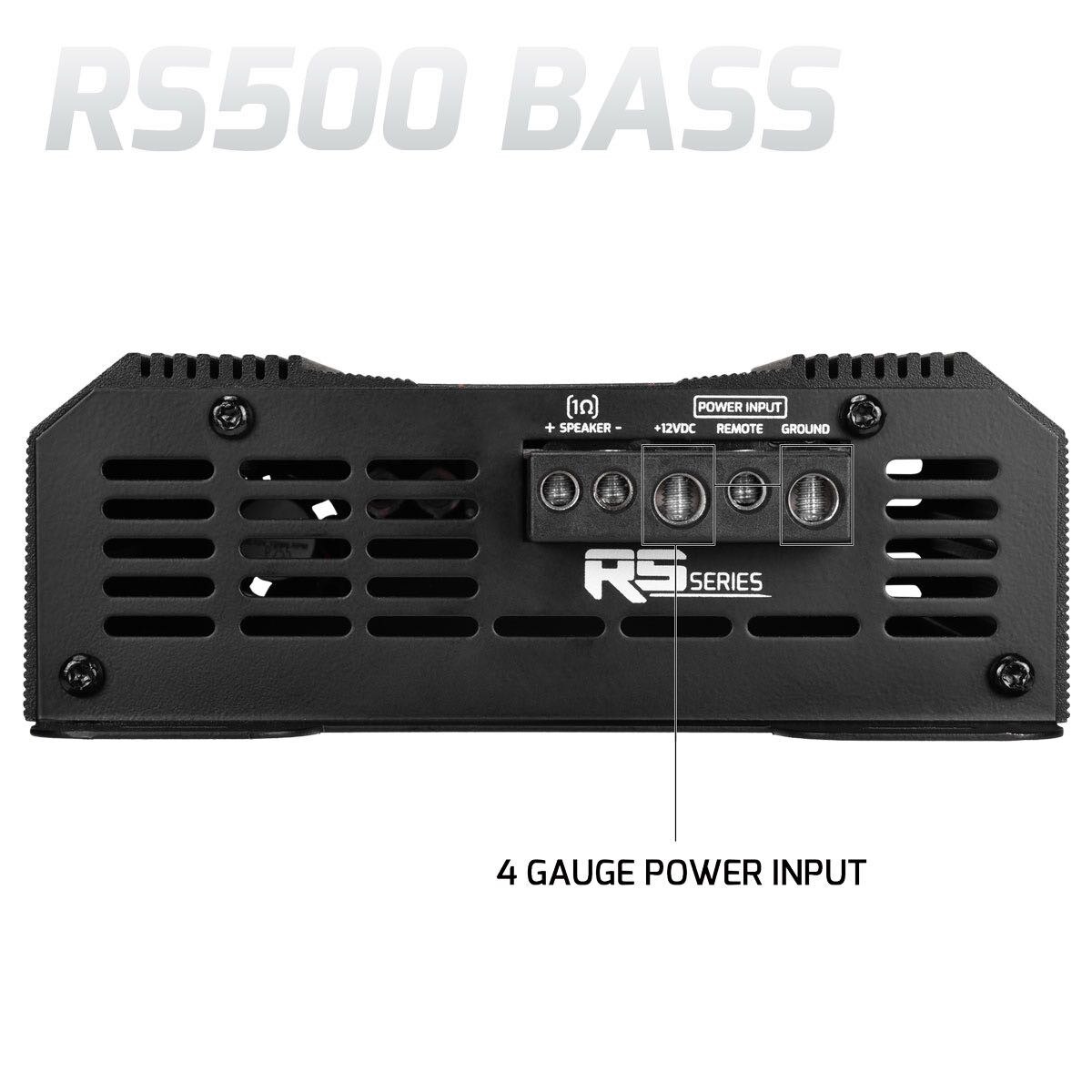

4 gauge power input terminals

10 gauge speaker output terminals

Operating voltage range: 9 – 16 Volts

Frequency response: approximately 10 – 200 Hz

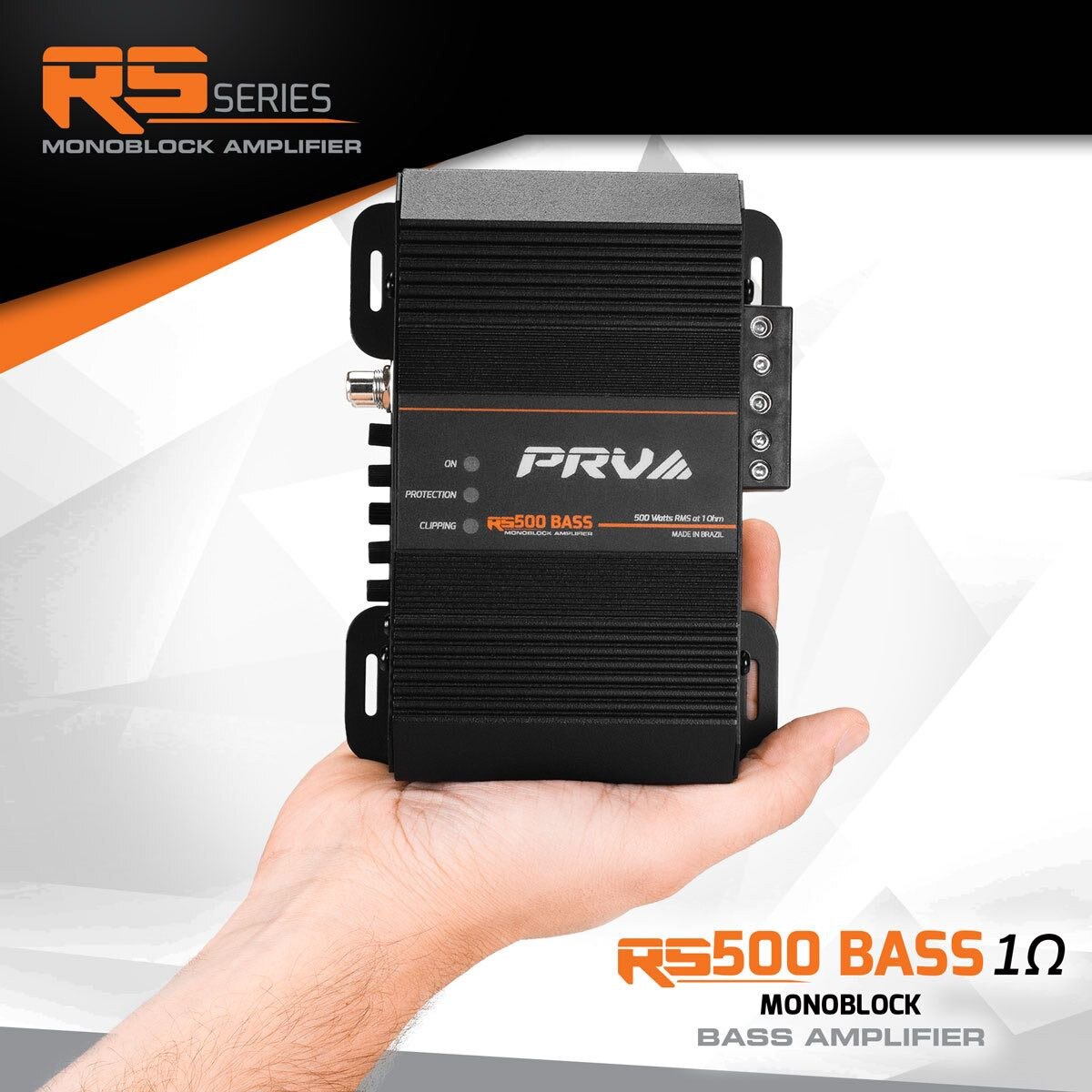

Compact chassis design

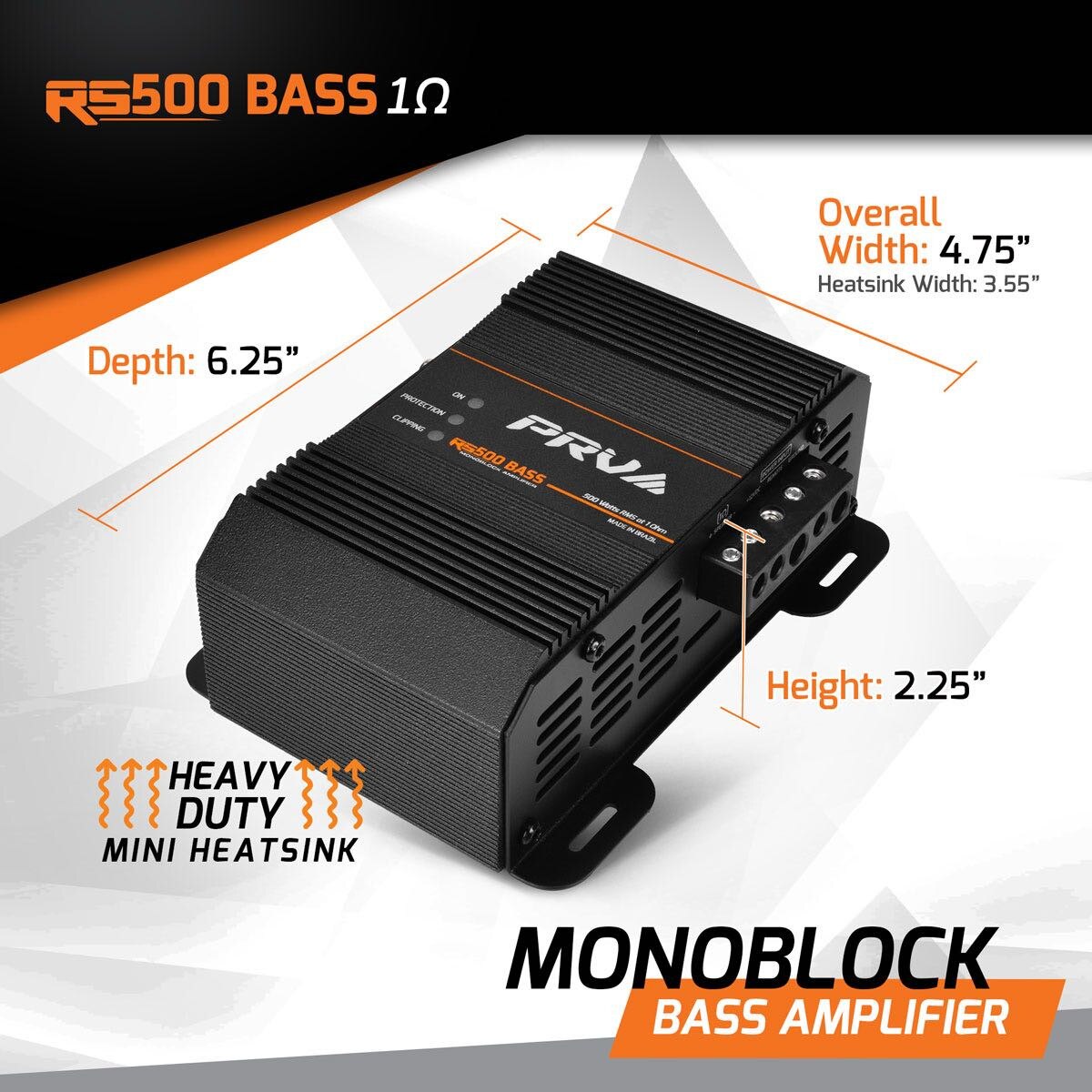

Dimensions: 4.75″ W × 6.25″ D × 2.25″ H

Lightweight chassis (approximately 2 lbs)

High capacitance reserve energy storage for consistent bass output
