PRV AUDIO - 3" X 3" EASY MOUNT 240 WATT 4 OHM PAIR PACKED TWEETERS (TW350TI-4)
/TW350TI-4_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/TW350TI-4_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
/TW350TI-4_media_03.jpg?resizeid=3&resizeh=600&resizew=600)
/TW350TI-4_media_04.jpg?resizeid=3&resizeh=600&resizew=600)
/TW350TI-4_media_05.jpg?resizeid=3&resizeh=600&resizew=600)
/TW350TI-4_media_06.jpg?resizeid=3&resizeh=600&resizew=600)
Details
• Nominal impedance: 4 Ohm
• Nominal power handling: 60 Watts
• Continuous program power (RMS): 120 Watts
• Max peak power: 240 Watts
• Sensitivity (2.00V at 1m): 105 dB
• Recommended hi-pass crossover: 5000 Hz, 12 dB per octave
• Frequency response (-10 dB): 4,500 – 20,000 Hz
• Voice coil diameter: 1.0” (25 mm)
• Voice coil wire: CCAW
• Voice coil former material: Kapton
• Diaphragm material: Titanium
• Flux density: 1.30 T
• Magnet material: Ferrite

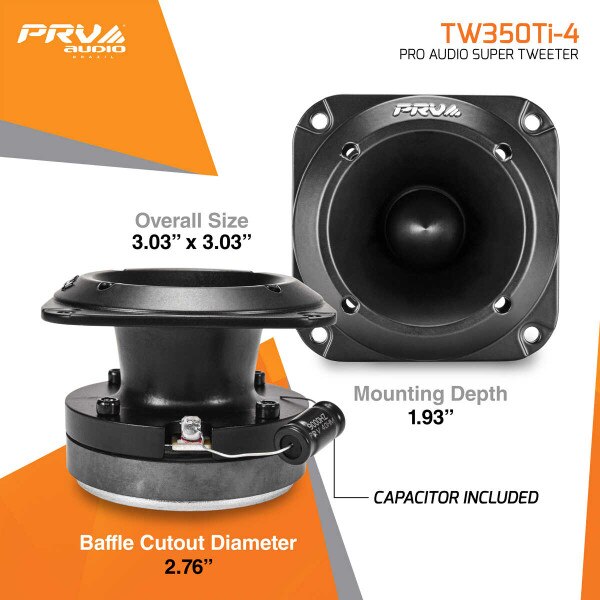

• Overall depth: 2.28” (58 mm)
• Mounting depth: 1.93” (49 mm)
• Overall width: 3.03” (77 mm)
• Overall height: 3.03” (77 mm)
• Cutout diameter: 2.76” (70 mm)
• Net weight: 1.0 lbs (0.45 kg)
• Shipping weight (pair): 2.55 lbs (1.1 kg)
• Carton dimensions (W x L x H): 7.00” x 3.75” x 3.00”
