PRV AUDIO 10" MOTO SERIES 10" WOOFER OPTIMIZED FOR COMPACT ENCLOSURES SADDLEBAGS (MT10W1200-NDY-4)

Moto Series MT10W1200-NDY-4 has been engineered to give your custom motorcycle saddlebags the ultimate low-frequency midbass response, considering the tough environment on the roads.

PRV Audio is proud to present our new MOTO Series (MT), a high-performance PRO audio line dedicated to motorsports installations, focused on bringing you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.

• Optimized for use in compact enclosures, this mid is ideal for motorcycle saddlebags
• 1,200 watts RMS power makes high acoustical output

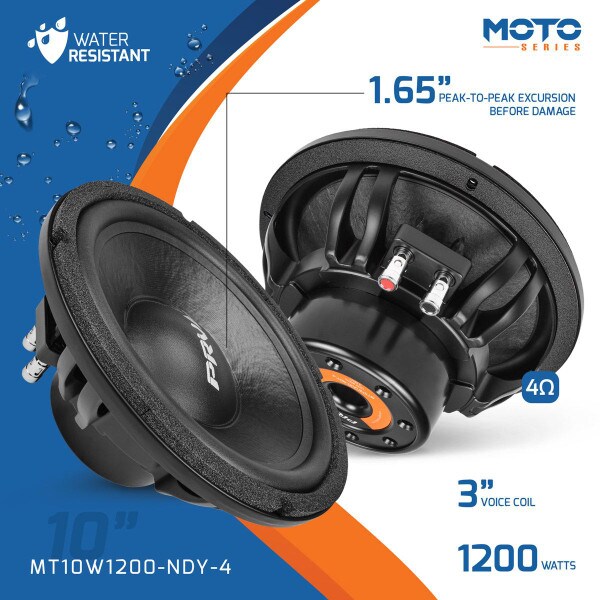

• Rubber Surround allows a generous 1.65″ peak-to-peak excursion
• Powerful neodymium magnet structure features distortion-canceling fixtures
• Fast transient response, deep low tones, and dynamic mid-bass
• Weather-resistant paper cone and dust cap with true PRO audio midbass performance

The MT10W1200-NDY-4 sets new performance standards that combine durability, efficiency, and maximum displacement into a great-looking midbass speaker that will deliver the deepest low-frequency response with power and authority.


Custom tooled surround allows long throw while maximizing cone surface area, to get superior fidelity and high efficiency!

The special composite cone is built with non-pressed paper for reduced break-up and treated to be water resistant, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker, with a generous 1.65″ peak-to-peak excursion before the damage.

Extensive motor venting cools the voice coil enabling high-power handling with low-power compression. The large 3″ voice coil allows for 1200 Watts of Amplifier RMS Power and warrants the outstanding cooling system implemented into the motor.

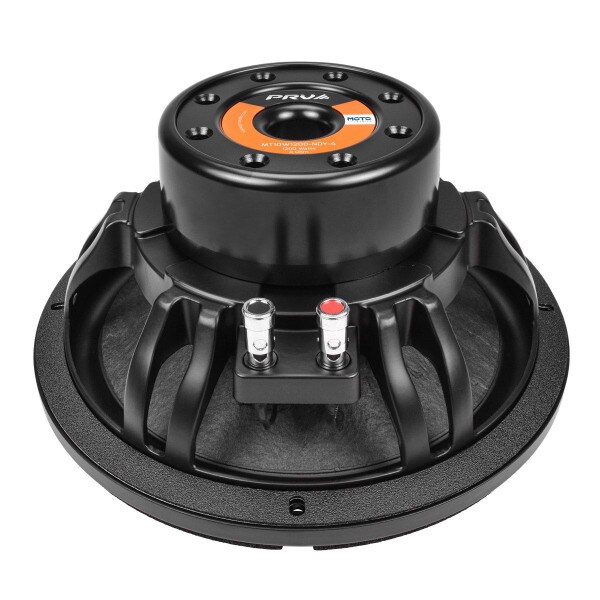

Its powerful optimized neodymium motor is vented to provide excellent cooling for its voice coil. This neo magnet also helps decrease the weight on the speaker compared to a ferrite magnet motor. This compact design will fit and sound great on any saddlebag that has about 1 cubic foot.

Able to stand up to the use and abuse on bike sound competitions its 3″ voice coil wound inside-outside on a fiberglass former features a generous 18 mm winding length for extended Xmax and less distortion.

High sensitivity rating of 97 dB 1W/1M, which makes it capable of generating a lot of output!



Nominal Diameter	10″ (254 mm)
Nominal impedance	4 Ohms
Nominal Power Handling	600 Watts
Continuous Program Power (RMS)	1200 Watts
Max Peak Power	2400 Watts
Sensitivity 2.00V at 1m	97.0 dB
Recommended Hi Pass Crossover* *For Full Power Handling	65 Hz* *12db Per Octave Crossover
Frequency Response	40 – 4,000 Hz
Voice Coil Diameter	3″ (76 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	18.0 mm
Former Material	Glass Fiber
Magnetic Gap Depth	10.0 mm
Frame Material	Die Cast Aluminum



THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	41.24 l
Excursion (mathematical)***	Xmax	6.5 mm
Free Air Resonance	Fs	46.9 Hz
Mechanical Factor	Qms	7.94
Electrical Factor	Qes	0.31
Total Factor	Qts	0.30
Cone Area	Sd	373 cm²
Mechanical Mass	Mms	54.1 g
Bl Factor	Bl	12.29 Tm
Dc Resistance	Re	3.0 Ohms
Inductance	Le	0.376 mH at 1 kHz
Mechanical Mass Without Air	Mmd	50.0 g
Mechanical Compliance	Cms	0.212 mm/N



EXTRA INFO

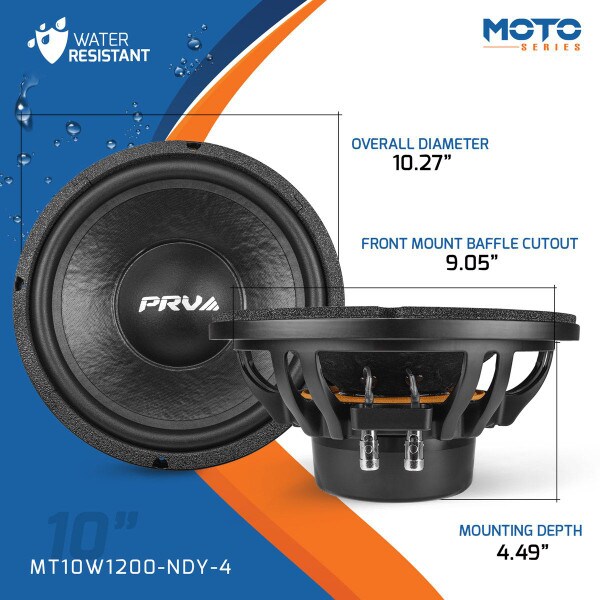

Overall Diameter	10.27” (261 mm)
Front Mount Baffle Cutout	9.05” (230 mm)
Mounting Depth	4.49” (114 mm)
Overall Depth	5.00” (127 mm)
Net Weight	8.38 Lbs (3.8 kg)
Shipping Weight	9.70 Lbs (4.4 kg)
Carton Dimensions W x L x H	11.2”x 11.2” x 5.71” (285 x 285 x 145 mm)

MT10W1200-NDY-4 DATASHEET

1-Year Manufacturers Warranty, Blown Diaphragm, Blown Woofers, Amplifiers With Issues Of Not Receiving Enough Amperage Are Not Covered Under Warranty. You will need to buy the diaphragm or recone kit, PRV can replace for you at a cost. Amps will have to be repaired at the customer's expense. If the product is an actual manufacturer's defect, it will be covered under warranty at no cost.
