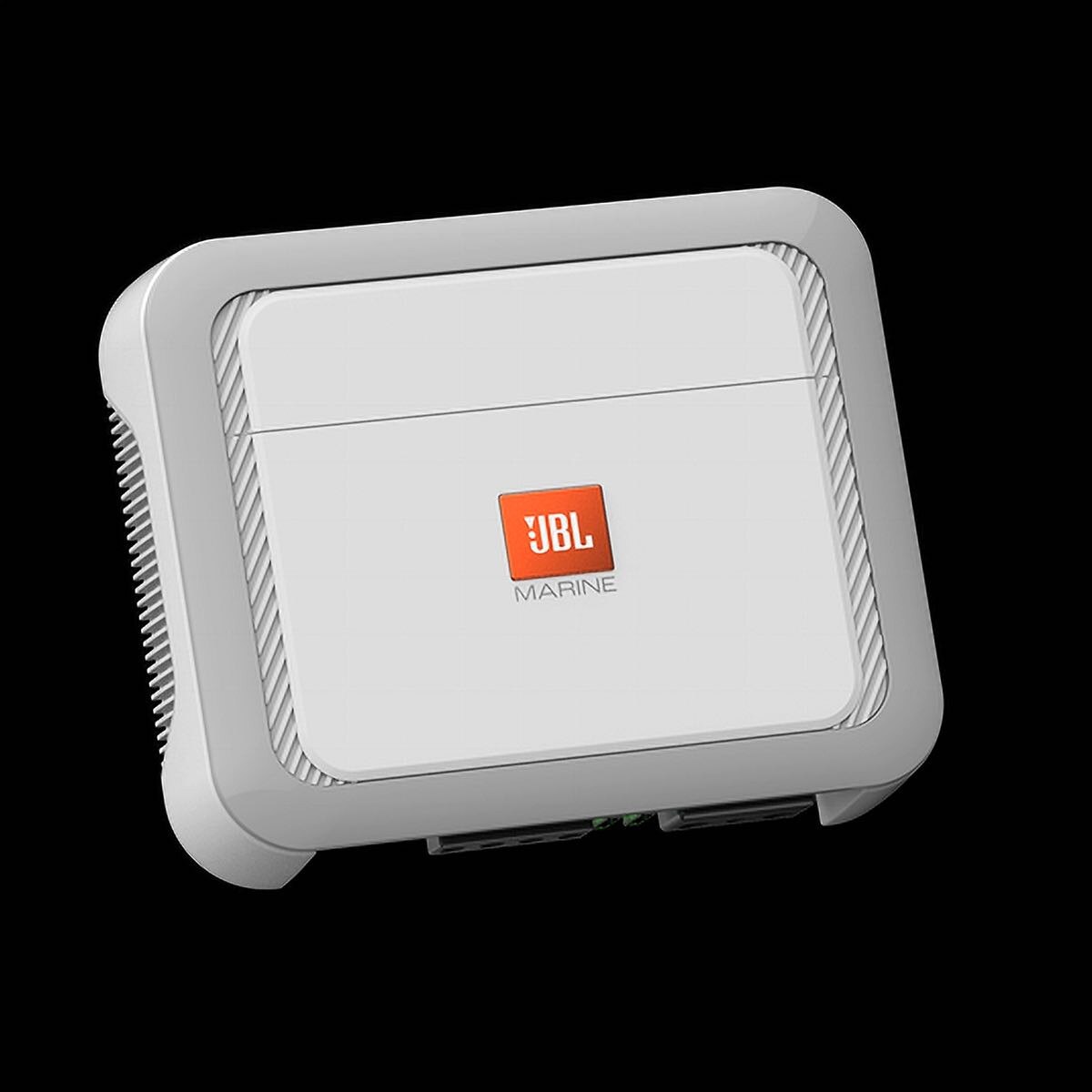

JBL 1200 WATT MAX MONO MARINE AMPLIFIER (JBLMA600AM)

600 watts RMS x 1 at 2 ohms

350 watts RMS x 1 at 4 ohms

Class D amplifier design for high output and low current draw

Mono subwoofer amplifier for marine audio systems

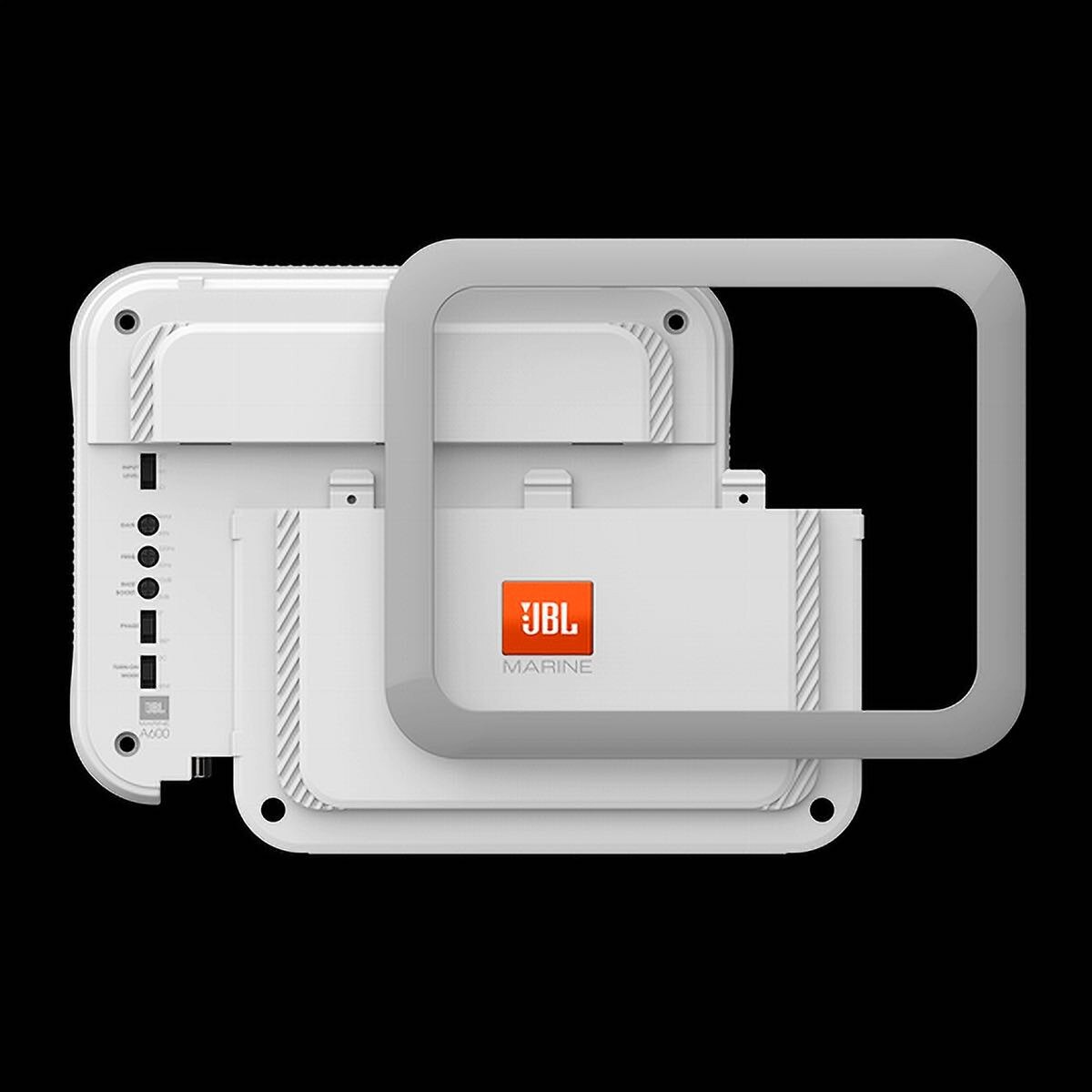

Compact low-profile chassis for tight installation spaces

Variable low-pass crossover: 32 Hz – 320 Hz

Variable bass boost: 0–12 dB at 45 Hz

Phase switch: 0° / 180°

Input sensitivity: 200 mVrms – 4 Vrms (low-level), 1 Vrms – 22 Vrms (high-level)

Balanced differential inputs for low noise and distortion

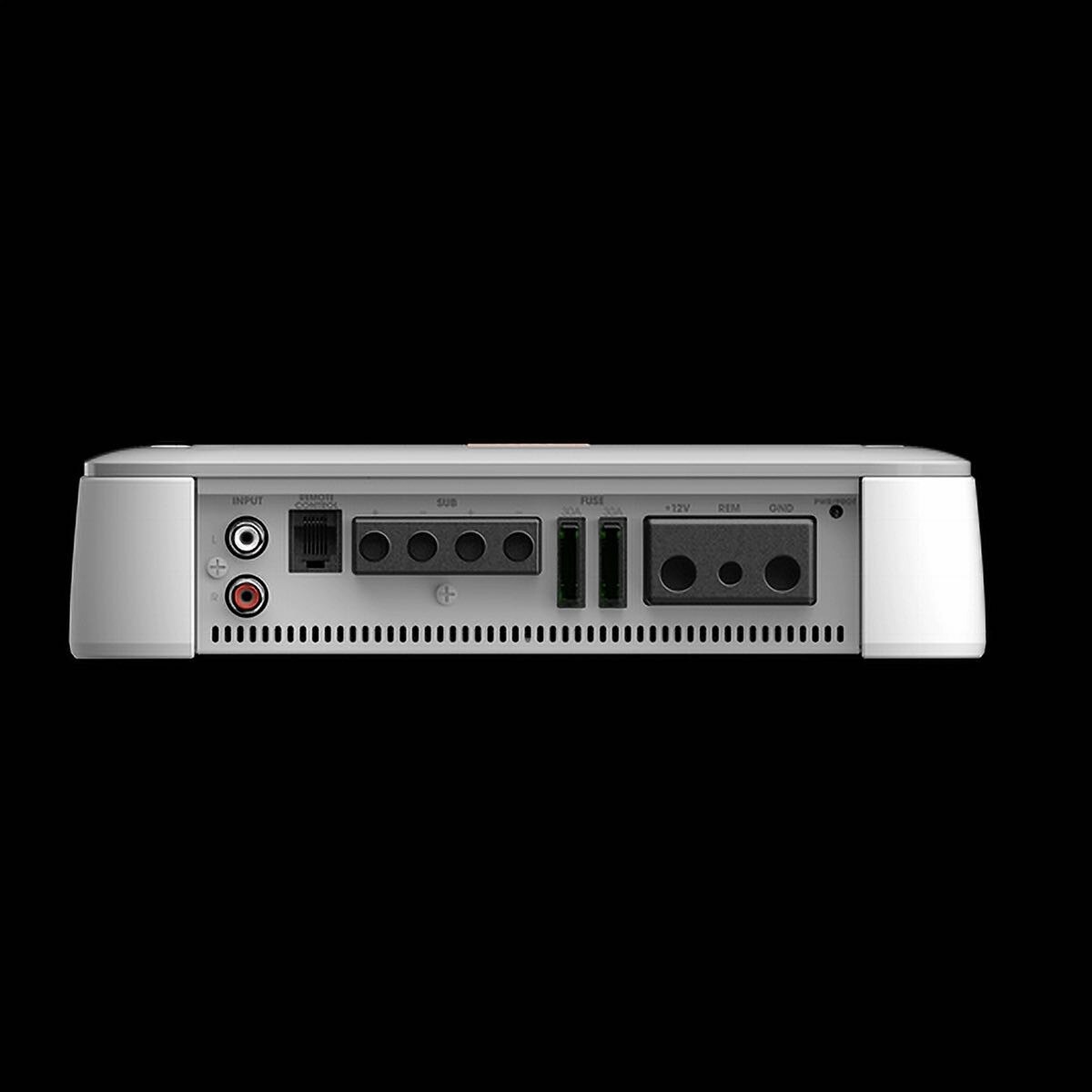

High-level and low-level inputs for system integration

Full onboard protection against shorts, temperature, overvoltage and undervoltage

Selectable turn-on mode (DC or REM)

Input level control for signal adjustment

RBC wired remote for bass level control

LED protection indicator

8-gauge power and ground leads recommended (not included)

Dimensions: 220 mm x 51.3 mm x 180 mm
