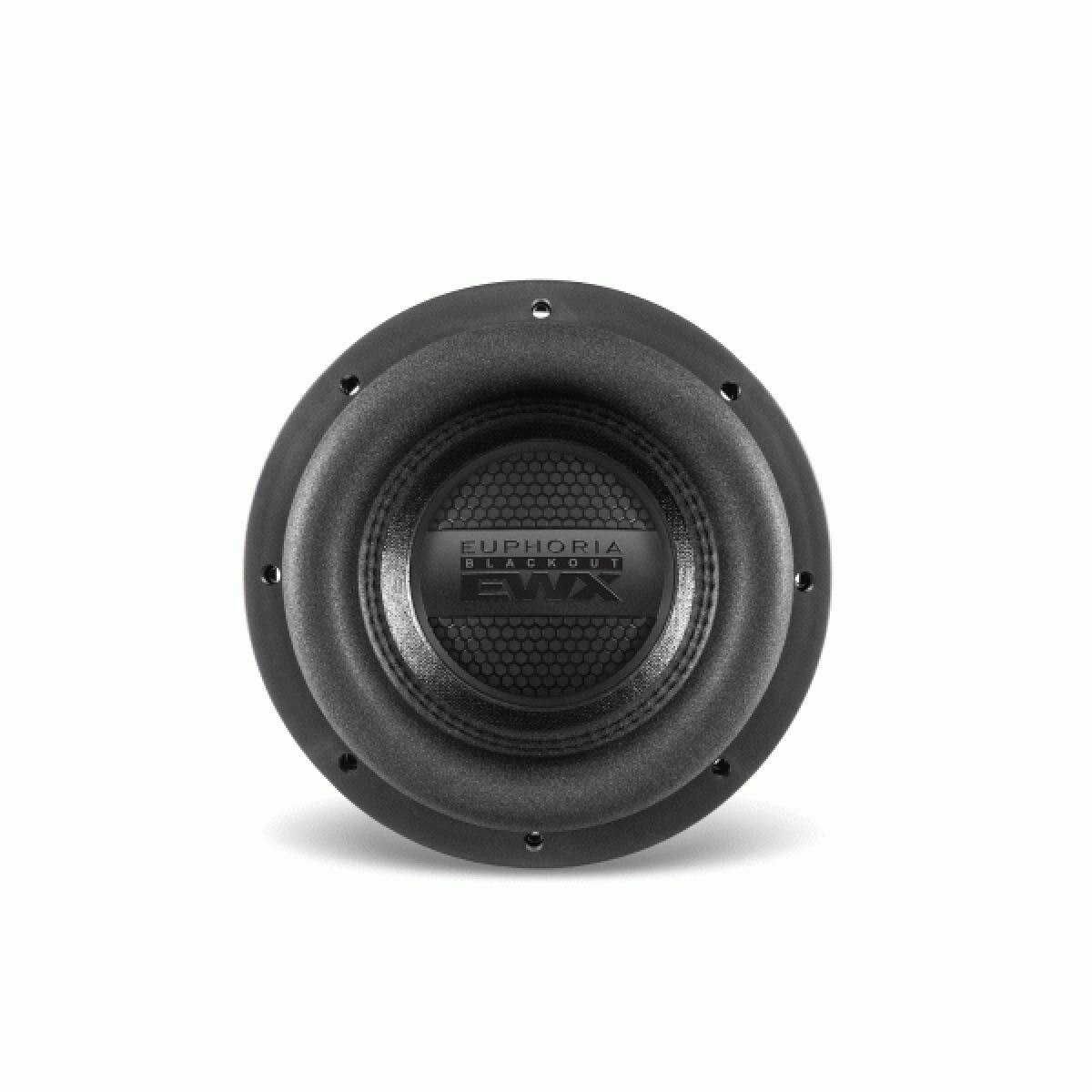

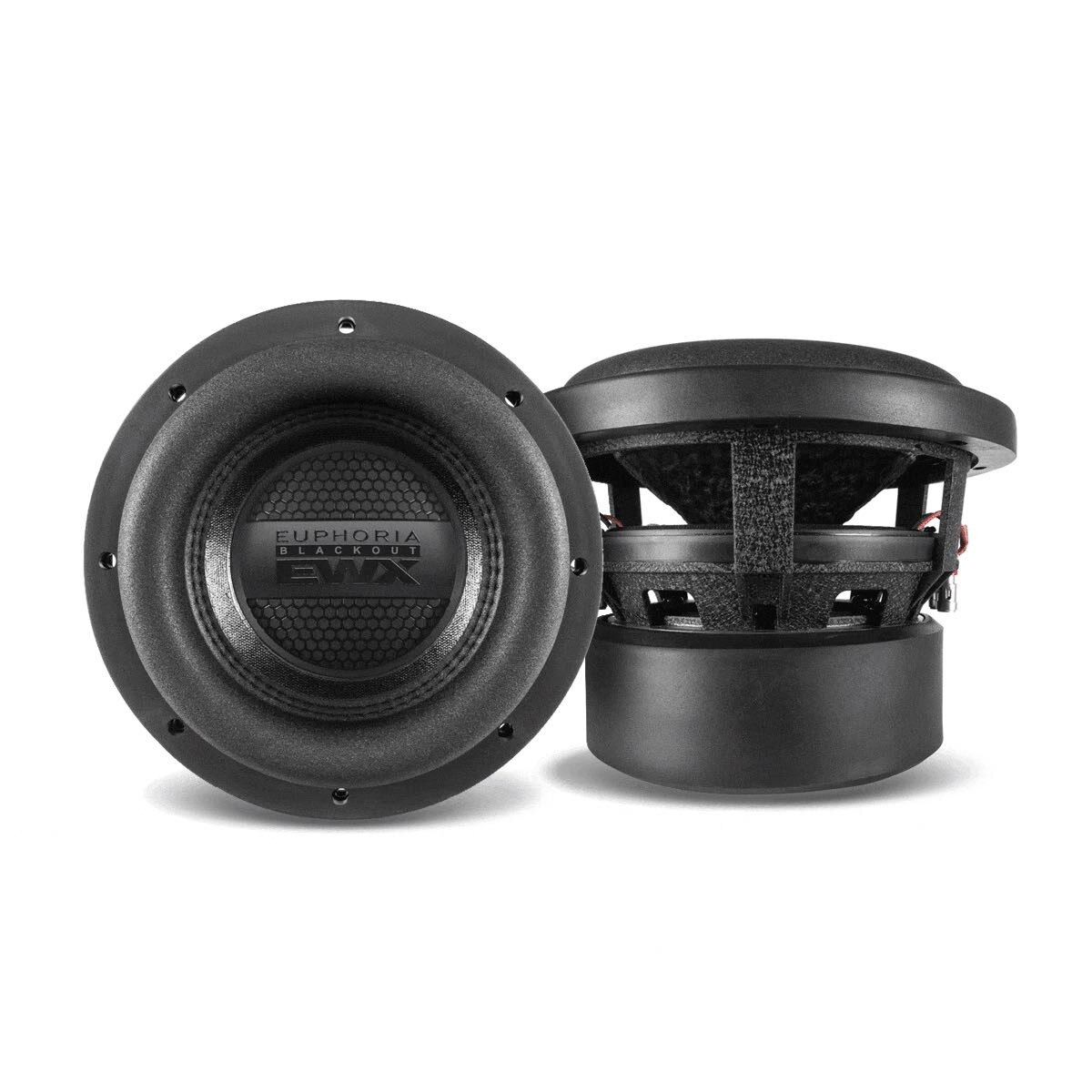

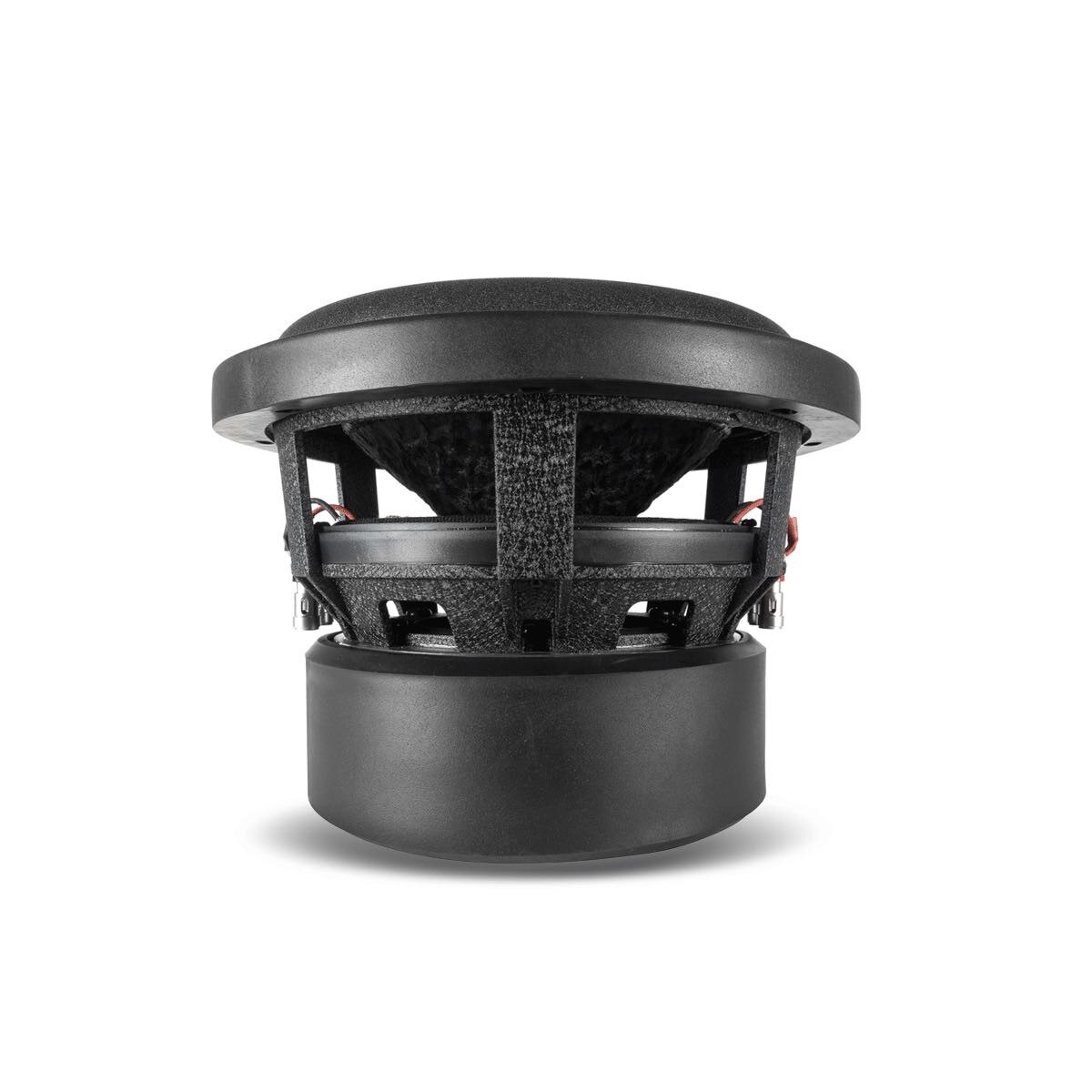

EUPHORIA 8" 1500 WATT DVC 2 OHM WOOFER (EWXB8D2)

(0)No Reviews yet
SKU: EWXB8D2
MANUFACTURER: Euphoria

This item is IN STOCK

Current Stock: 4

Details

  • High Temperature Voice Coil
  • 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
  • 145 oz. Ceramic Ferrite Magnet
  • High Grade Low Carbon Steel Top & Bottom Plate
  • Design to optimize SPL Performance
  • 1.5” High Roll Foam Surround
  • Large Gauge Push Button Speaker Terminals
  • Available in Dual 2Ω or Dual 4Ω Voice Coil

Feel the Euphoria with the EWX BLACKOUT SERIES—bass that moves you!

Introducing the EWX BLACKOUT SERIES by Euphoria, the ultimate subwoofer engineered to elevate your audio experience to new heights. Designed to optimize SPL performance, this 8-inch marvel is not just a subwoofer; it's a revolution in sound. With a blacked-out cosmetic design and high excursion multi-layer foam surround, the EWXB8D2 is optimized for high-output bass, delivering powerful, deep lows that you can feel. Equipped with a high-temperature voice coil and high-grade low-carbon steel top and bottom plates, this subwoofer is built to last. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless integration into your setup. With a dual 2Ω voice coil, a robust 120 oz. magnet, and a max power of 1500 watts, the EWX BLACKOUT SERIES is designed to deliver unparalleled performance. Whether you're a bass enthusiast or a professional audiophile, feel the euphoria and let the music move you like never before.

Structure8” (220 mm)
Max Power1500 Watts
Nominal Power600 Watts
ImpedanceDual 2Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)49.591 Hz
D.C. Voice Coil Resistance (Re)1.8Ω + 1.8Ω
Mechanical Quality Factor (Qms)7.295
Electrical Quality Factor (Qes)0.638
Total Quality Factor (Qts)0.586
Equivalent Air Volume to Cms (Vas)5.382L
Force Factor (BL)14.784 N/A
Mass of Diaphragm/Coil (Mms)124.235 g
Sound Pressure Level (SPL)82 dB
