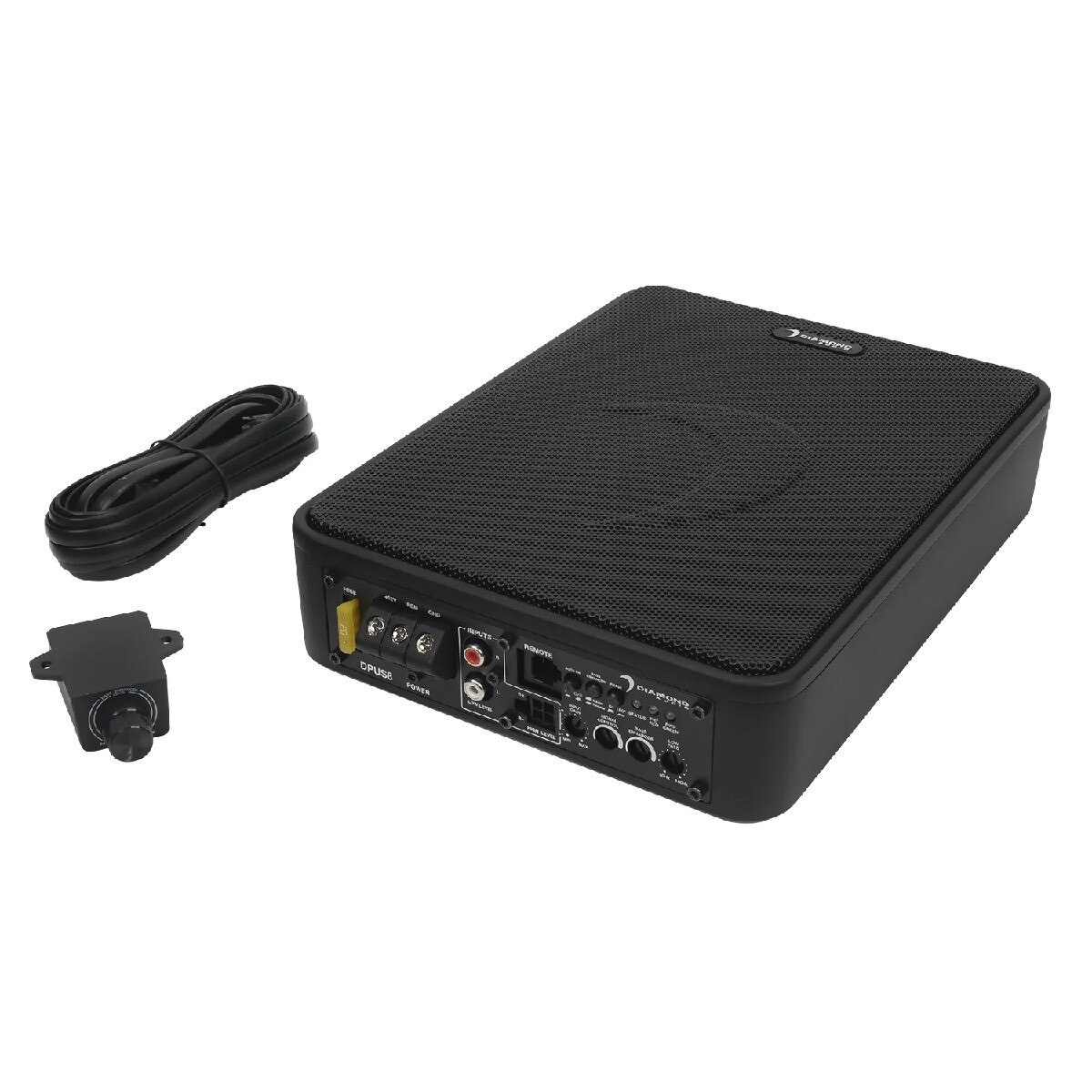

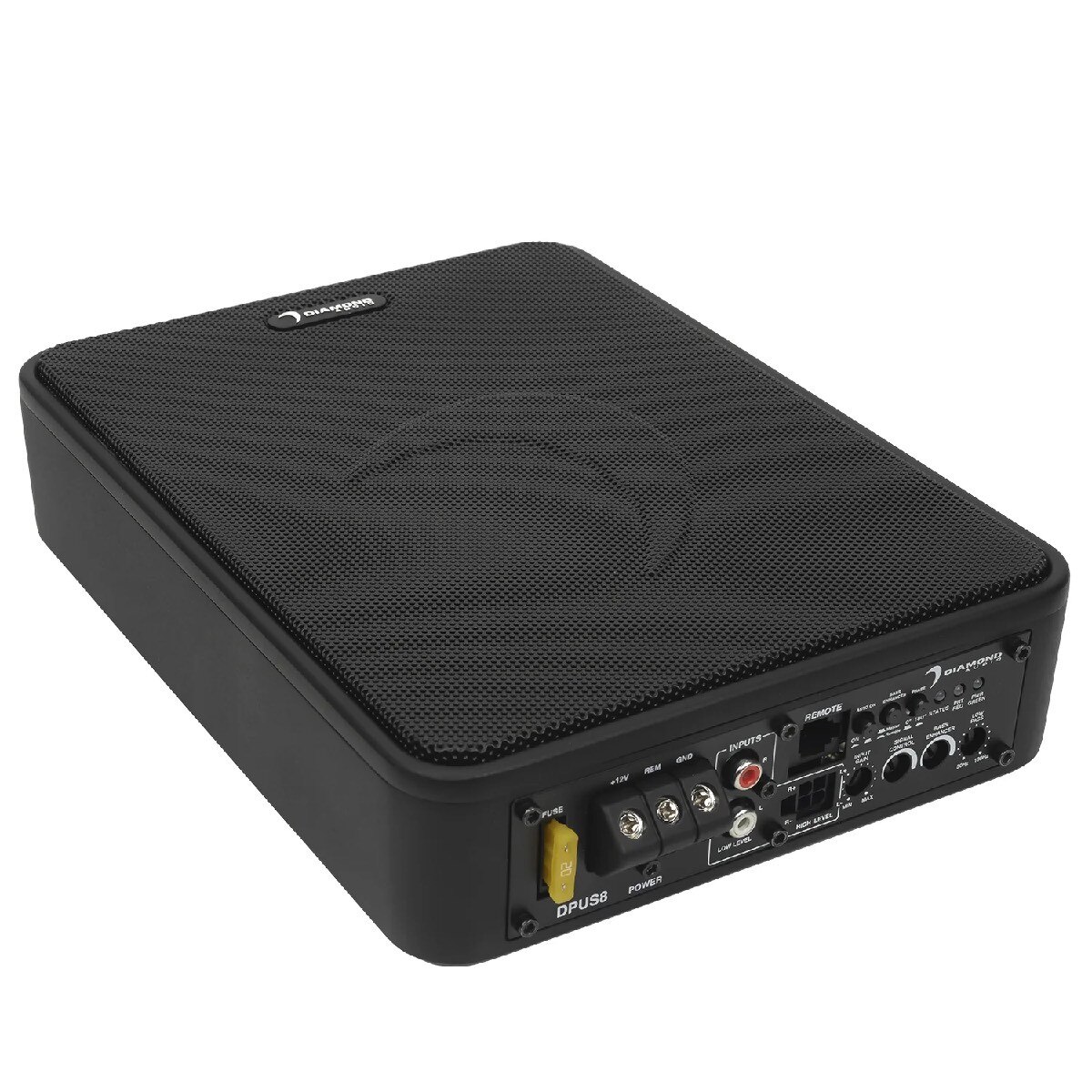

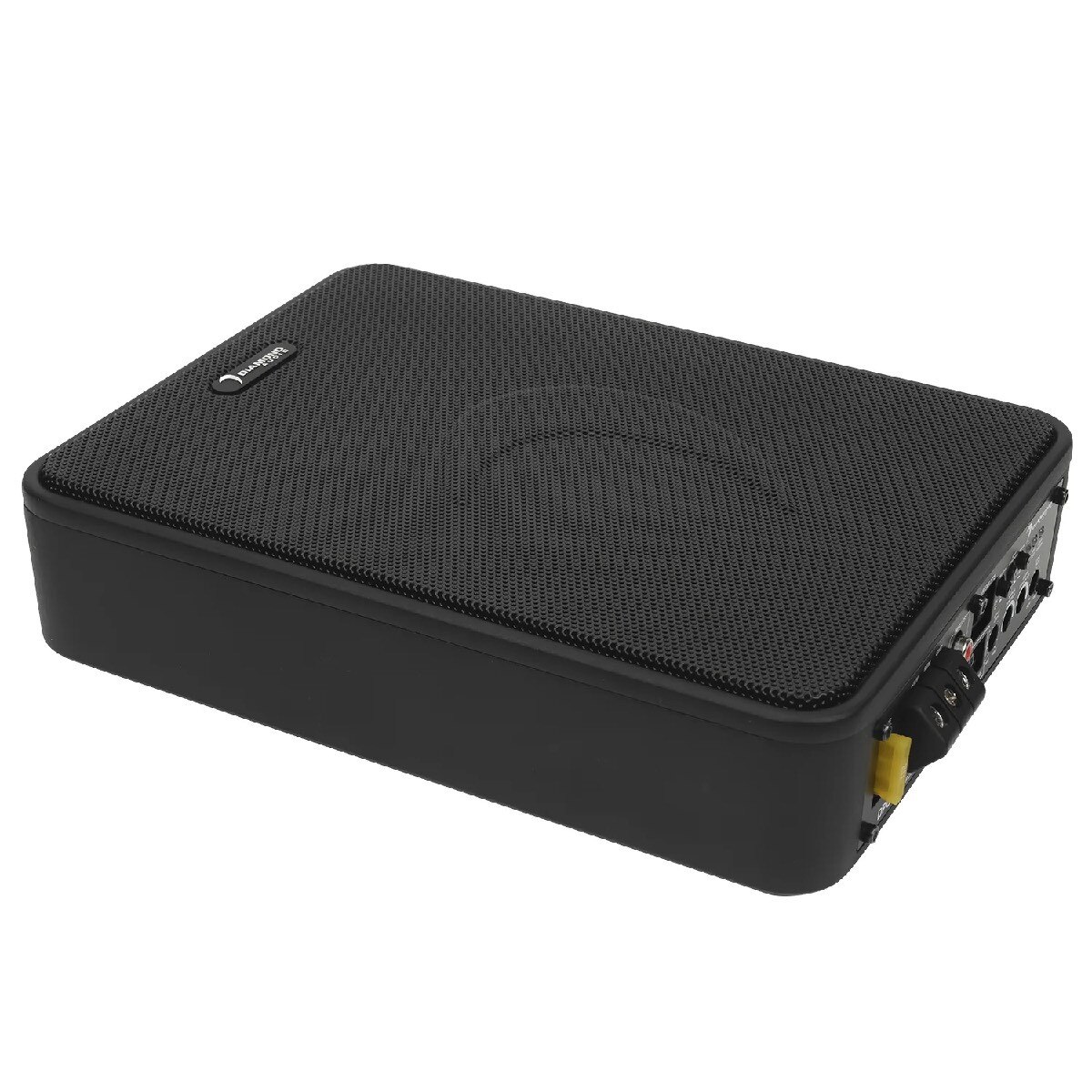

DIAMOND AUDIO 8" AMPLIFIED UNDERSEAT ENCLOSURE WITH BASS ENHANCEMENT (DPUS8)

8” Subwoofer
• Super Slim Design
• Power:100 Watts RMS, 250 Watts Max
• Die Cast Aluminum Chassis/Enclosure
• Diamond BASS Enhancement Circuit
• BASS Enhancement Remote Level control
• BASS Enhancement level adjustment:0-16dB
• 20v Line Level Inputs
• Remote Control for Subwoofer Level
• Auto Turn On: On/Of
• P.W.M Power supply
• Adjustable Input Sensitivity
• Low Level and High-Level input
• Sub Sonic Filter:20Hz (fixed)
• BASS Enhancement trigger signal control
• BASS Enhancement level adjustment:0-16dB
• LPF:50Hz-180Hz
• Power / Protect / Status LED indicator
• Thermal Protection Circuit.
• Short Protection Circuit.
• Overload Protection Circuit
• Dimensions: L 9.65” x W 7.1” x H 8

The DPUS8, an addition to Diamond’s line of under-seat enclosures, boasts a range of unique features designed to simplify installation, address audio issues from OEM vehicle’s audio signal, and alleviate space concerns. For OEM integration, the DPUS8 offers 20V line-level inputs and auto turn-on circuits. To com-bat poor OEM signal quality, the DPUS8 features dual bass controls, one for level and the second with Diamonds’ exclusive bass enhancement circuit. The DPUS8 also includes the standard low pass and subsonic filters and phase adjustments. Notably, the enclosure/amplifier housing is remarkably compact, ensuring it fits a wide range of applications while still delivering impressive output from the onboard 8” subwoofer and 100WRMS amplifier.
