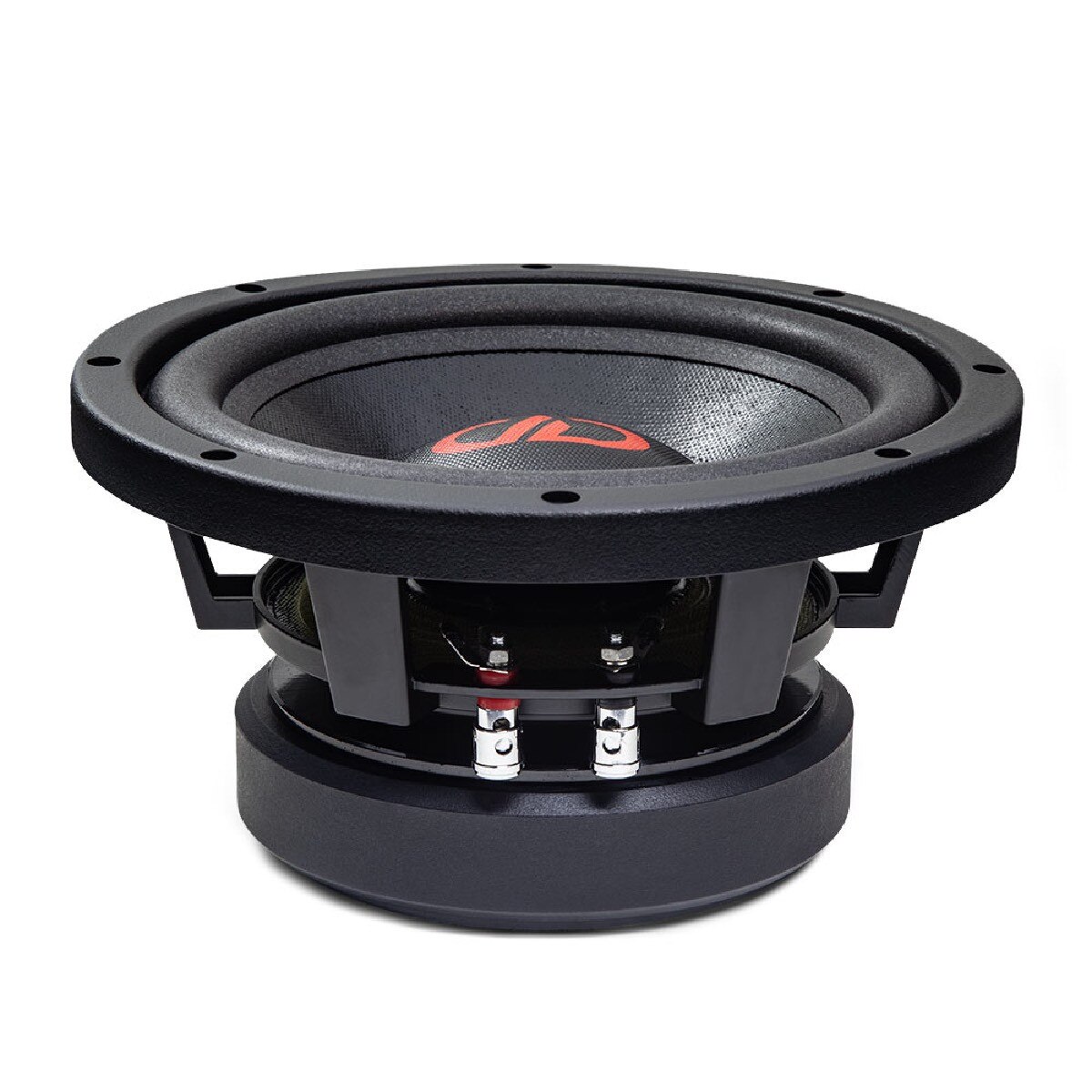

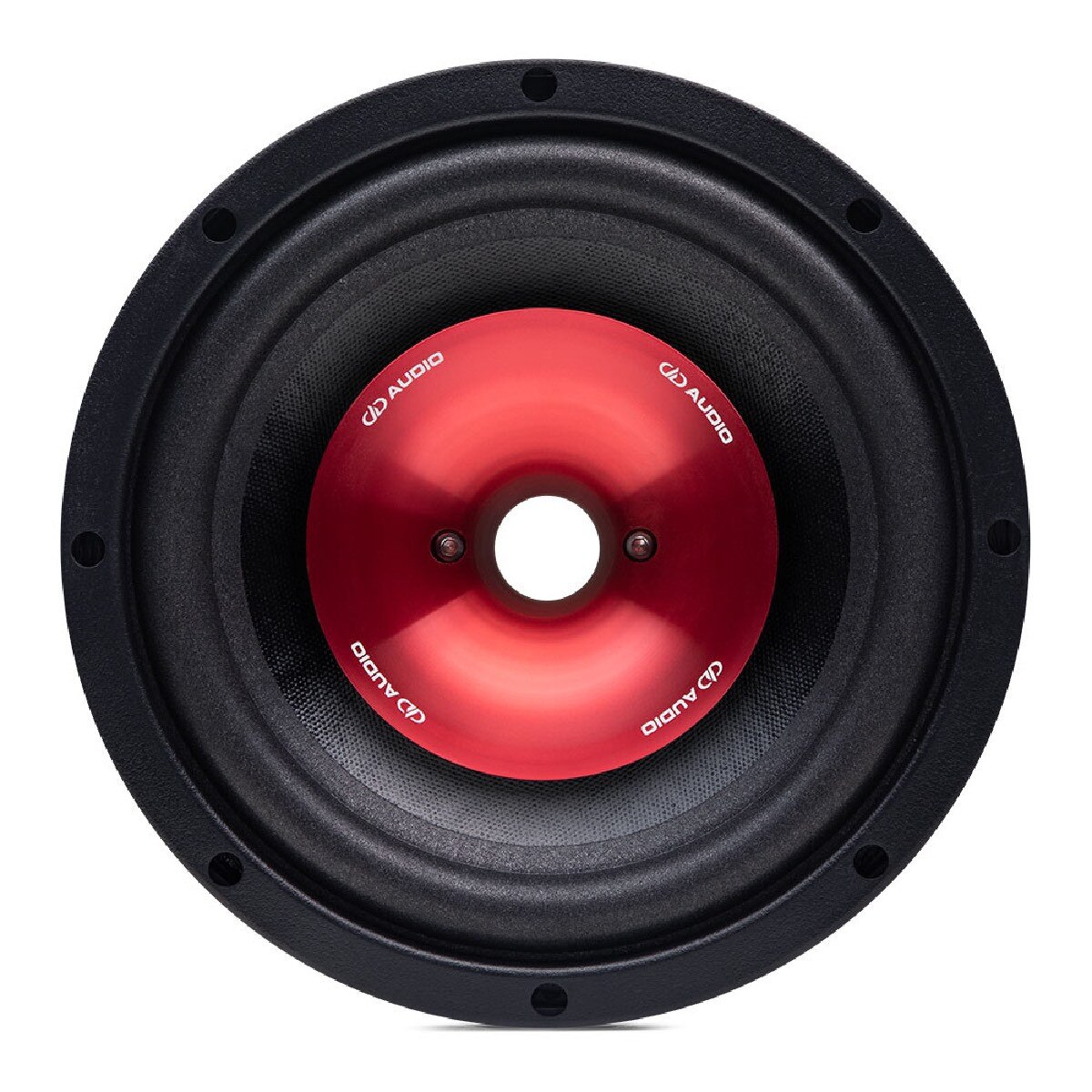

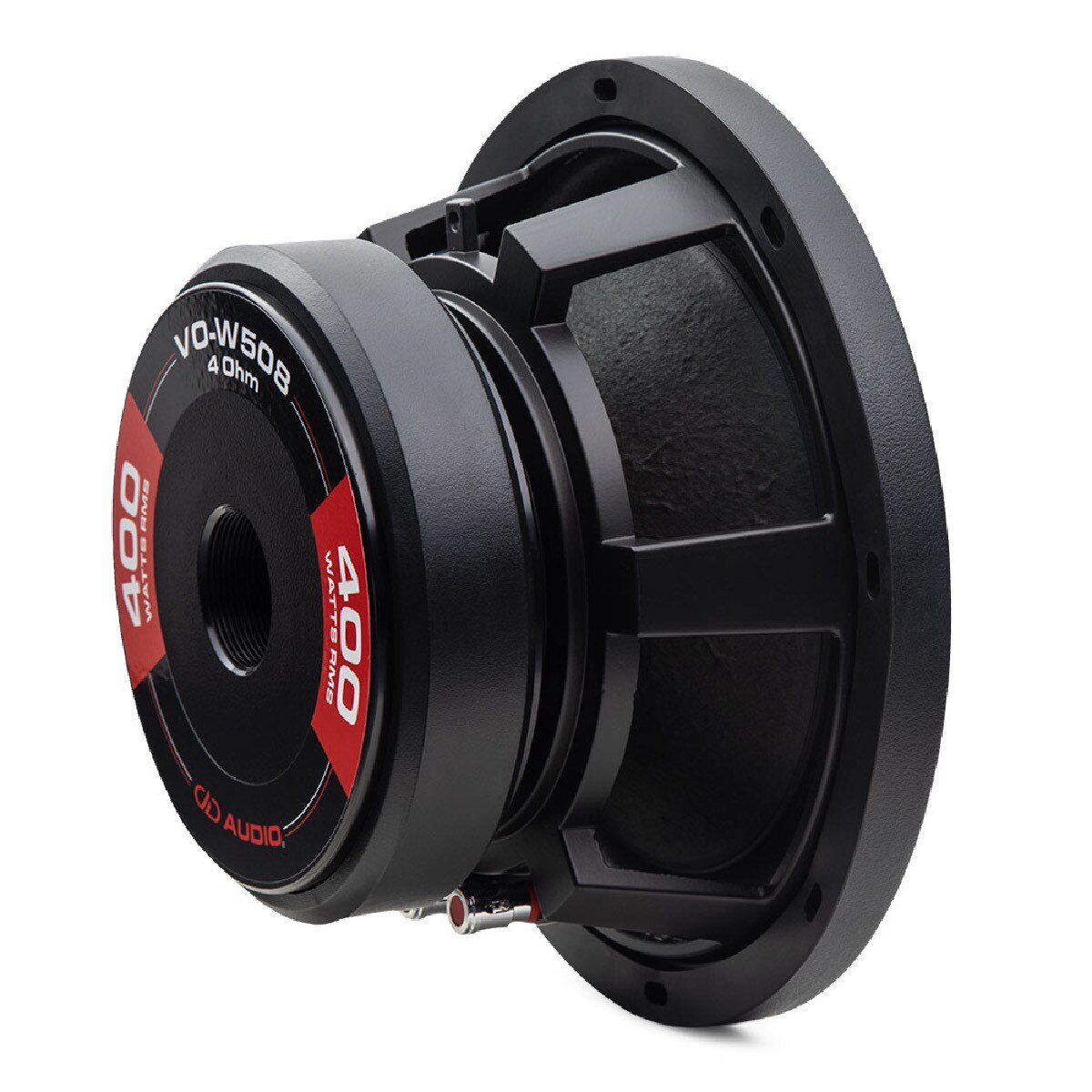

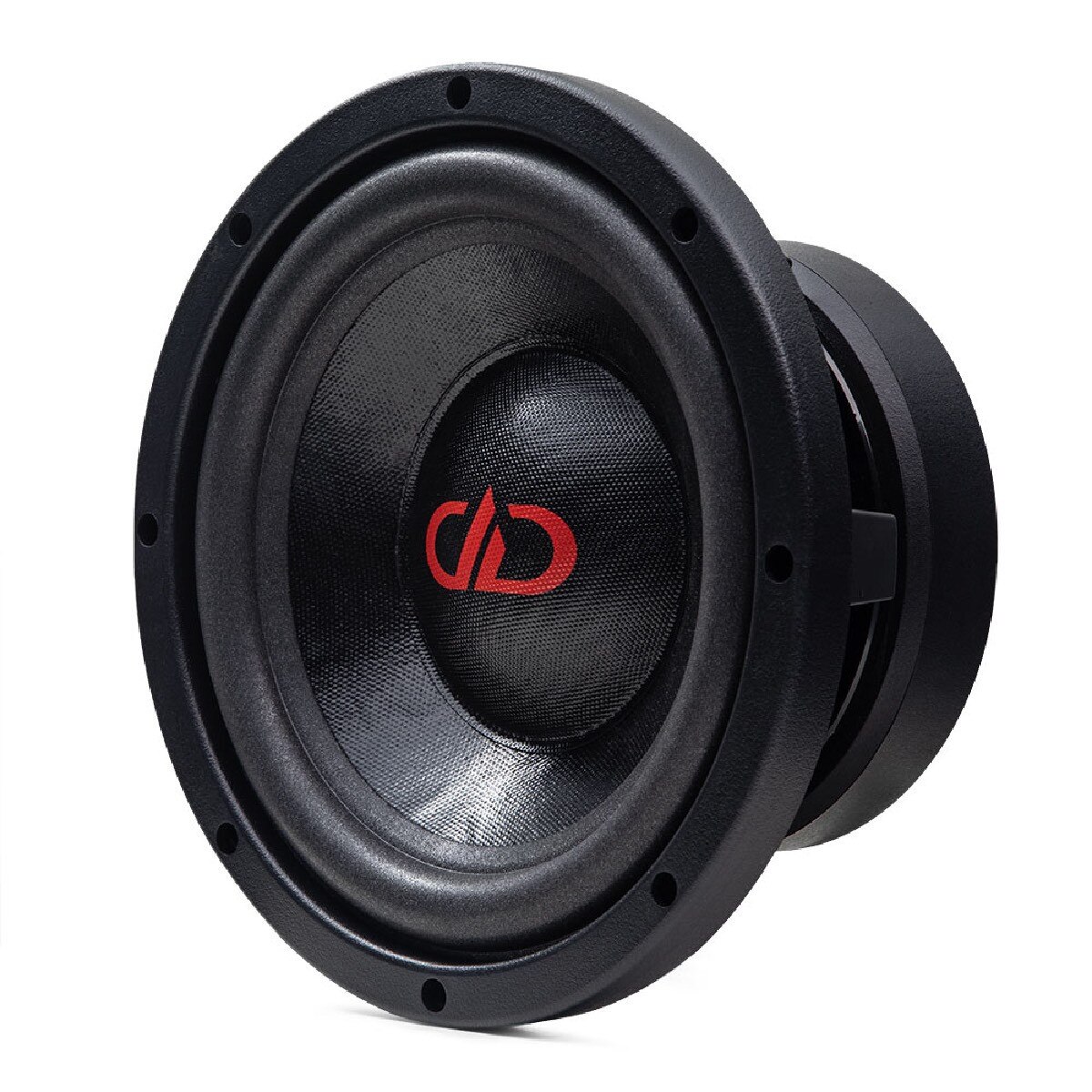

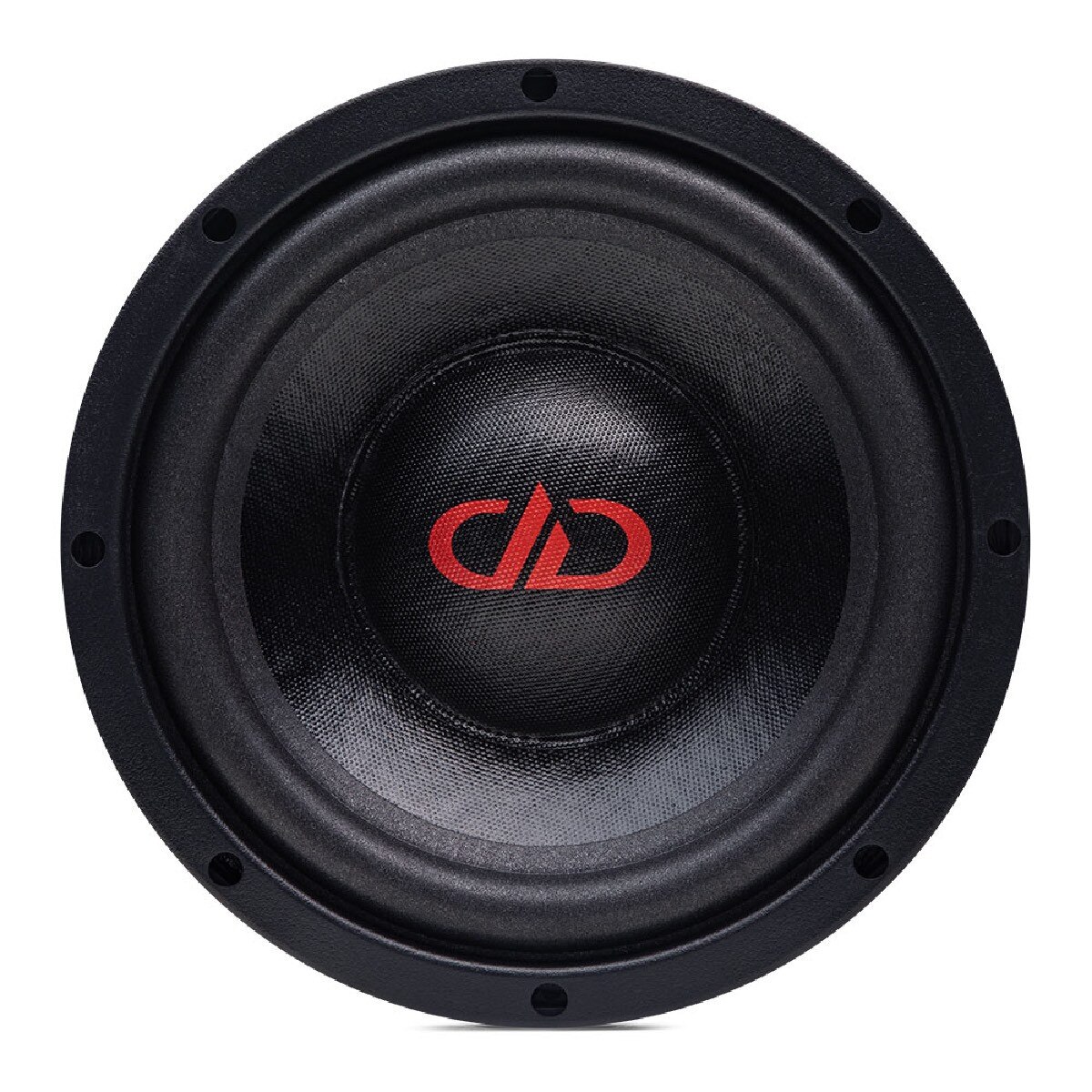

DD AUDIO 8" MIDWOOFER, WORKS WITH CT25 OR 45 AND CT-AL-HORN-8 150W-450W SINGLE 2 OHM VC (VO-W508-S2)
/VO-W508_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-W508_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-W508_media_03.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-W508_media_04.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-W508_media_05.jpg?resizeid=3&resizeh=600&resizew=600)
Details
400 Watts RMS, 800 Watts Max
Single 2 Ohm Voice Coil
3.75" Mounting Depth
2.5” VCD
Threaded back plate for compression driver mounting
Cast aluminum frame
8mm Xmax, 30mm suspension travel
½ roll surround
Poly-cotton spider
CCA coil wire
Shorting ring motor
The VO-W500 Voice Optimized Woofers are PA style, high output woofers combining design elements from pro audio and high-end car audio, low moving mass, low inductance and shorting ring motor design coupled with tight tolerances produces ultra fast transients and high output.
They feature extended the low frequency midbass output using a long voice coil winding with copper clad aluminum wire with large diameter voice coils, a long excursion 1⁄2 roll surround, a cast frame basket allowing larger diameter spiders, a high energy CnC machined motors, and the unique ability to thread on our VO-CT compression tweeters and horn for coaxial applications.
