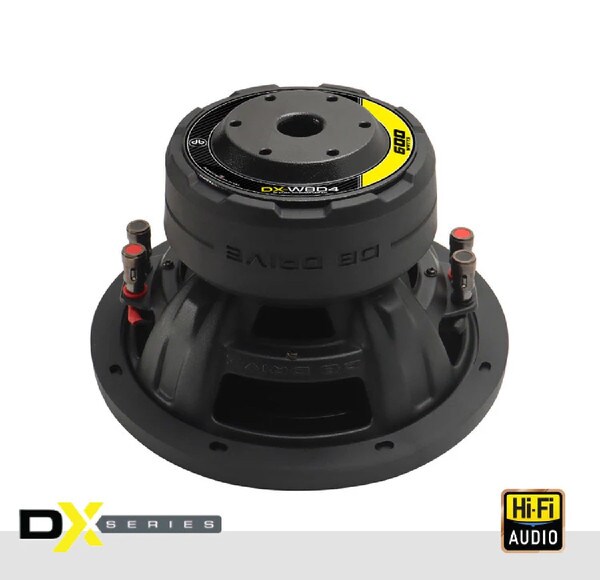

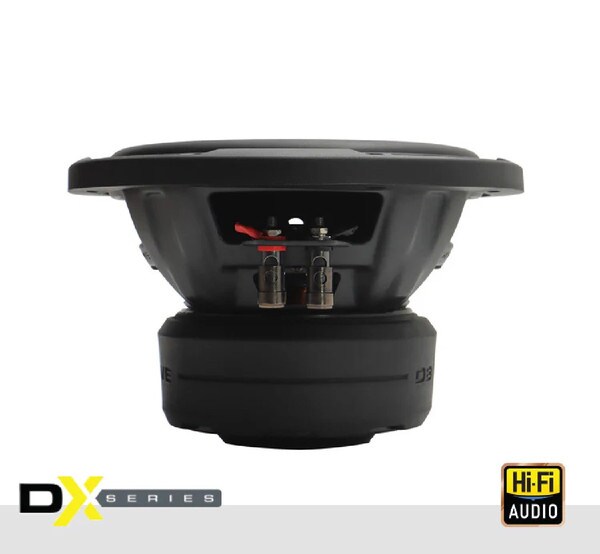

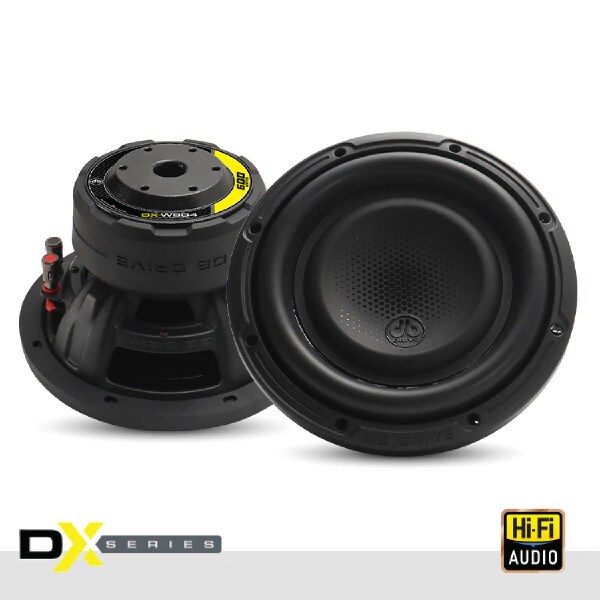

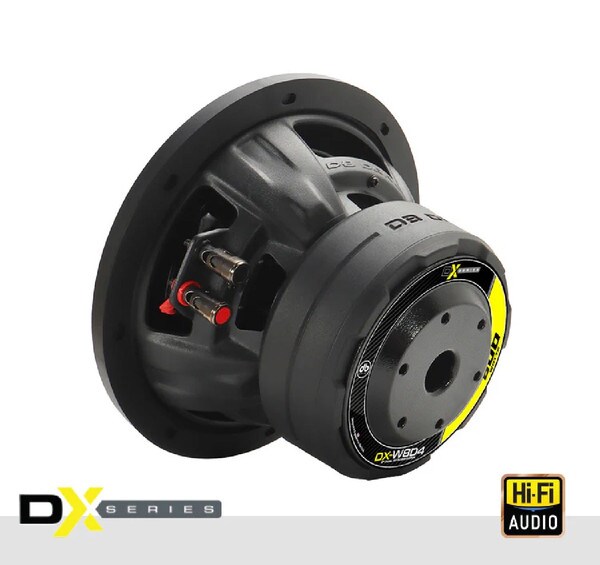

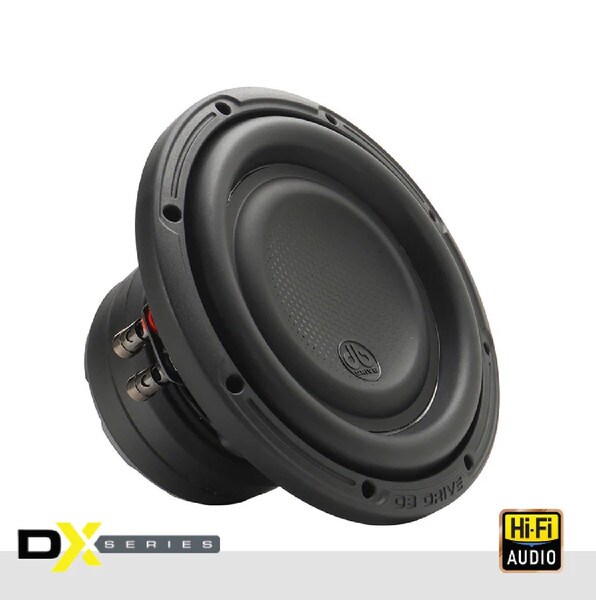

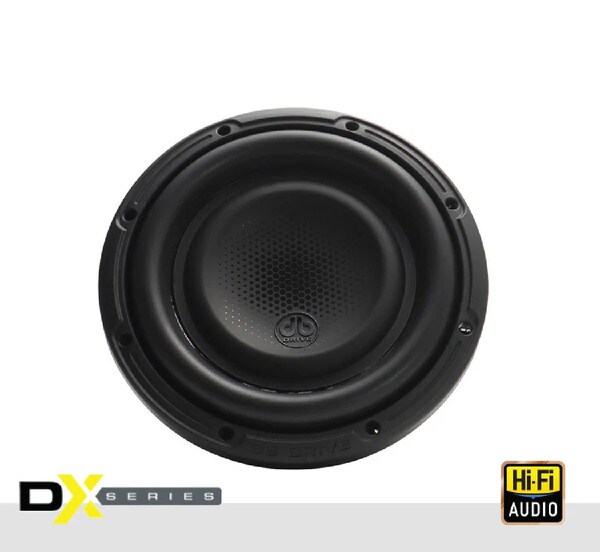

DB DRIVE DX 8" 600 WATT DVC 4 OHM SUBWOOFER (DX-W8D4)
Details
- 2″ (50.8mm) 4 Layer Voice Coil
- Injected PP Cone with rubber Surround
- Precision Excursion design
- High Strength Ferrite Oxide magnet
- Anti-resonant stamped steel basket with radial venting
- Linear dampening
- Compression Speaker Terminals
- Dynamic Power Handling: 600 Watts
- Nominal Power Handling: 300 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 43.321 Hz
- D.C. Voice Coil Resistance (Re): 2 x 4Ω
- Mechanical Quality Factor (Qms): 3.347
- Electrical Quality Factor (Qes): 0.985
- Total Quality Factor (Qts): 0.761
- Equivalent Air Volume to Cms (Vas): 7.270 L
- Mass of Diaphragm/Coil (Mms): 106.571 g
- Force Factor (BL): 13.731
- "Sound Pressure Level (SPL): 79.7 dB"
- X-max: 18
The DB DRIVE DX-W8D4 subwoofers deliver deep bass and crystal-clear clarity, perfect for audiophiles and bass lovers alike. Key Features: Power Handling: 600W peak, 300W nominal for consistent performance. Dual 4-Ohm Voice Coils: Flexible wiring for optimized performance. Poly-Cotton Spiders: Smooth, consistent bass response. Durable Dust Cap: Triple-reinforced for long-lasting reliability. Optimized Magnetic Geometry: Cleaner, dynamic sound. IMPP Composite Cone: Ensures deep, accurate bass. High-Temperature Voice Coil: Handles high power without loss of performance. Rigid Basket: Stable under heavy use for top-tier sound. Motor Venting: Reduces distortion and maintains performance. Designed for versatility and durability, the DX-W8D4 subwoofers are the perfect upgrade for any car audio system.
