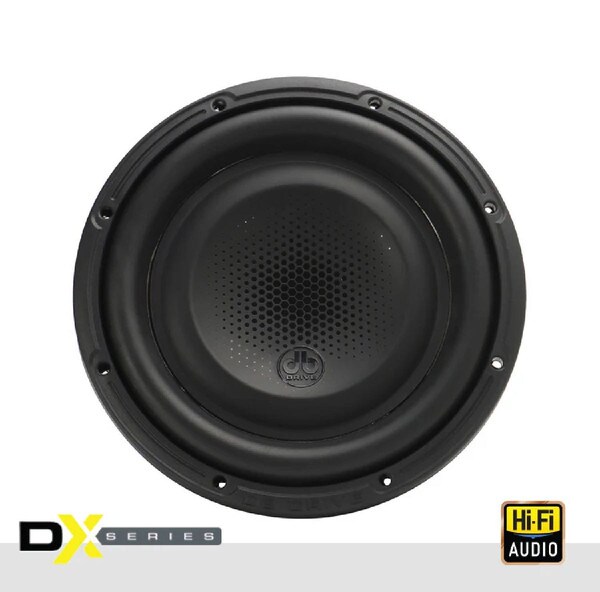

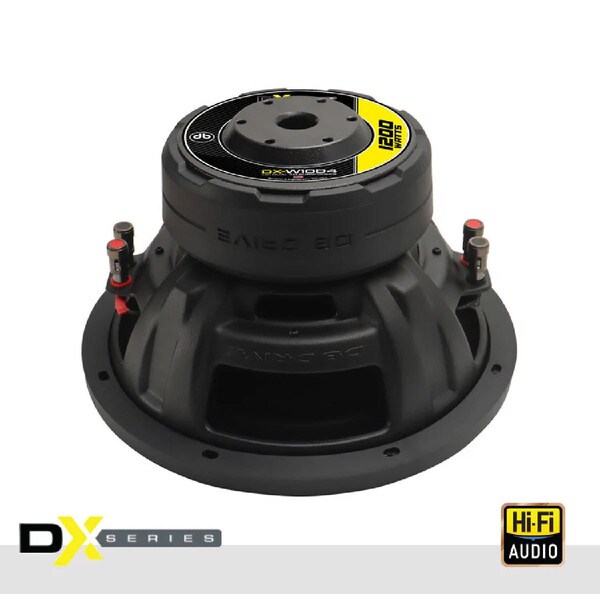

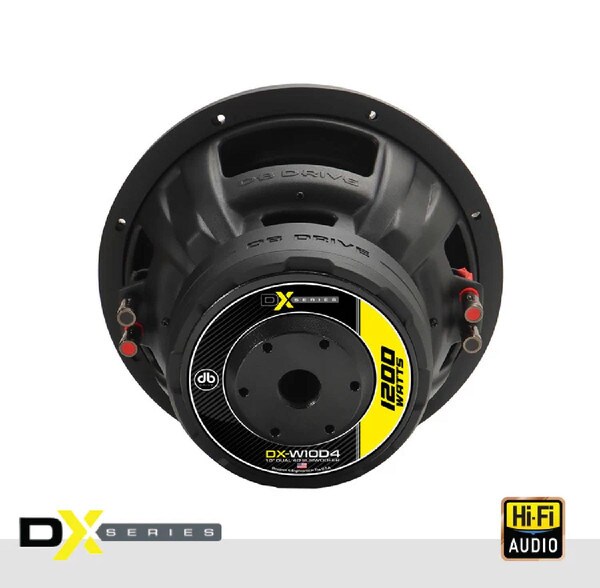

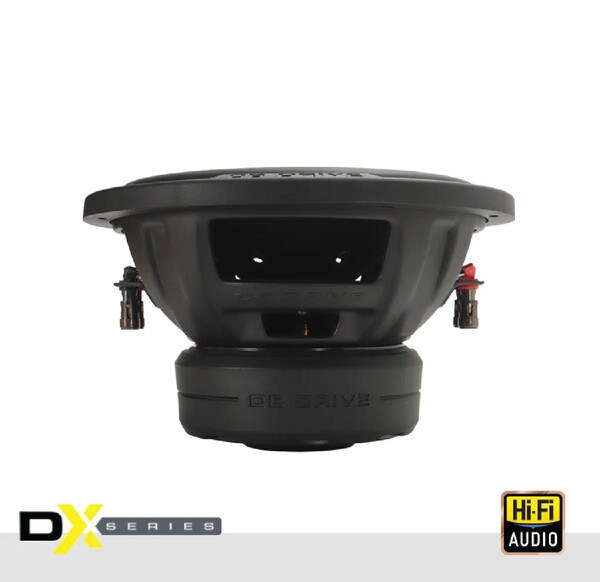

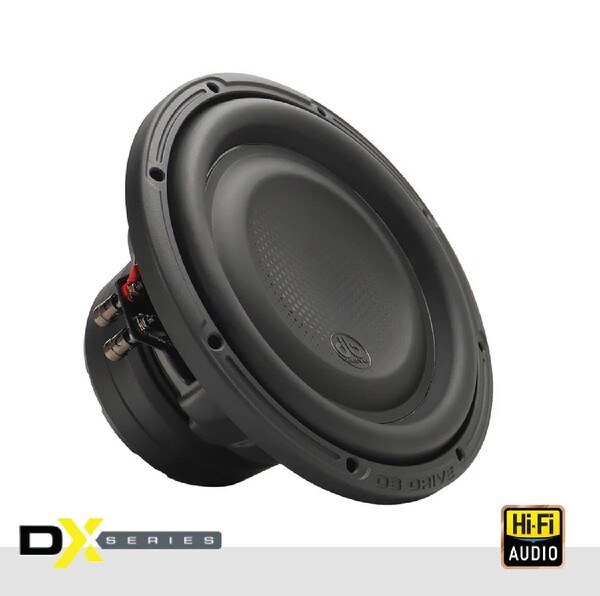

DB DRIVE DX 10" 1200 WATT DVC 4 OHM SUBWOOFER (DX-W10-D4)

• 2″ (50.8mm) 4 Layer Voice Coil

• Injected PP Cone with rubber Surround

• Precision Excursion design

• High Strength Ferrite Oxide magnet

• Anti-resonant stamped steel basket with radial venting

• Linear dampening

• Compression Speaker Terminals
• Dynamic Power Handling: 1200 Watts

• Nominal Power Handling: 600 Watts

• Impedance: Dual 4Ω Voice Coil

• Resonant Frequency (fs): 36.335Hz

• D.C. Voice Coil Resistance (Re): 2 x 4Ω

• Mechanical Quality Factor (Qms): 2.859

• Electrical Quality Factor (Qes): 0.656

• Total Quality Factor (Qts): 0.534

• Equivalent Air Volume to Cms (Vas): 22.210 L

• Mass of Diaphragm/Coil (Mms): 138.935 g

• Force Factor (BL): 13.905

• "Sound Pressure Level (SPL): 84 dB "

• X-max: 18

The DB DRIVE DX-W10D4 subwoofers deliver deep, accurate bass and crystal-clear sound, perfect for audiophiles and bass enthusiasts. Key Features: Power Handling: 1200W peak, 600W nominal for intense bass. Dual 4-Ohm Voice Coils: Customizable wiring for optimal performance. Poly-Cotton Spiders: Precise cone control for smooth bass. Durable Dust Cap: Triple-reinforced for long-lasting durability. Optimized Magnetic Geometry: Delivers cleaner, dynamic sound. IMPP Composite Cone: Rigid for deep, accurate bass. High-Temperature Voice Coil: Handles high power without sacrificing sound. Rigid Basket: Ensures stability and top-tier performance. Motor Venting: Reduces distortion and maintains clarity. Built for performance and durability, the DX-W10D4 subwoofers are perfect for upgrading or building your ideal car audio system.
