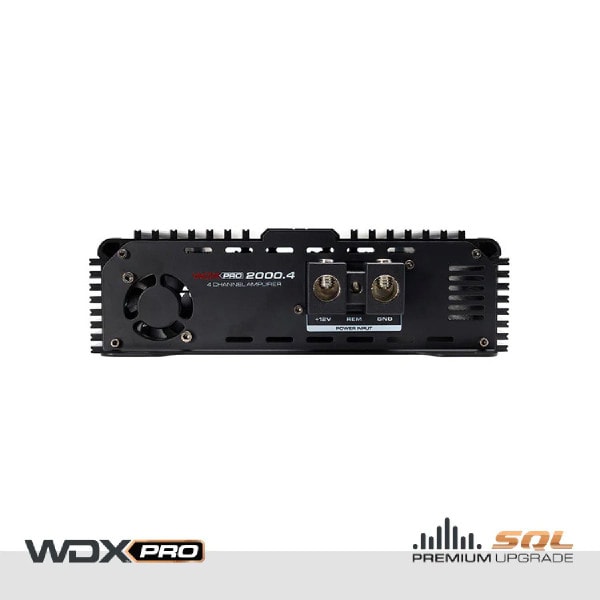

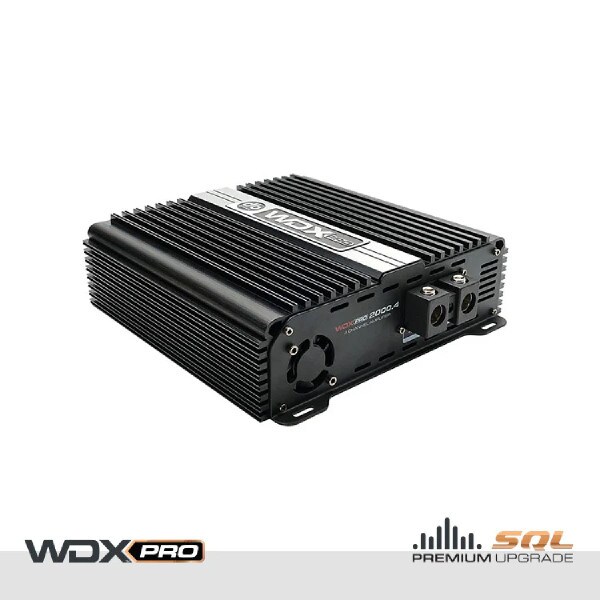

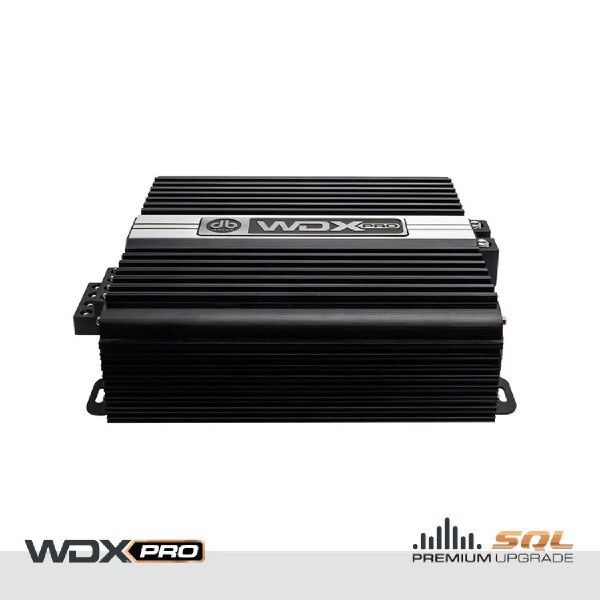

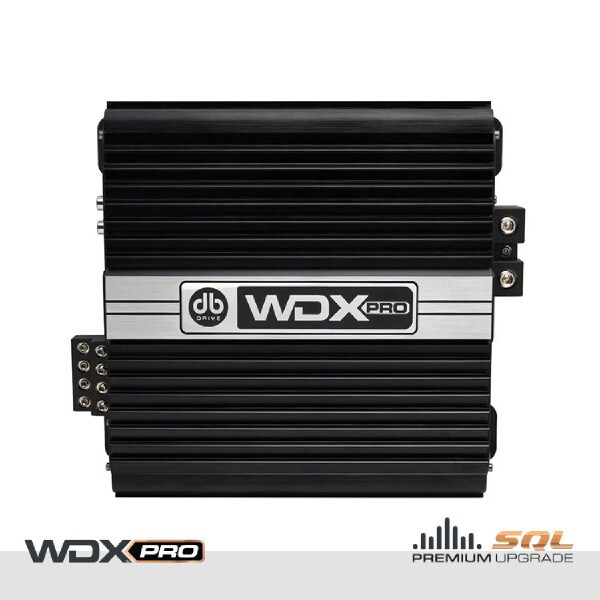

DB DRIVE 500 WATTS X 4 FULL RANGE AMPLIFIER (WDXPRO2000.4)

4 x 125 Watts @ 4 ohms
4 x 250 Watts @ 2 ohms
4 x 500 Watts @ 1 ohm
4 ohms (Bridged): 2 x 1000 Watts
Working Voltage: 12-15 Volts
Frequency Response: 15 Hz - 20k Hz
Signal to Noise Ratio: 96dB
ACT - Variable Crossover HP/BP/LP
Damping Factor: ≥200
Low Level Input: 6V - 0.2mV
Ch 1/2 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz
Ch 3/4 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz
Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged

ATC - Audiophile RCA Connectors
ACT - Adaptive Crossover Technology
High efficiency Class Full Range Class D Technology
Direct Connect Speaker Terminals
4 Gauge Power Wire Inputs
APC - Audio Protection Circuit
SESI - Signal Evaluation Status Indicator
CHM - Collective Heat Management

Maximize your car audio with the DB Drive WDX PRO21000.4, a powerful 4-channel Class D amplifier built for high output and superior sound. Key Features: • Adaptive Crossover: Optimizes performance for tweeters, mids, and midbass. • CHM: Keeps the amp cool during extended use. • SESI Circuit: Monitors output to prevent overdriving and protect your gear. • Large-Gauge Terminals: Support 4-gauge wiring for high-output systems. With 500 Watts per channel at 1Ω, the WDX PRO2000.4 delivers clear, powerful sound, elevating your audio experience.
