Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

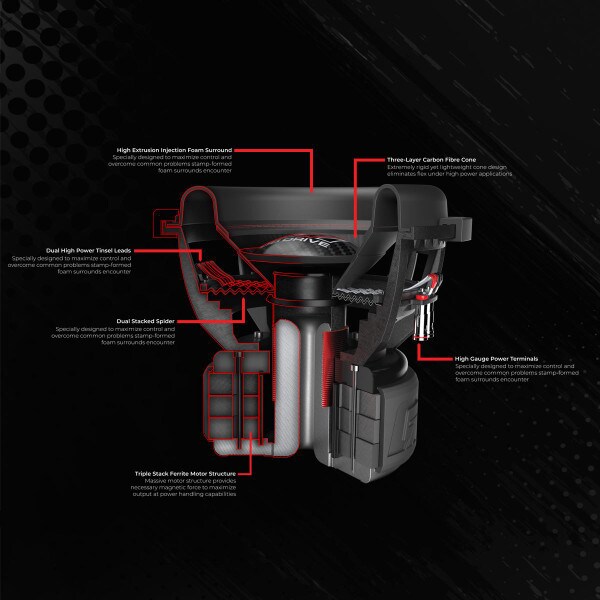

- High excursion foam surround
- True Carbon fiber dust cap
- Custom Die cast Aluminum Basket
- Triple Layer Progressive dampeners
- Large Gauge push speaker terminals
- 3-inch-high temperature 4-layer voice coil
- Custom Rubber protective magnet band
- Triple stacked Y35 ferrite oxide magnet
Outside Diameter (A) | 15.82″ (402mm) |
Cutout Diameter (B) | 13.85″ (352mm) |
Mounting Depth (C) | 10.78″ (274mm) |
GENERAL SPECIFICATIONS |
---|
Structure | 15″ (38.1cm) Woofer |
Dynamic Power Handling | 8000 Watts |
Nominal Power Handling | 4000 Watts |
Impedance | Dual 2Ω Voice Coil |
