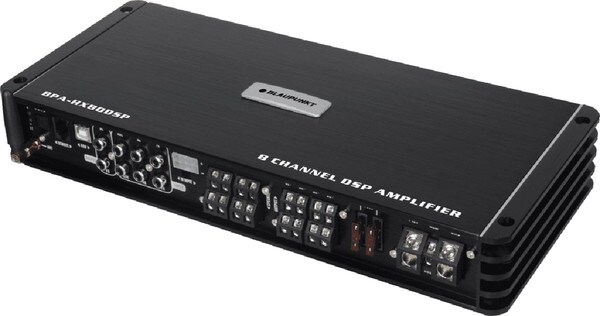

BLAUPUNKT 780 WATT 8 CHANNEL AD-CLASS SMART POWER AMPLIFIER & DSP (BPA-HX80DSP)

8CH CLASS D DSP Amplifier

Power output 4ohm (watts): 60W X 6 + 80W X 2

Power output 2ohm (watts): 90W X 6 + 120W X 2

THD: ≤0.05%

Frequency response (±3dB): 20Hz~20KHz

Signal to noise ratio: ≥100dB

Sensitivity: 0.2~6V

Dimensions: 378mm x 151mm x 64mm

Channel Separation: >60 dB

Input Impedance: Low=22K Ohms / High=100 Ohms

Subwoofer Phase Shift: 0°/180°

Software compatible OS: XP SP3, Vista, 7, 8, 10

8 Presets, Gain -60dB- OdB

6- 48 db/Oct. HPF/BPF/LPF

Time Delay: 0-20ms/0-692cm

All Equalizer Frequency adjustable

8 x 31-Band Equalizer, -20- 20dB, Q adjustable

Setting range 20-20.000 Hz

Signal Input: RCA X 6 / AUX RCA X 2

Signal Output

Remote Controller: for Master Volume, Subwoofer Volume,

Mode Selection

Dimensions: 311 X 145 X 51mm
