PRV AUDIO - 6.5" CARBON FIBER NEODYMIUM MIDRANGE 400 WATT MOTORCYCLE SPEAKER SOLD AS EACH (MT6MR400CF-NDY-4-SLIM)
/MT6MR400CF-NDY-4-SLIM_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_03.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_04.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_05.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_06.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_07.jpg?resizeid=3&resizeh=600&resizew=600)
/MT6MR400CF-NDY-4-SLIM_media_08.jpg?resizeid=3&resizeh=600&resizew=600)
Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 6″ (152 mm) | |
| Nominal impedance | 4 Ohm | |
| Nominal Power Handling* | 200 Watts | |
| Continuous Program Power (RMS)** | 400 Watts | |
| Max Peak Power*** | 800 Watts | |
| Sensitivity 2.00V at 1m | 95 dB | |
| Recommended Hi Pass Crossover *For Full Power Handling | 120 Hz* *12db Per Octave Crossover | |
| Frequency Response | 120 – 12,000 Hz | |
| Voice Coil Diameter | 1.5″ (38 mm) | |
| Voice Coil Wire | CCAW | |
| Voice Coil Winding Depth | 10.0 mm | |
| Former Material | Kapton | |
| Magnetic Gap Depth | 5.0 mm | |
| Frame Material | Stamped Steel | |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 3.38 l |
| Excursion | Xmax*** | 3.75 mm |
| Free Air Resonance | Fs | 138.9 Hz |
| Mechanical Factor | Qms | 6.76 |
| Electrical Factor | Qes | 0.68 |
| Total Factor | Qts | 0.62 |
| Cone Area | Sd | 139 cm² |
| Mechanical Mass | Mms | 10.47 g |
| Bl Factor | Bl | 6.85 Tm |
| Dc Resistance | Re | 3.5 Ohm |
| Inductance | Le | 0.168 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 9.55 g |
| Mechanical Compliance | Cms | 0.125 mm/N |
EXTRA INFO

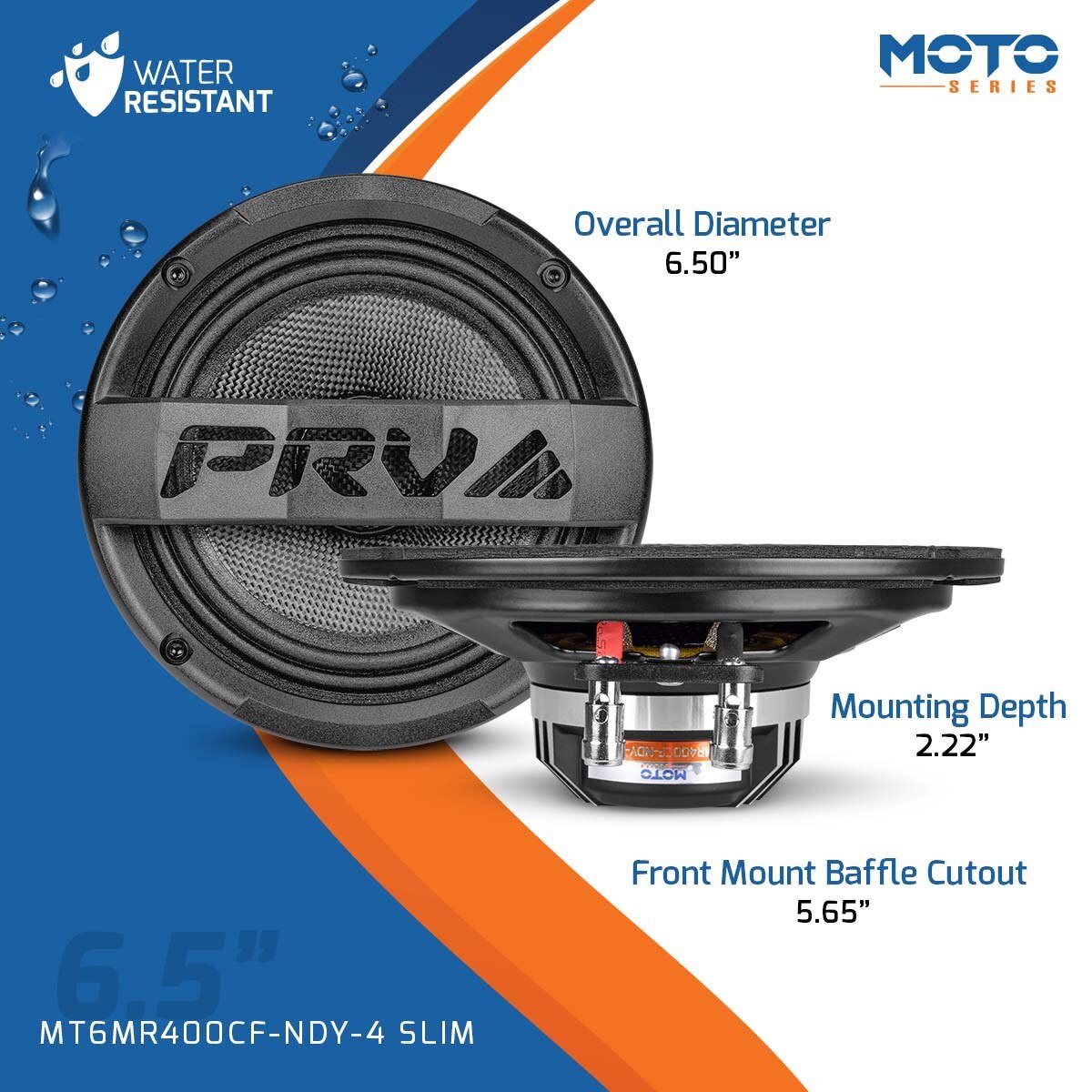

| Overall Diameter | 6.50″ (165 mm) |
| Front Mount Baffle Cutout | 5.65″ (146.6 mm) |
| Mounting Depth | 2.22″ (56.5 mm) |
| Overall Depth (with grill) | 3.22″ (82 mm) |
| Net Weight | 1.63 Lbs (0.73 kg) |
| Shipping Weight | 1.98 Lbs (0.9 kg) |
| Carton Dimensions W x L x H | 8.54″ x 8.11″ x 4.25″ (217 x 206 x 108 mm) |
PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.
This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.
Due to the premium materials used in its construction, such as a carbon fiber cone, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.
- Water Resistant Speaker with true PRO audio Midrange Performance
- Carbon Fiber Cone with Coated Suspension to Handle Outdoor Applications
- Full Range Sound, its Low inductance Technology extends its frequency response up to 12,000 Hz
- High Output Speaker for 4 Wheelers, Slingshots, and Motorcycles that mounts in practically every stock location
- Built for Compact Applications with only 2.22′′ of mounting depth Without Sacrificing Quality or Performance

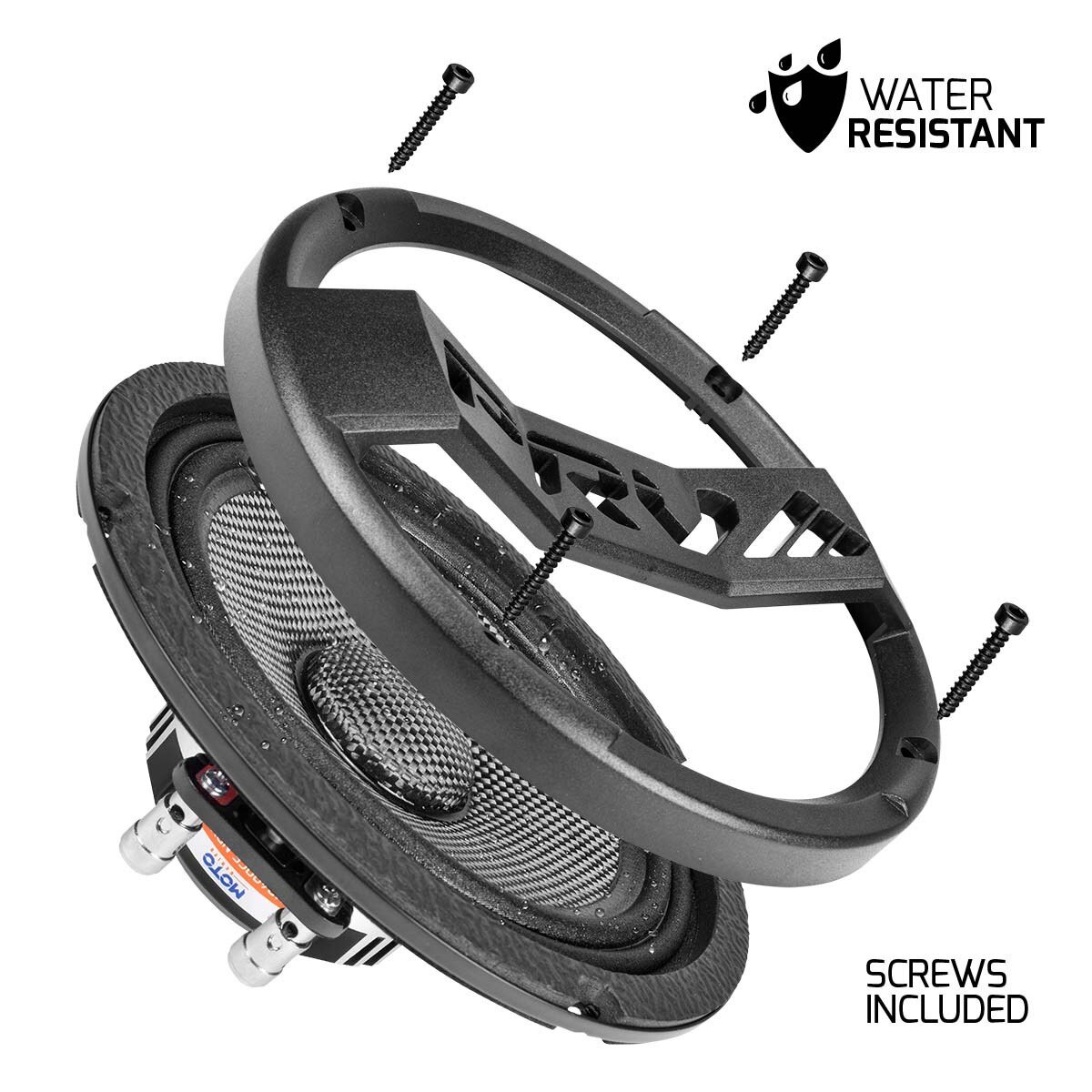

- Grill and screws are included
Aside from its attractive appearance, this carbon fiber cone is exceptionally light, surprisingly rigid, and provides great damping to keep narrow peaks under control.
Despite its extremely compact design, our technical team was able to achieve precision in the vocal reproduction range, resulting in the famous PRV audio PRO Audio sound.
A special treated surround and flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.
This midrange features many premium components, one of which is stitched lead wires, which connect the voice coil to the terminals through a single layer spider suspension, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high strength neodymium motor that immerses the voice coil in a strong magnetic field.
You can expect excellent off-axis and transient response from this water-resistant speaker for a great, controlled sound, making an easy transition to a super tweeter.

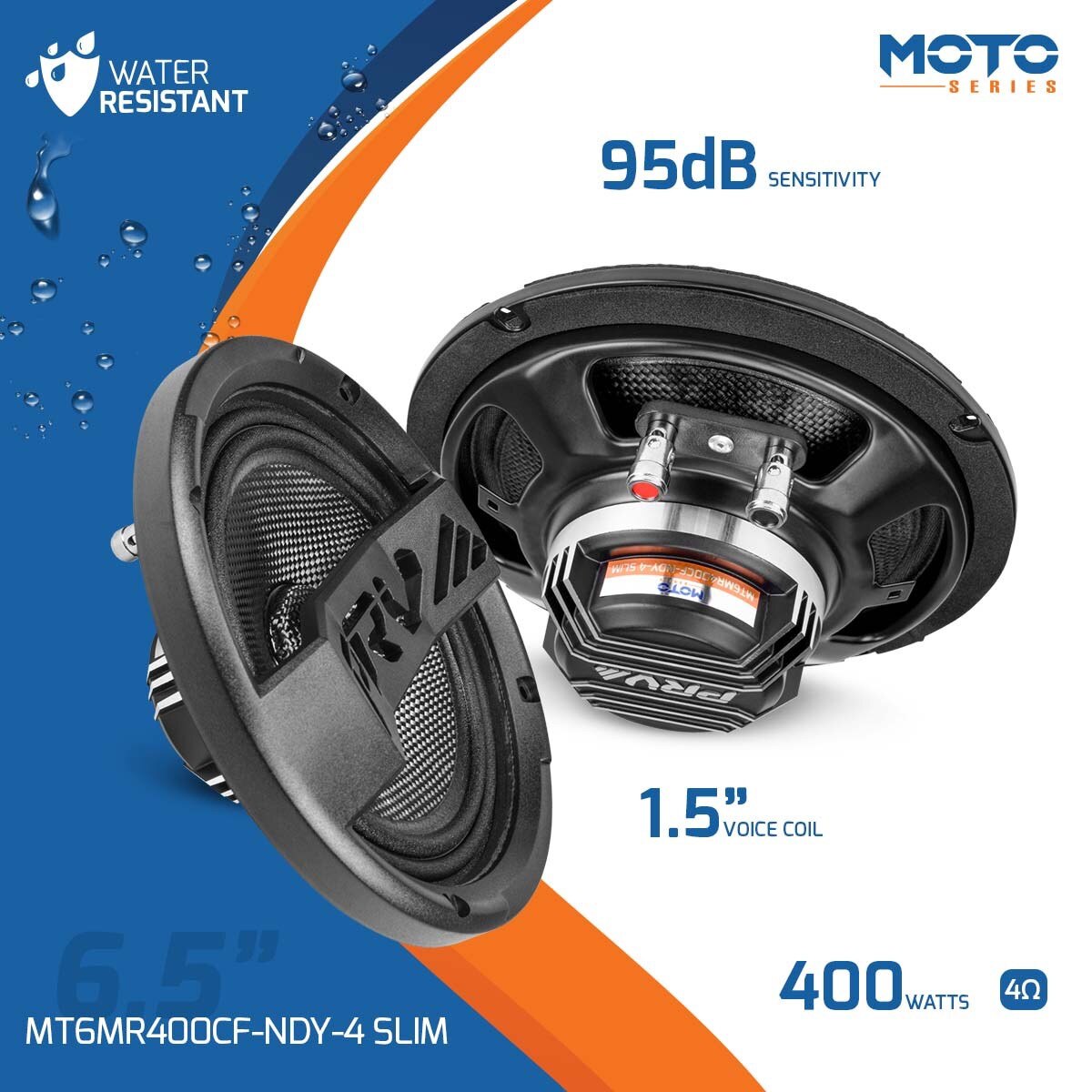

Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s MT6MR400CF-NDY-4 SLIM midrange features a sensitivity of 95 dB (2.00V/1m) and weighs about 1.63 pounds! 4 ohm impedance.
MOTO Series is dedicated to delivering outstanding pro audio performance to your motorsports application.
Everything about this speaker has been designed for reliable and consistent high output levels in a wide frequency bandwidth between 120 and 12,000 Hz, giving you the option of eliminating the need for a super tweeter on your system!
