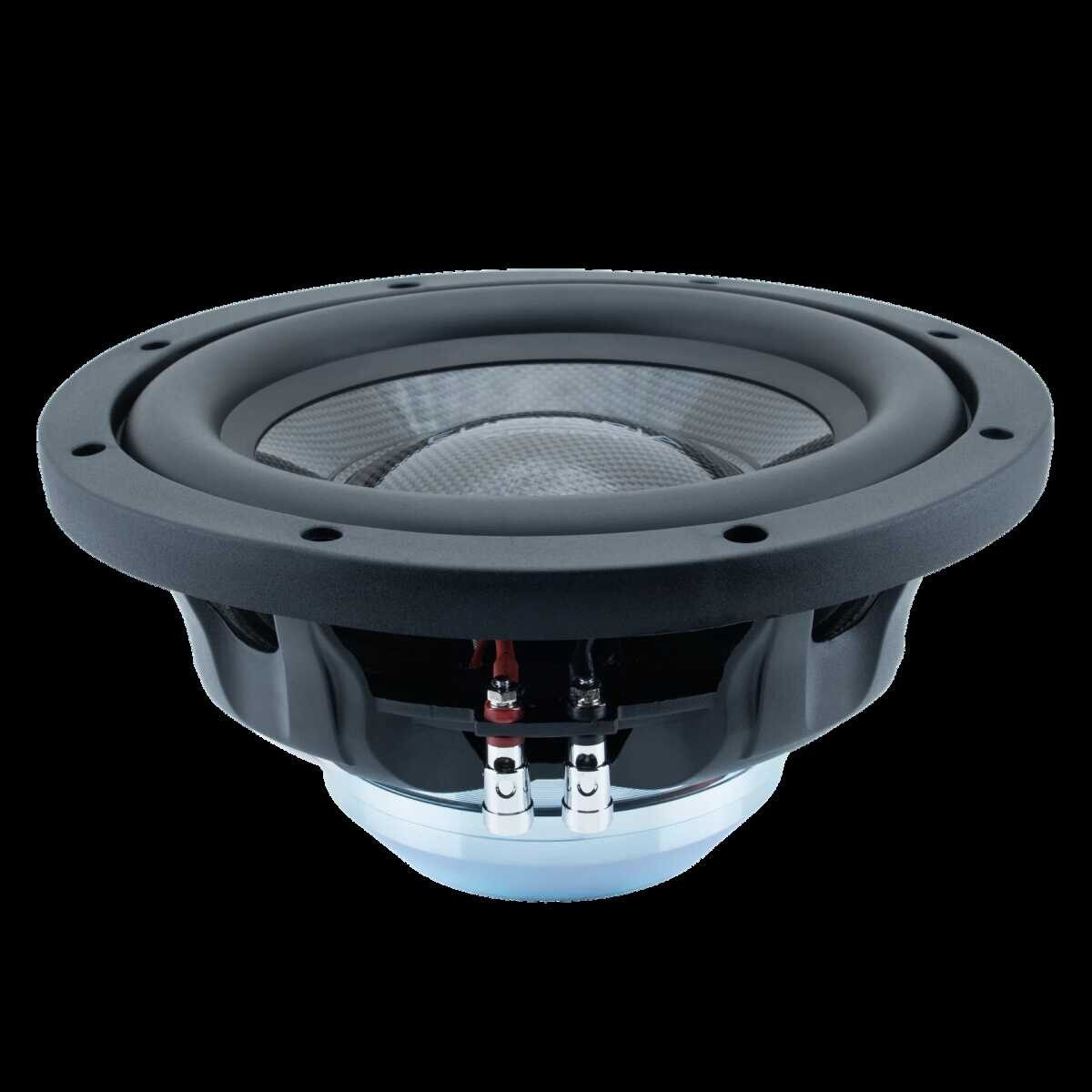

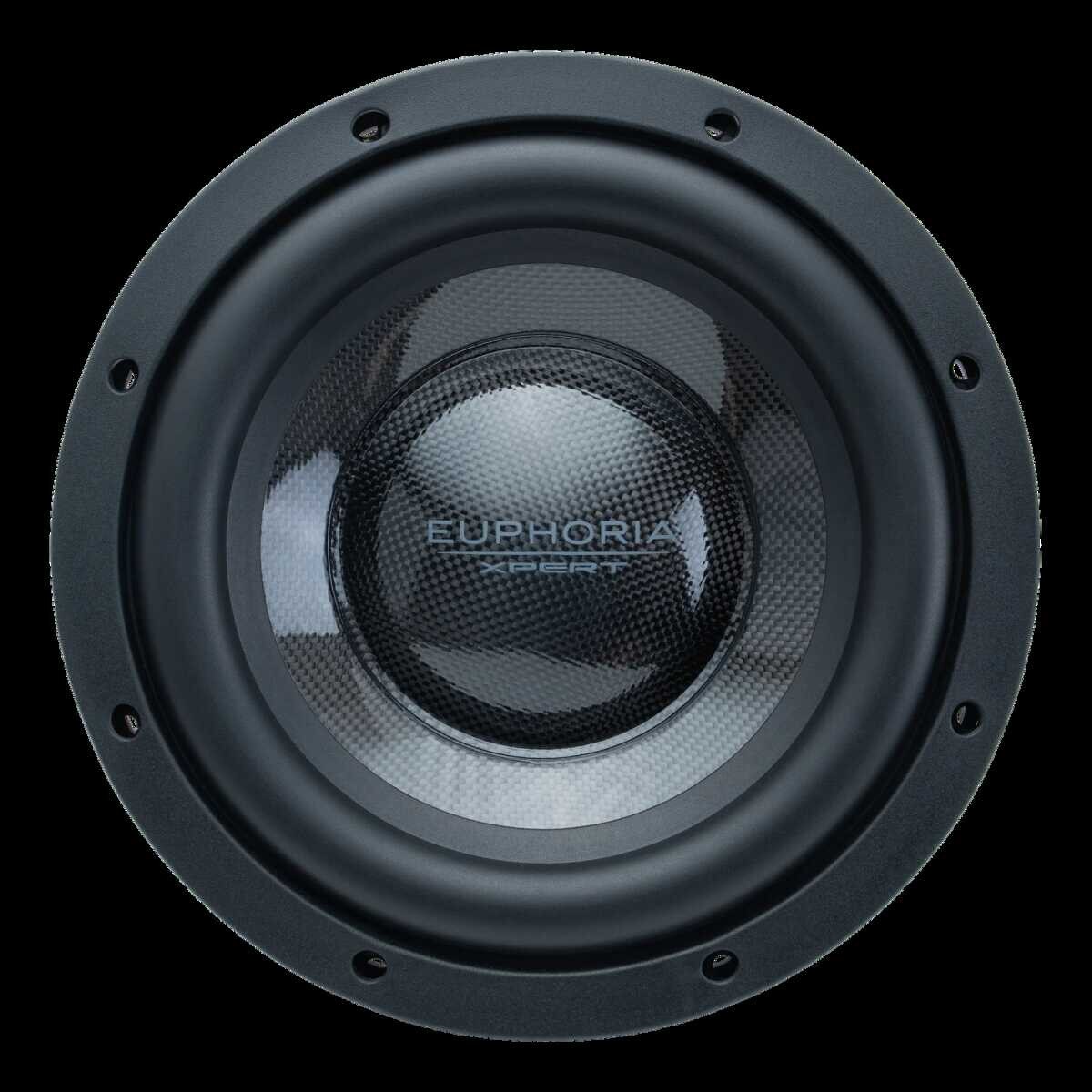

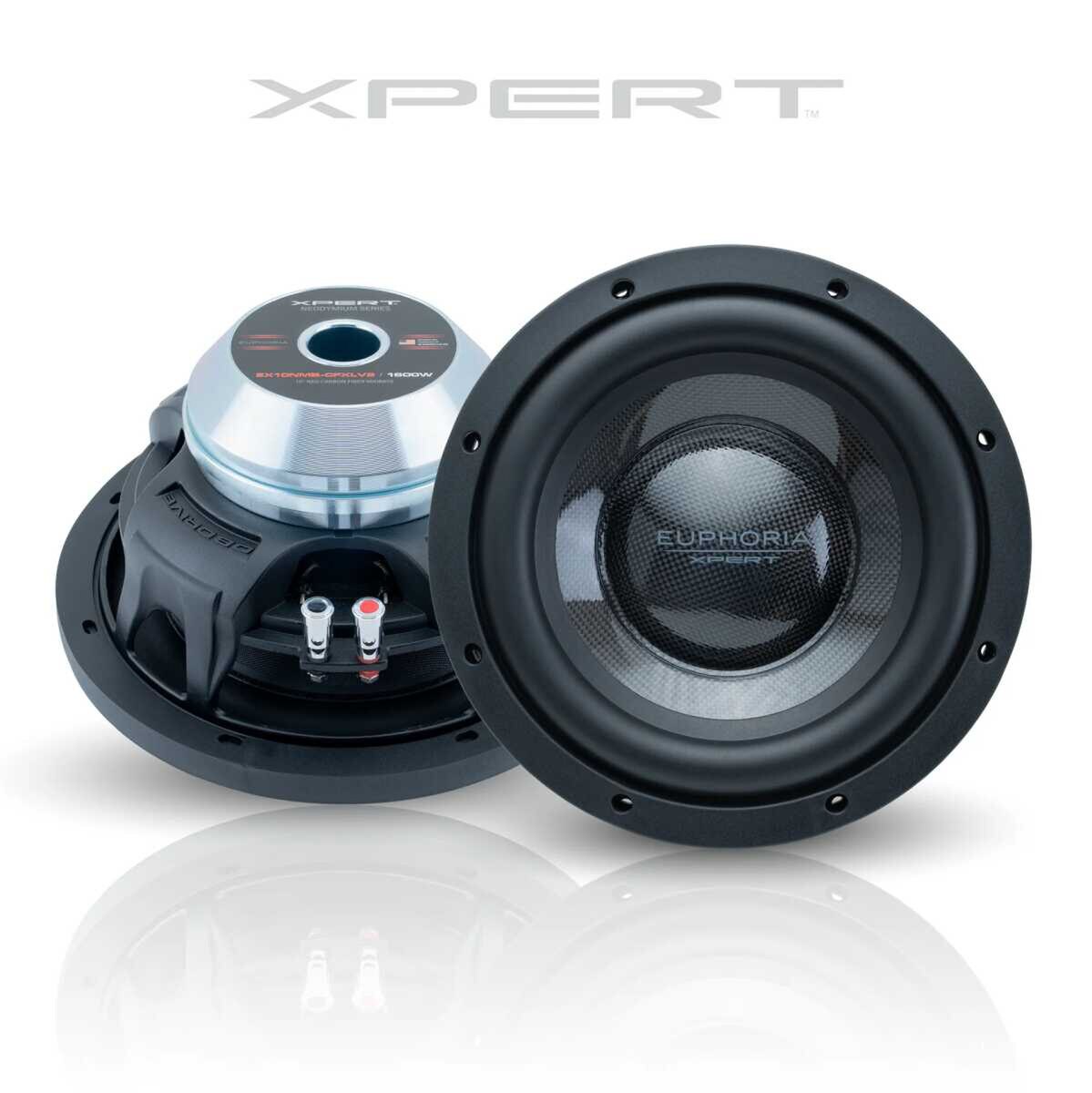

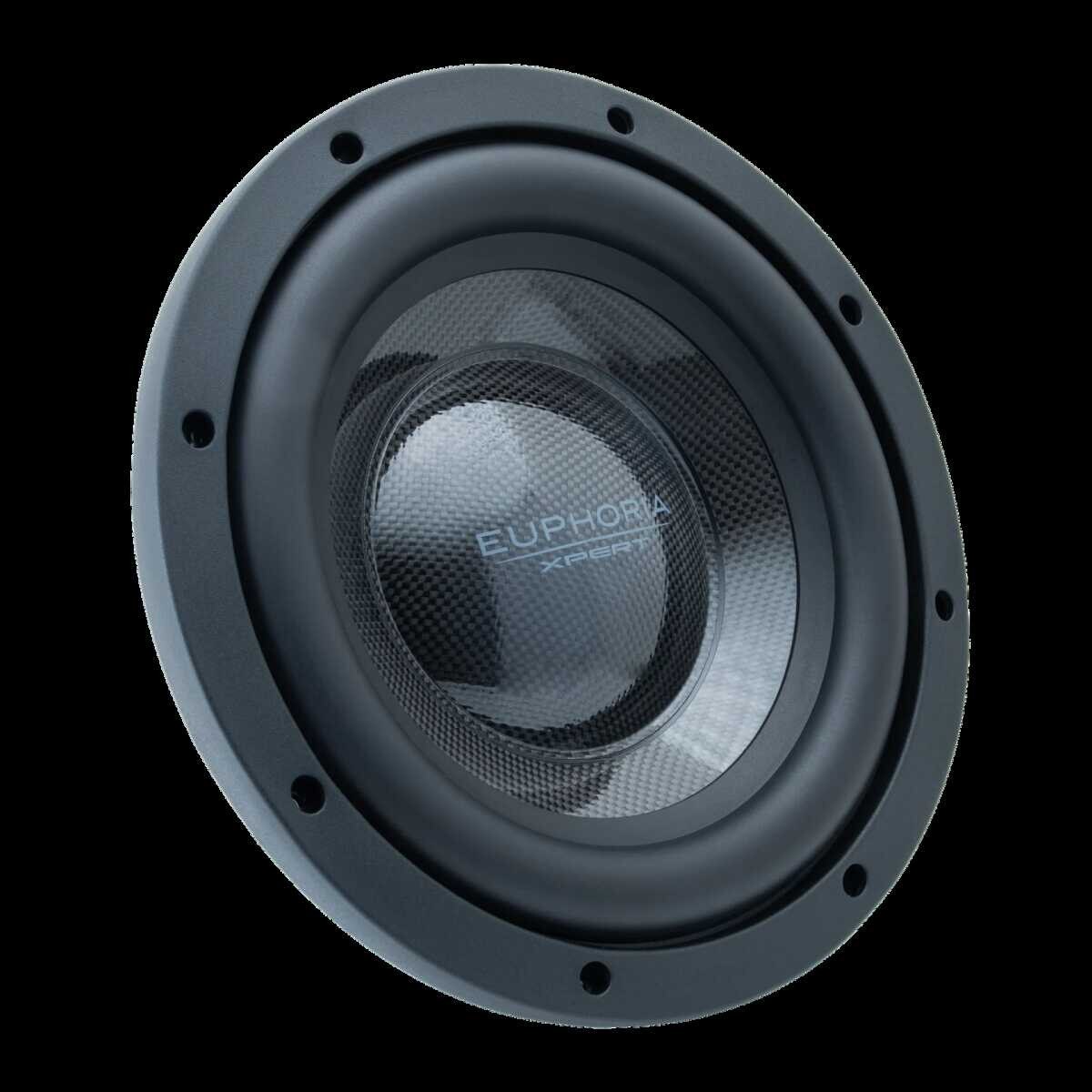

EXPERT LIMITED EDITION CARBON FIBER 10" 1600 WATT MIDBASS (EX10NMB-CFXLV2)

3″ (63.5mm) Voice Coil

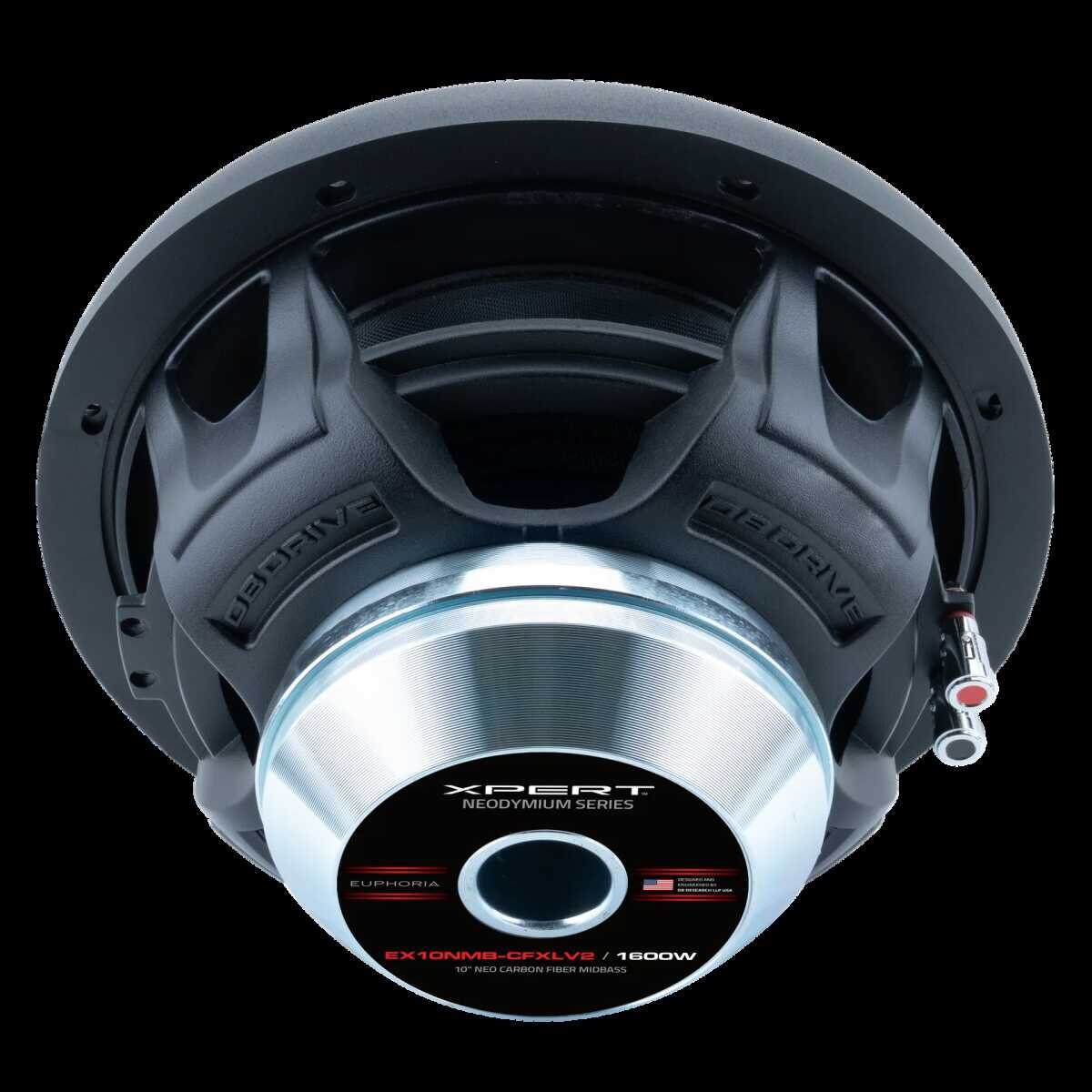

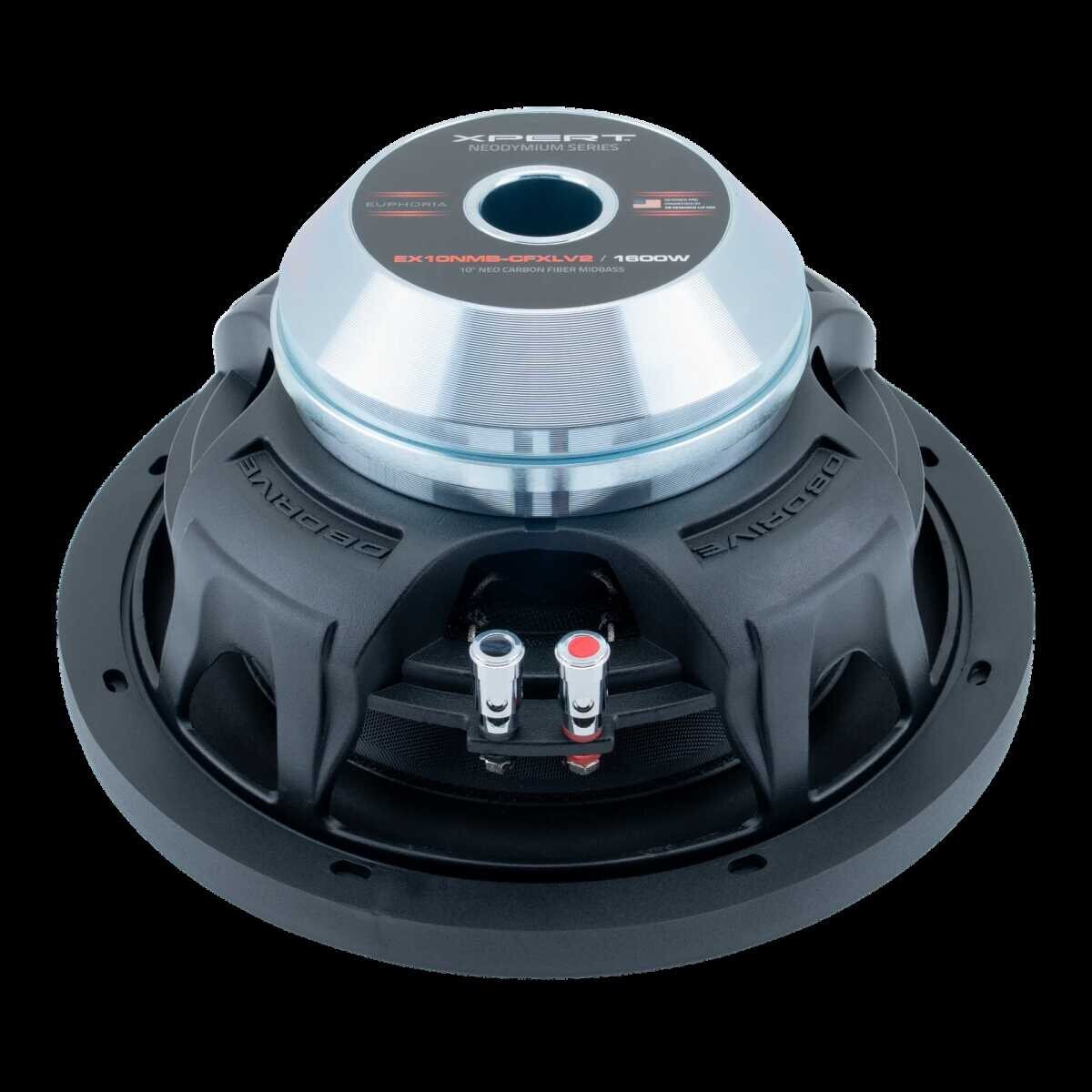

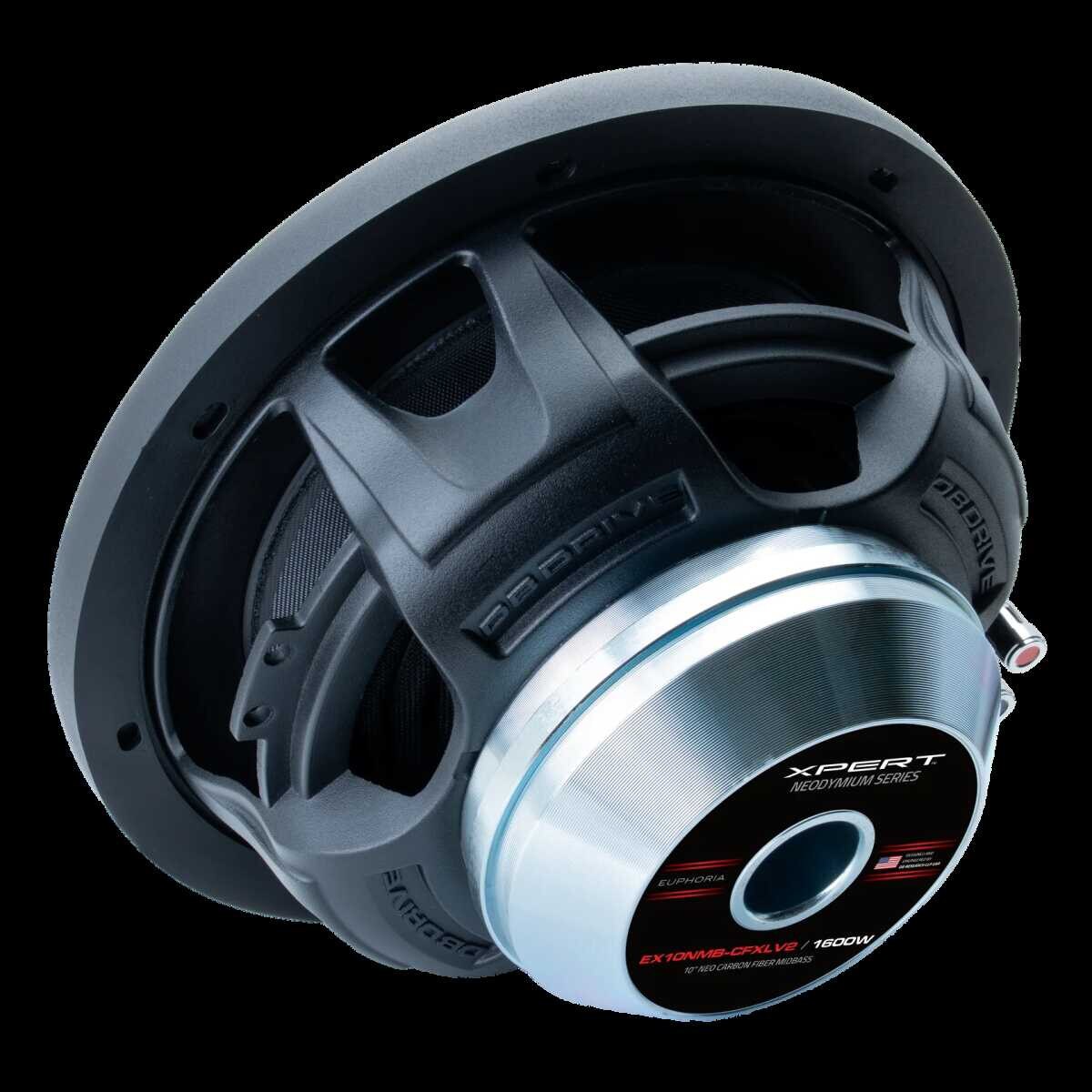

Neodymium M-Ring Magnet Assembly
Optimized for High Output SQ Sound Systems

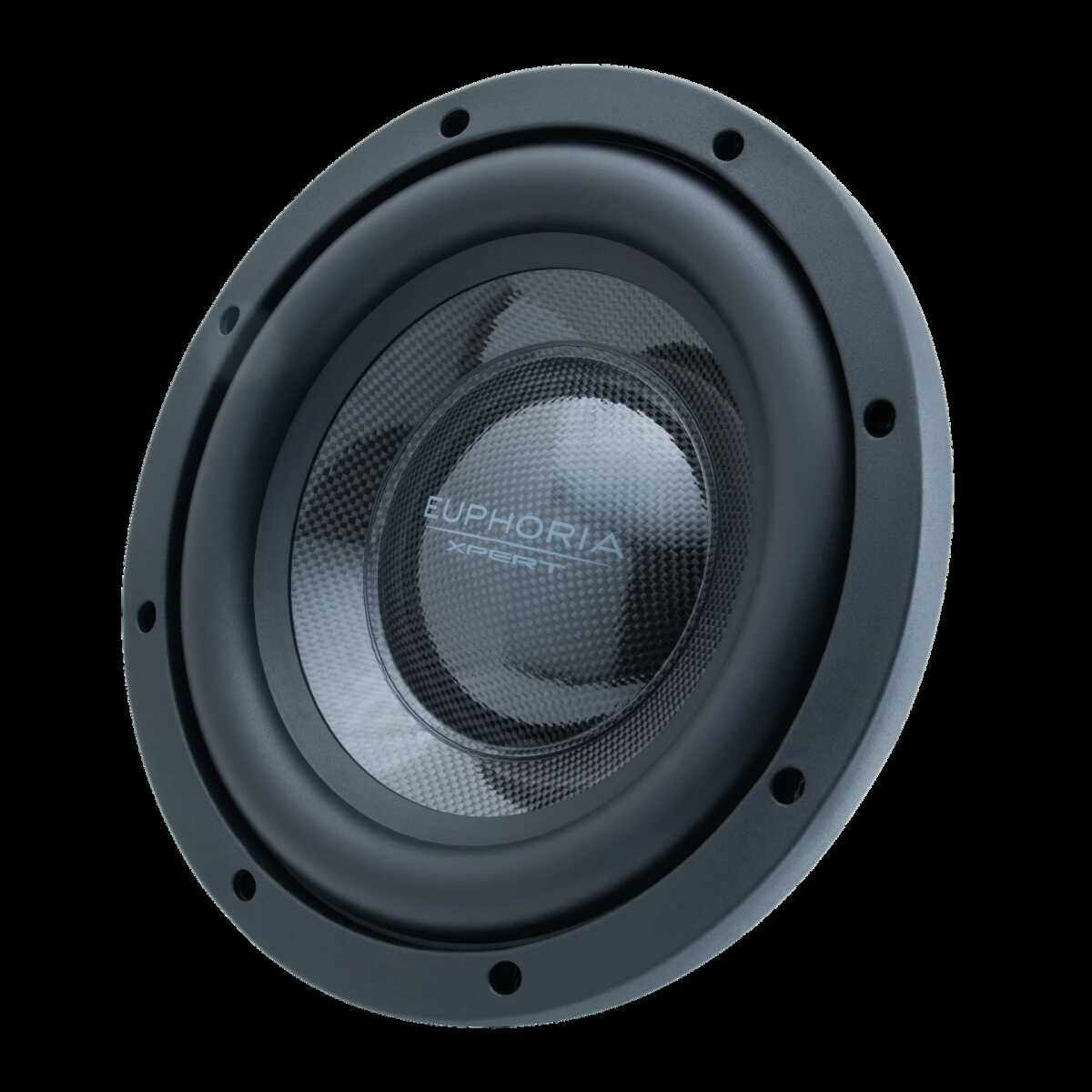

Weather Resistant Carbon Fiber Cone with Rubber Surround
Power Handling: 800 Watts
Dynamic Wattage: 1600 Watts
Resonant Frequency (fs): 78.70 Hz
D.C. Voice Coil Resistance (Re): 3Ω
Mechanical Quality Factor (Qms): 4.04
Electrical Quality Factor (Qes): 0.96
Total Quality Factor (Qts): 0.77
Compliance Equivalent Volume (Vas): 12.06 L
Mechanical Compliance (Cms): 70.46 mm/N
Sensitivity (1w/1m): 93 dB
Impedance: 3Ω
DIMENSIONS
Overall Diameter: 10.85"/ 275.50 mm
Cutout Diameter: 9.25"/ 234.88 mm

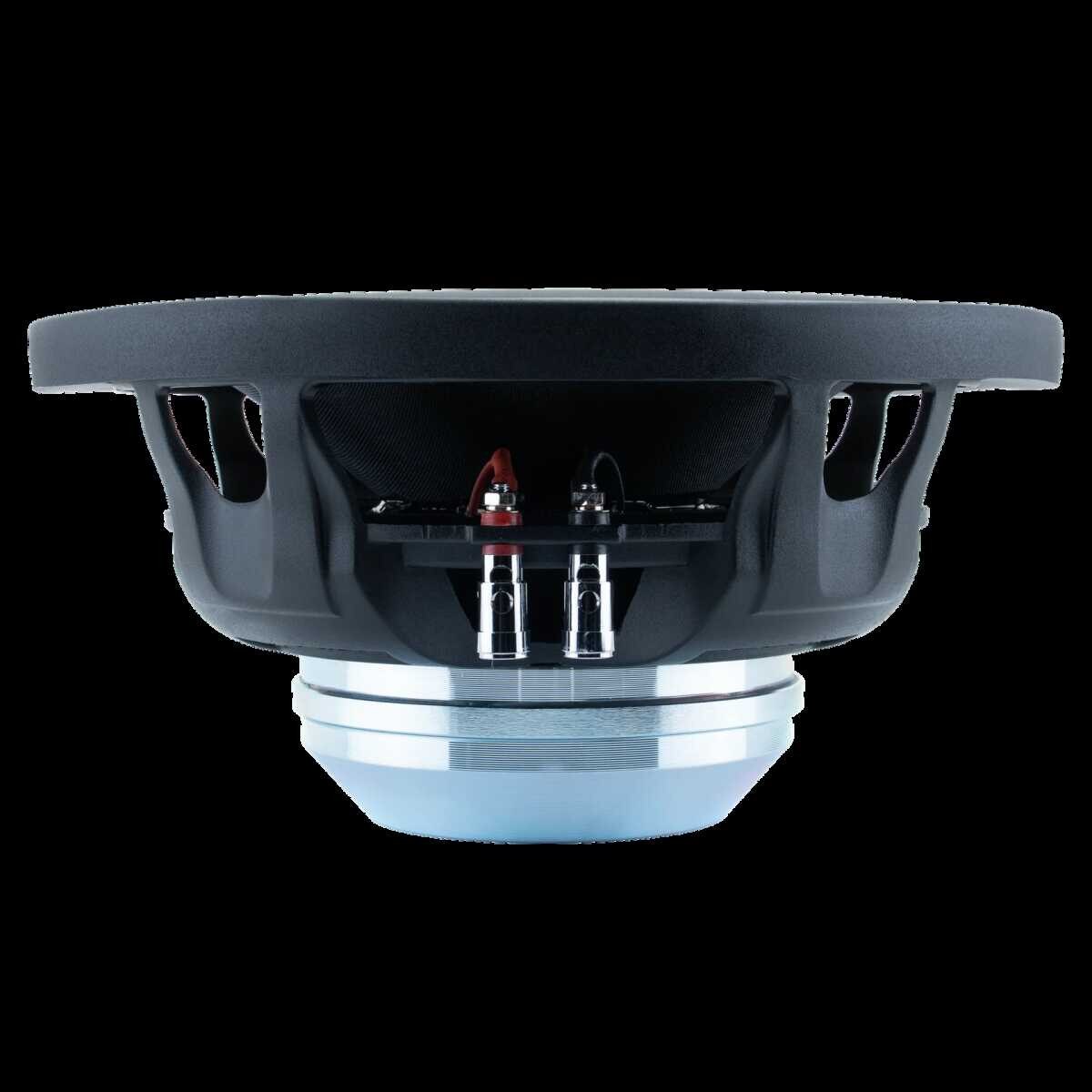

Mounting Depth: 4.64"/ 117.75 mm
