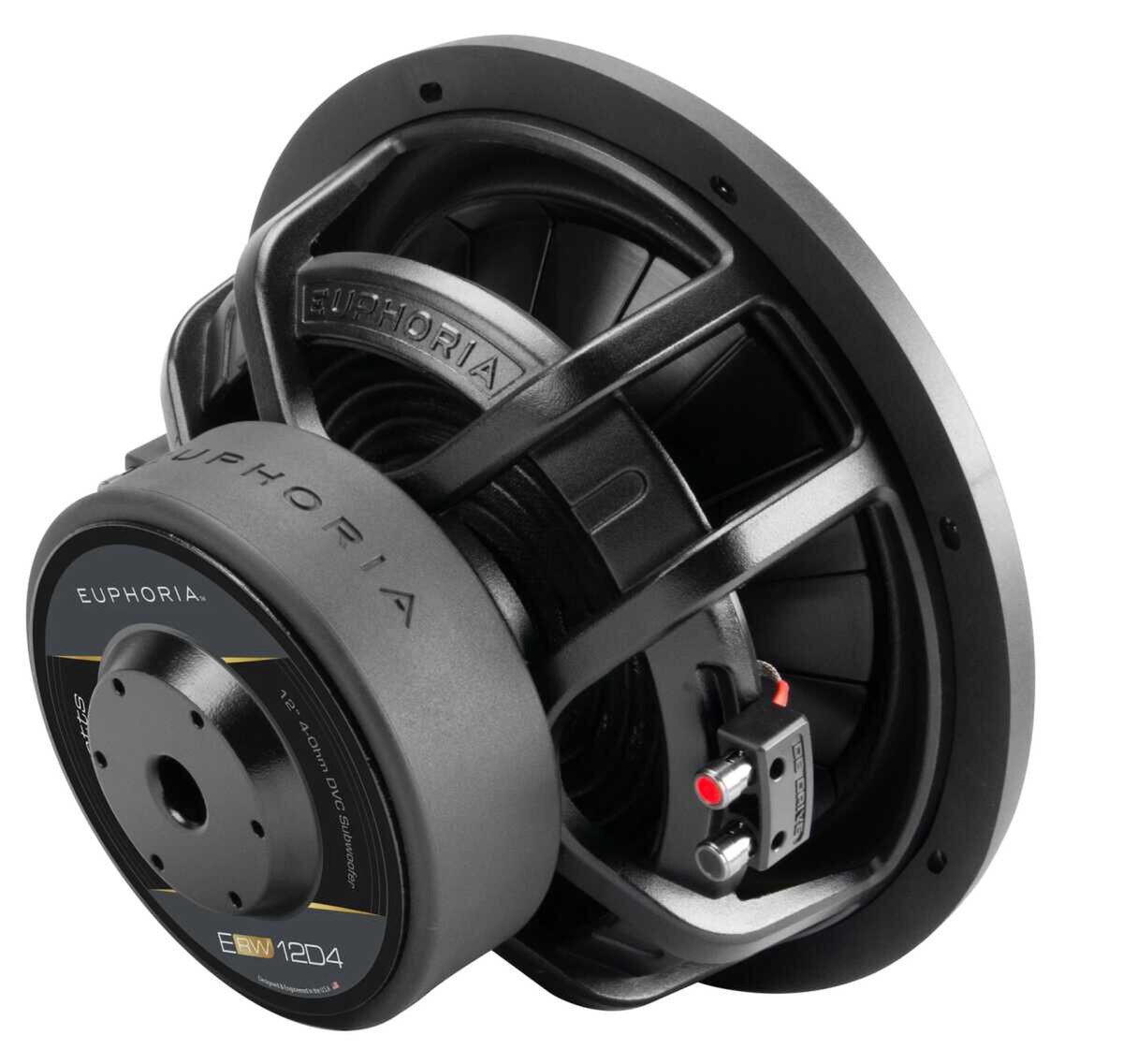

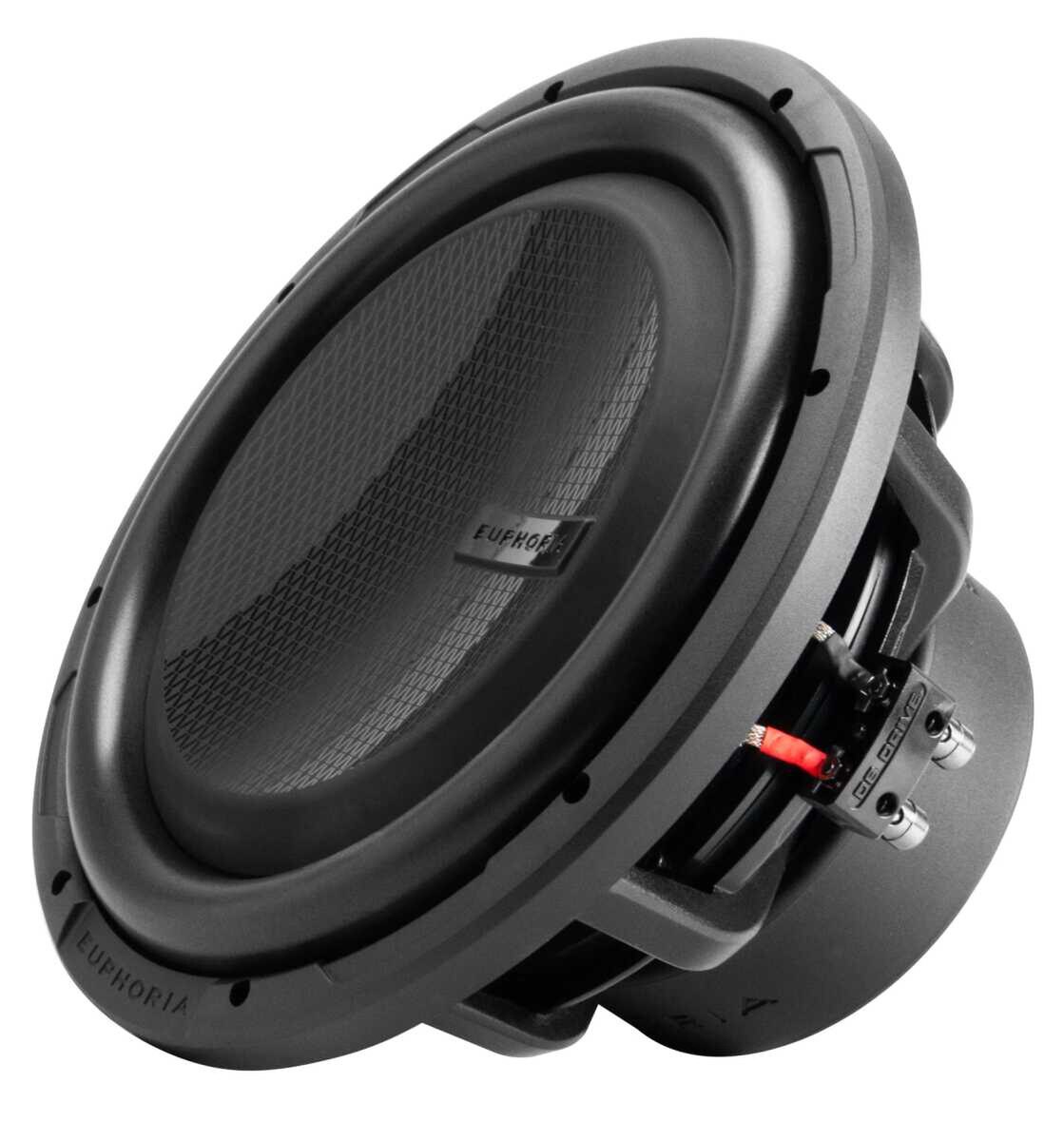

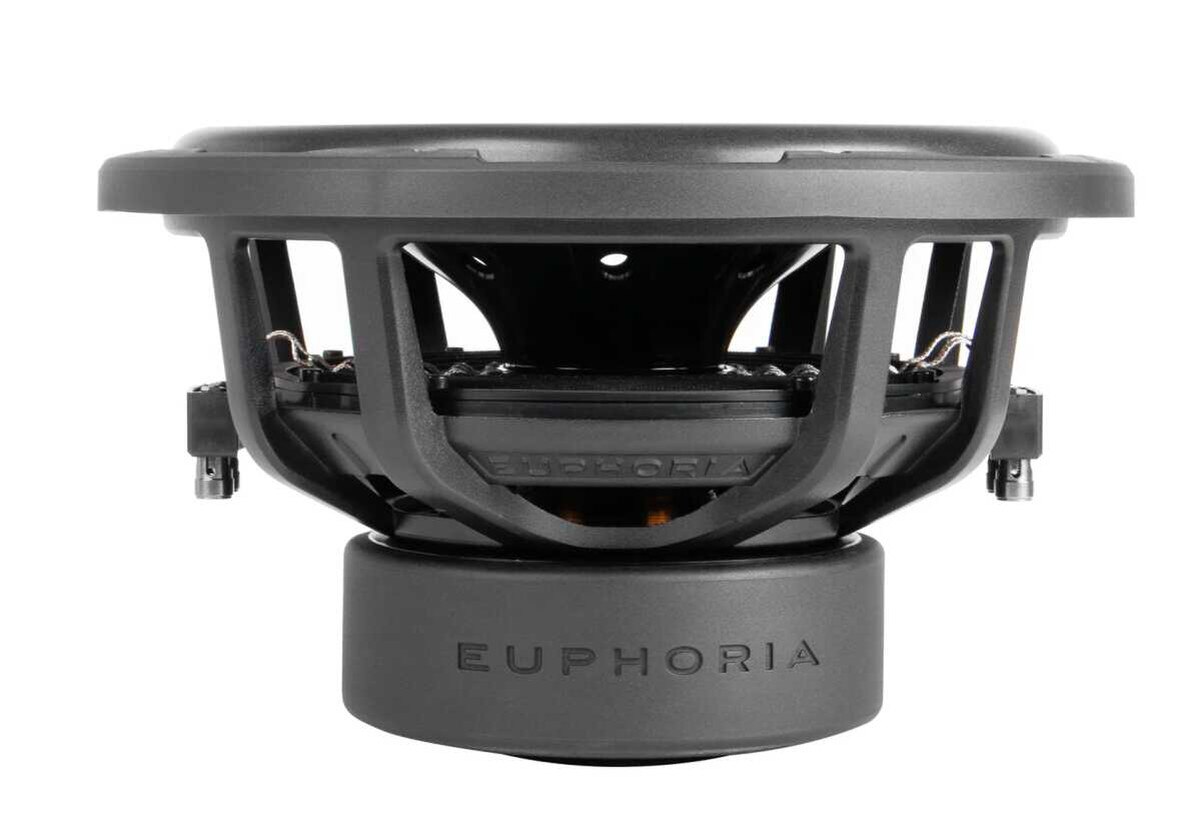

EUPHORIA 1500 WATT 12" DVC 4 OHM SUBWOOFER (ERW12D4)

12 inch die-cast dual 4 ohm voice coil subwoofer

Nominal power handling: 750 watts

Peak power handling: 1500 watts

High temp voice coil wire around vented KSV former

Radial basket vents for improved voice coil cooling

Large gauge push button speaker wire terminals

Proprietary injection molded polypropylene cone

High excursion foam surround

Extended linear roll progressive dampener

Stealth gasket for custom mounting applications

Anti-resonance heavy gauge die-cast basket

Optimized motor for low frequency response

Impedance: dual 4 Ω voice coil

Free air resonance (Fo): 30.500 Hz

D.C. voice coil resistance (Re): 6.800 Ω

Mechanical quality factor (Qms): 4.287

Electrical quality factor (Qes): 0.656

Total quality factor (Qts): 0.569

Equivalent air volume (Vas): 39.894 L

Mass of diaphragm/coil (Mms): 252.790 g

Force factor (BL): 22.405 TM

Sound pressure level (SPL): 84.2 dB

Overall diameter: 12.68″ / 322 mm

Mounting depth: 6.69″ / 170 mm

Cutout diameter: 11.08″ / 281.5 mm
