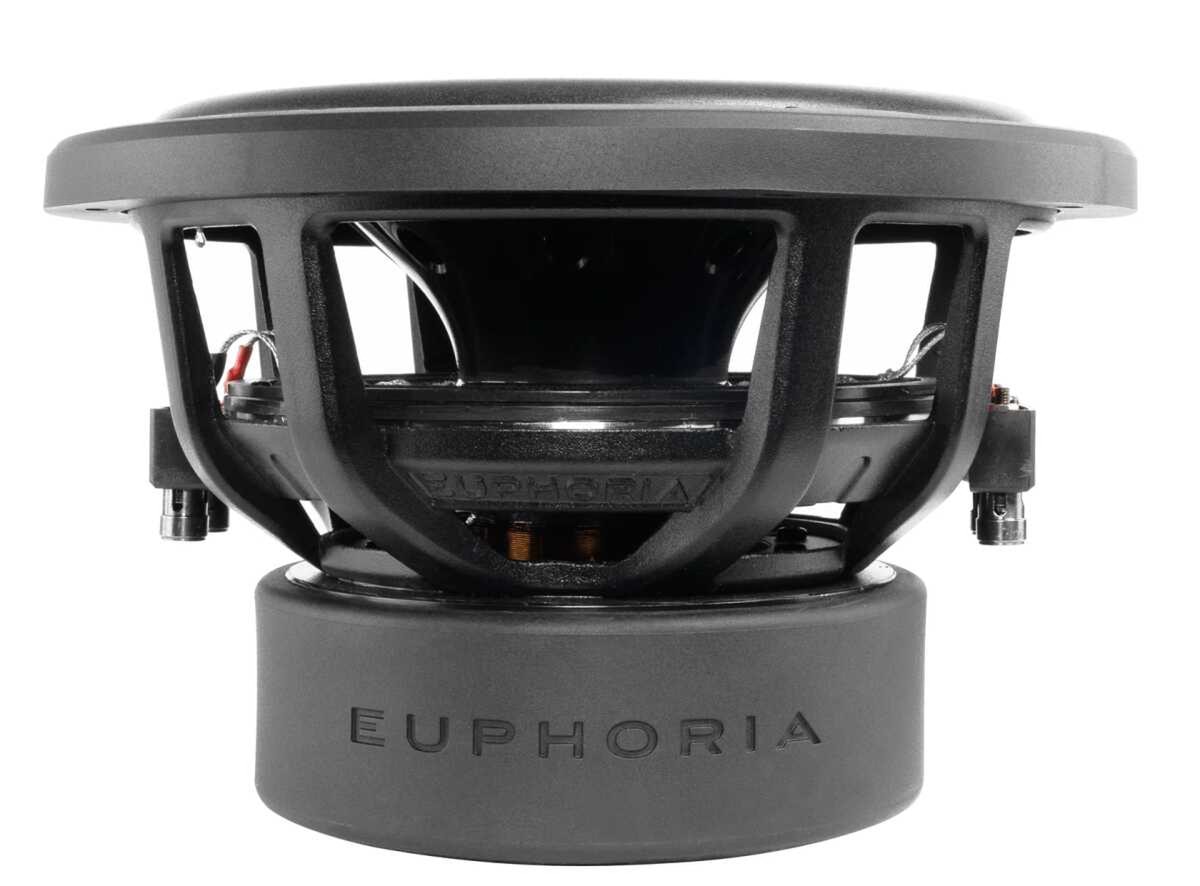

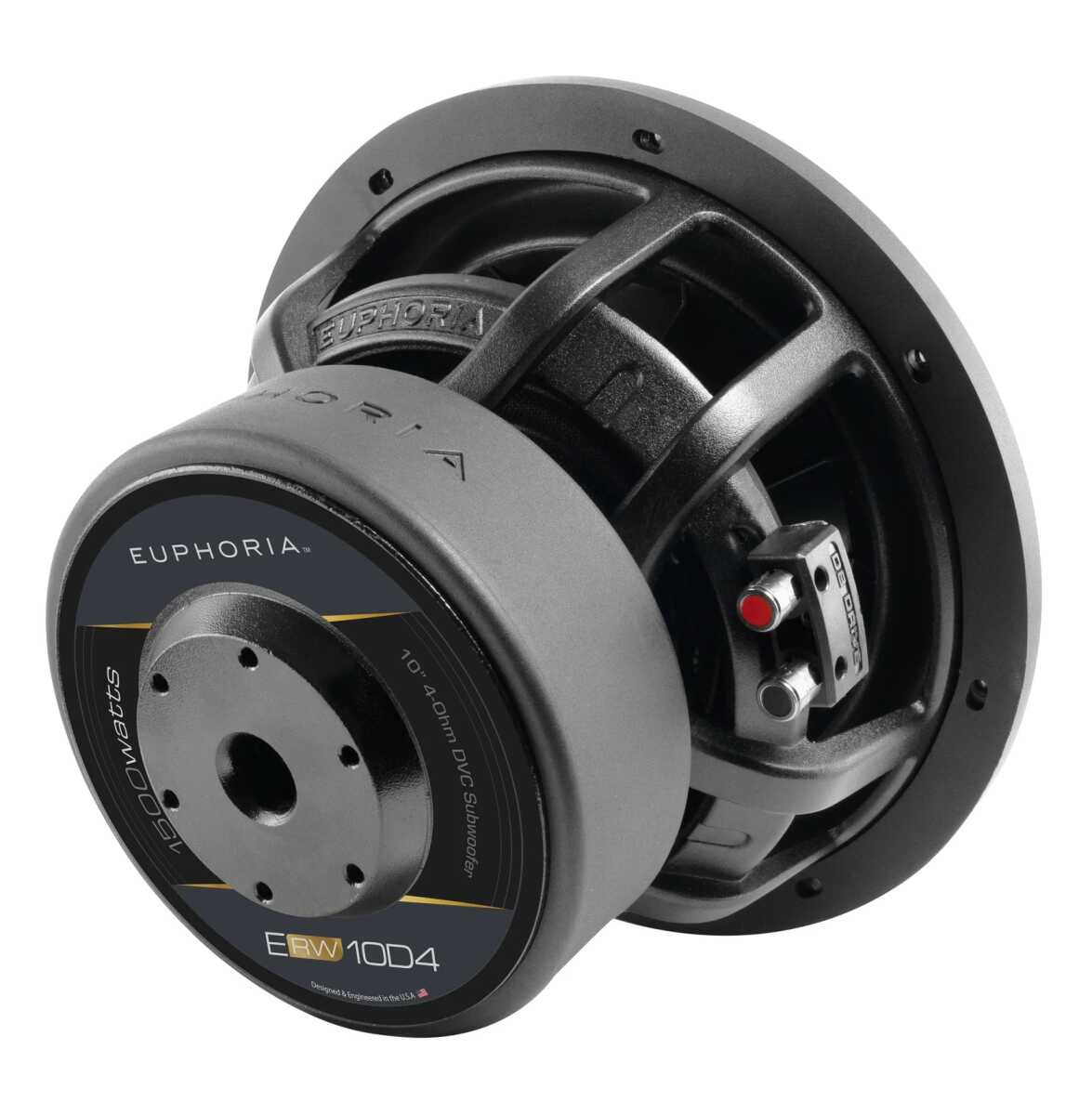

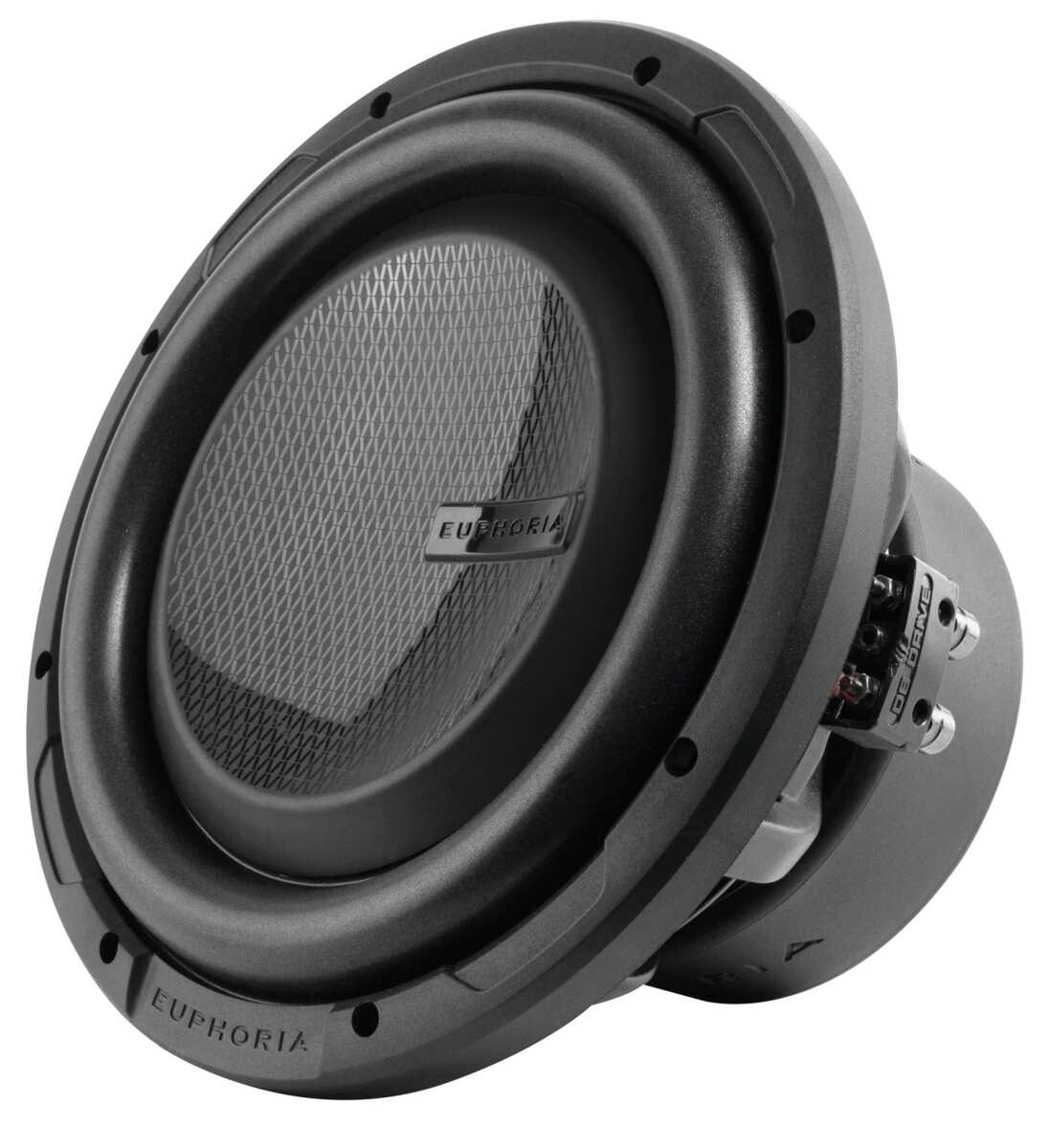

EUPHORIA 1500 WATT 10" DVC 4 OHM SUBWOOFER (ERW10D4)

10 inch die-cast dual 4 ohm voice coil subwoofer
Nominal power handling: 750 watts
Peak power handling: 1500 watts
High temp voice coil wire around vented KSV former
Radial basket vents for voice coil cooling
Large gauge push button speaker wire terminals
Proprietary injection molded polypropylene cone
High excursion foam surround
Extended linear roll progressive dampener
Stealth gasket for custom mounting applications
Anti-resonance heavy gauge die-cast basket
Optimized motor for low frequency response
Impedance: Dual 4 Ω voice coil
Free air resonance (Fo): ~37.408 Hz
D.C. voice coil resistance (Re): ~6.800 Ω
Mechanical quality factor (Qms): ~4.173
Electrical quality factor (Qes): ~0.649
Total quality factor (Qts): ~0.562
Equivalent air volume (Vas): ~12.831 L
Mass of diaphragm/coil (Mms): ~218.236 g
Force factor (BL): ~23.182 TM
Sound pressure level (SPL): ~82 dB
Overall diameter: ~10.71″ / 272 mm
Mounting depth: ~6.24″ / 158.5 mm
Cutout diameter: ~9.13″ / 232 mm
