DIAMOND AUDIO 2000 WATT RMS CLASS D MONO AMP WITH DSP (NEO20001DSP)

Diamond Audio NEO20001DSP 2000W RMS Class D Monoblock Amplifier
2000W RMS x 1 @ 1Ω
1200W RMS x 1 @ 2Ω
700W RMS x 1 @ 4Ω
Full DSP integration

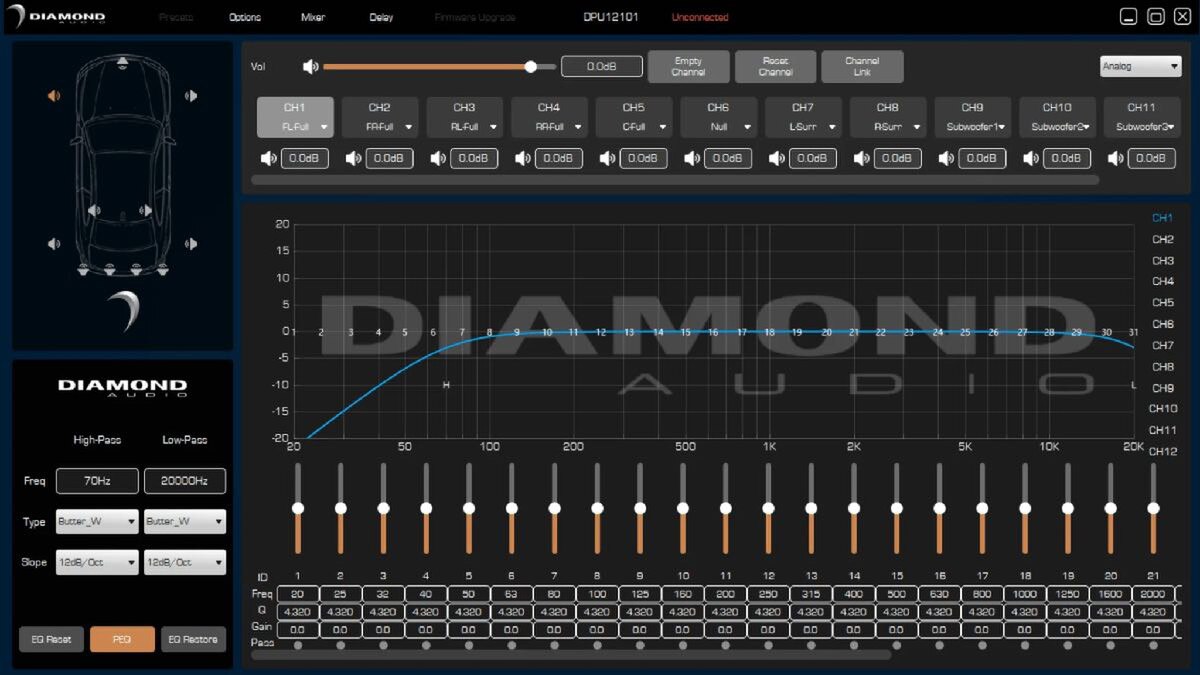

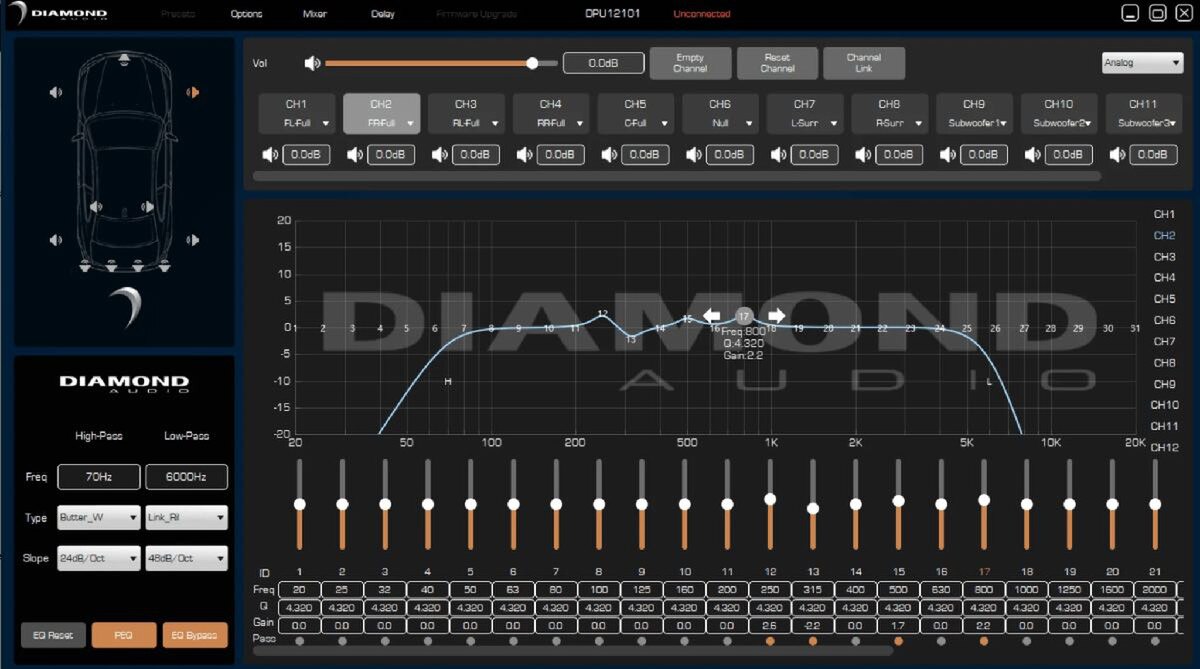

31 band parametric EQ
Crossovers, time delay, channel linking, PC or Android programming
Input Sensitivity: 0.4-20V
High/Low level 20V – 0.4V
Selectable on-board load resistors: 10Ω, 20Ω, 60Ω, 20kΩ
EV friendly voltage compatibility: 8V – 17V
Marine ready, water-resistant chassis

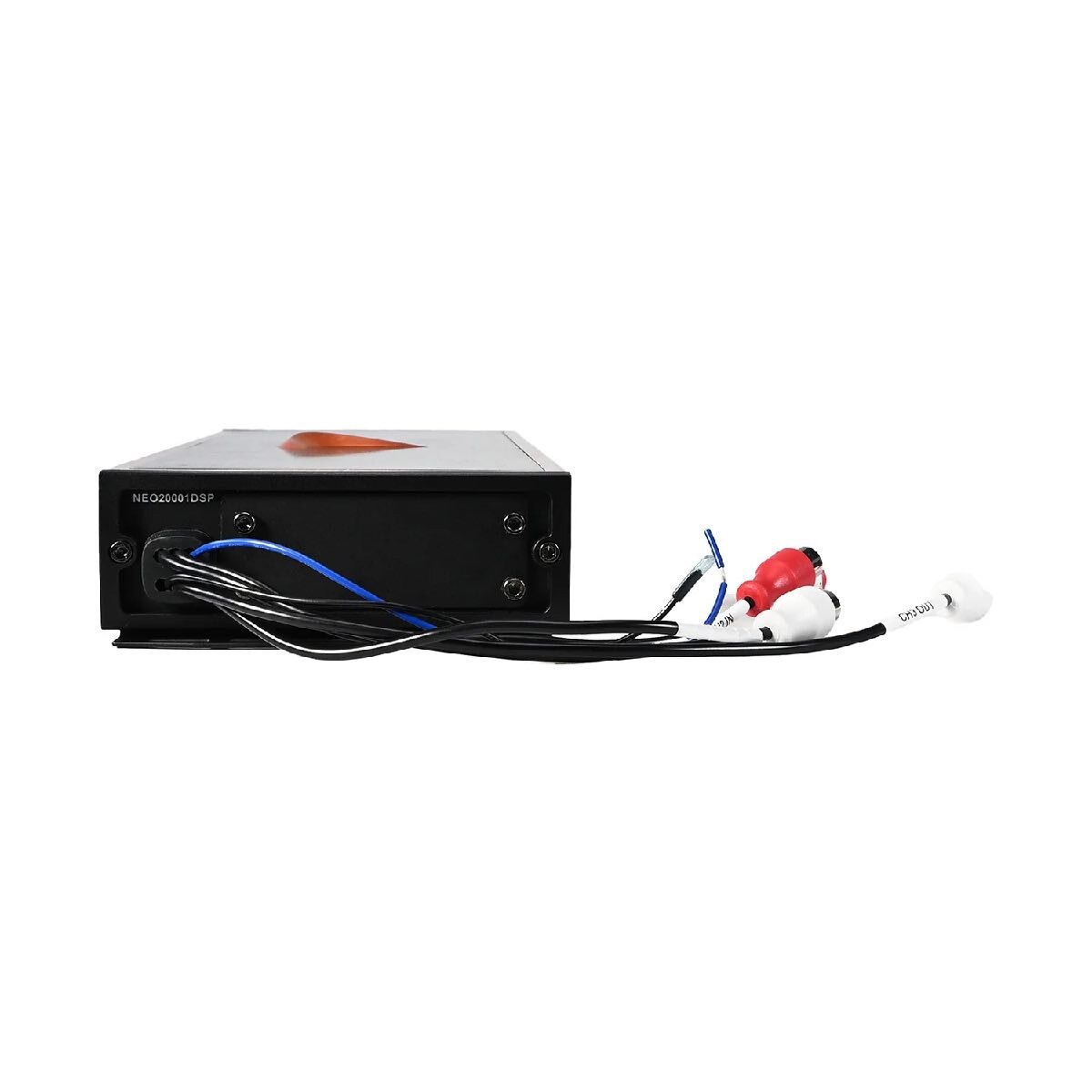

Staggered RCA connections for clean installations

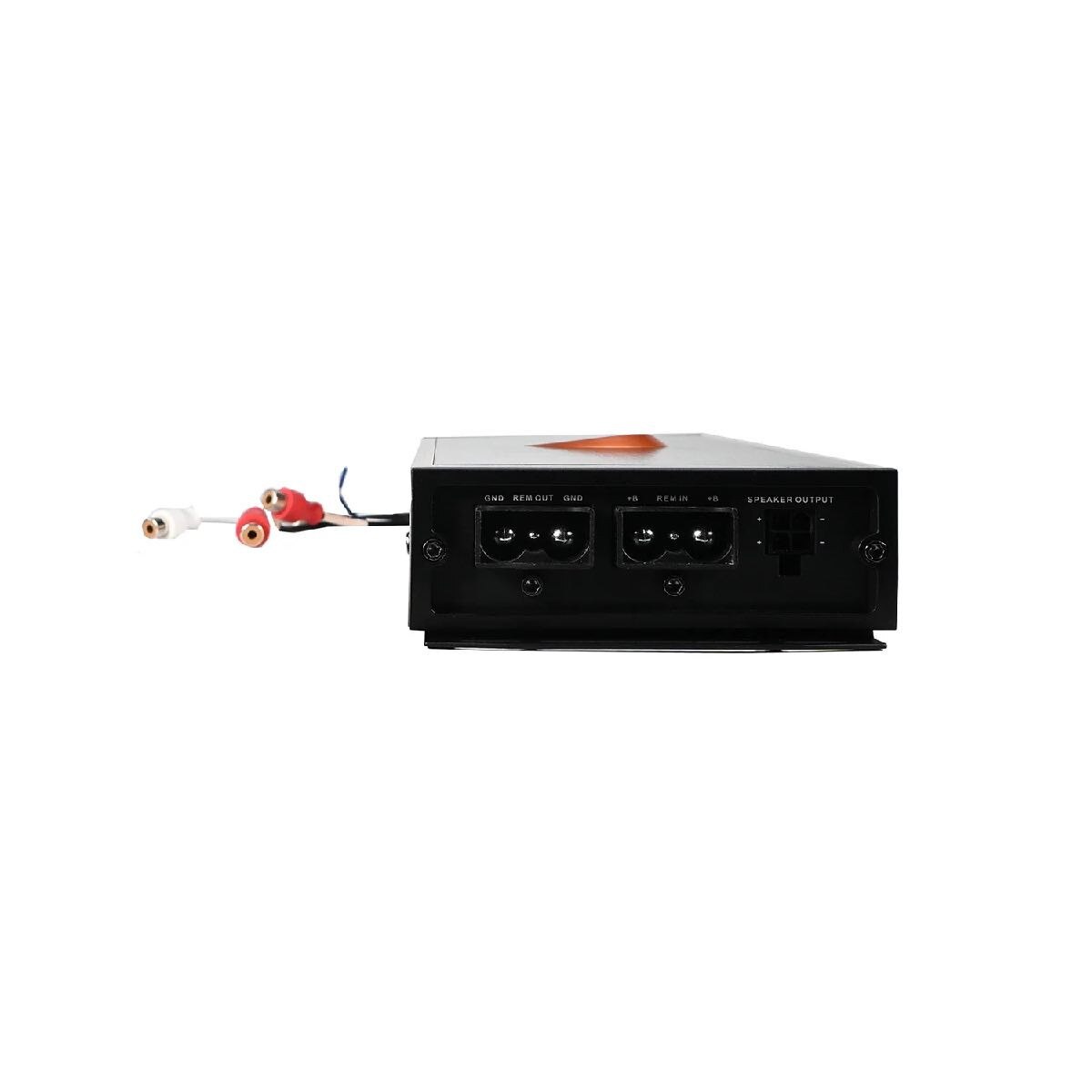

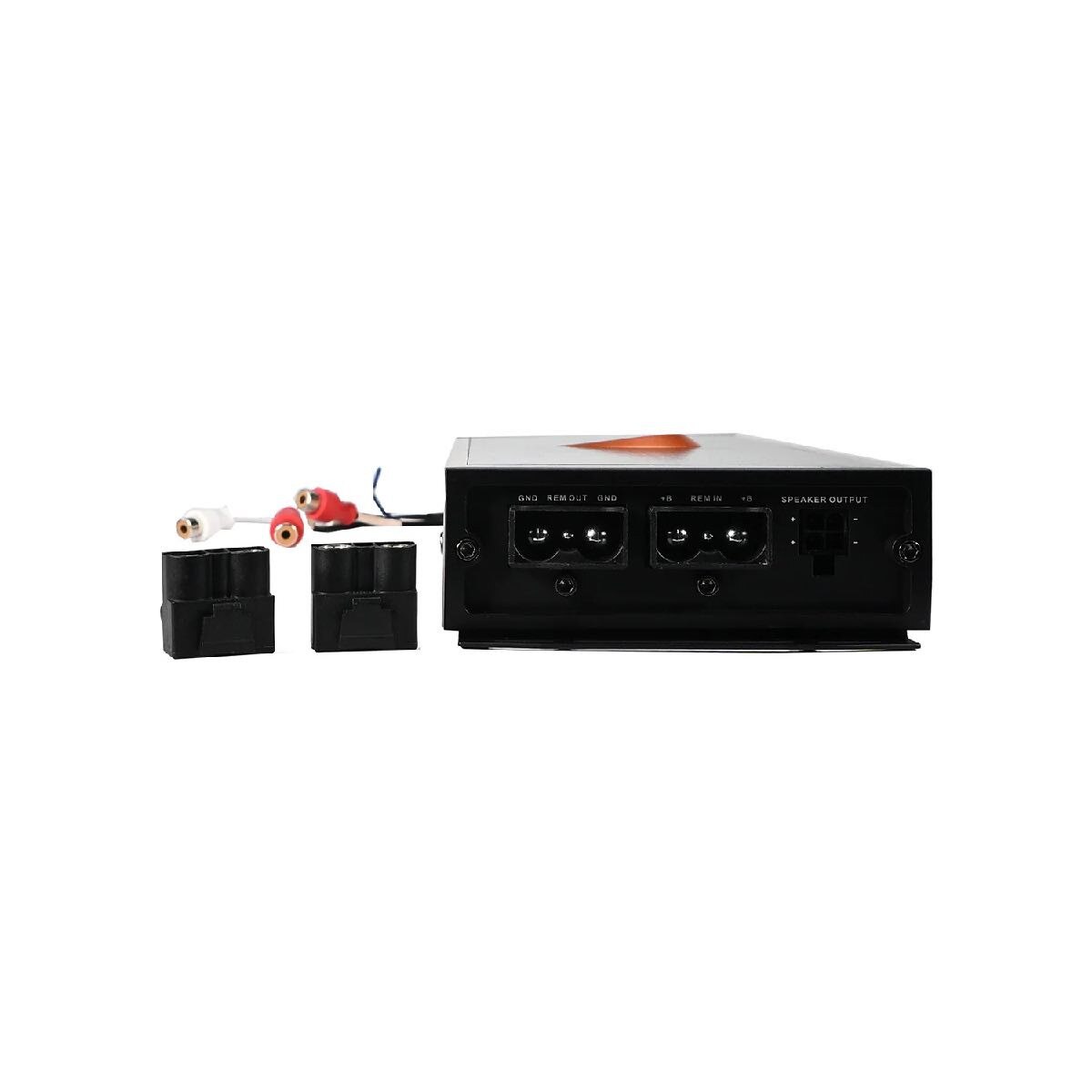

High-current quick-connect power block
NeoDRC1 Diamond Remote Commander compatible, sold separately
2 RCA preamp outputs for system expansion
Ultra-low distortion: 0.05% THD
Frequency Response: 10Hz - 250Hz
Signal to Noise Ratio: 85dB
THD & Noise: ≤0.03%
Dimensions: 223.5 X 103.3 X 35mm / 8.8” X 4.07” X 1.38”
Net Weight: 1.02kg / 2.25lbs
