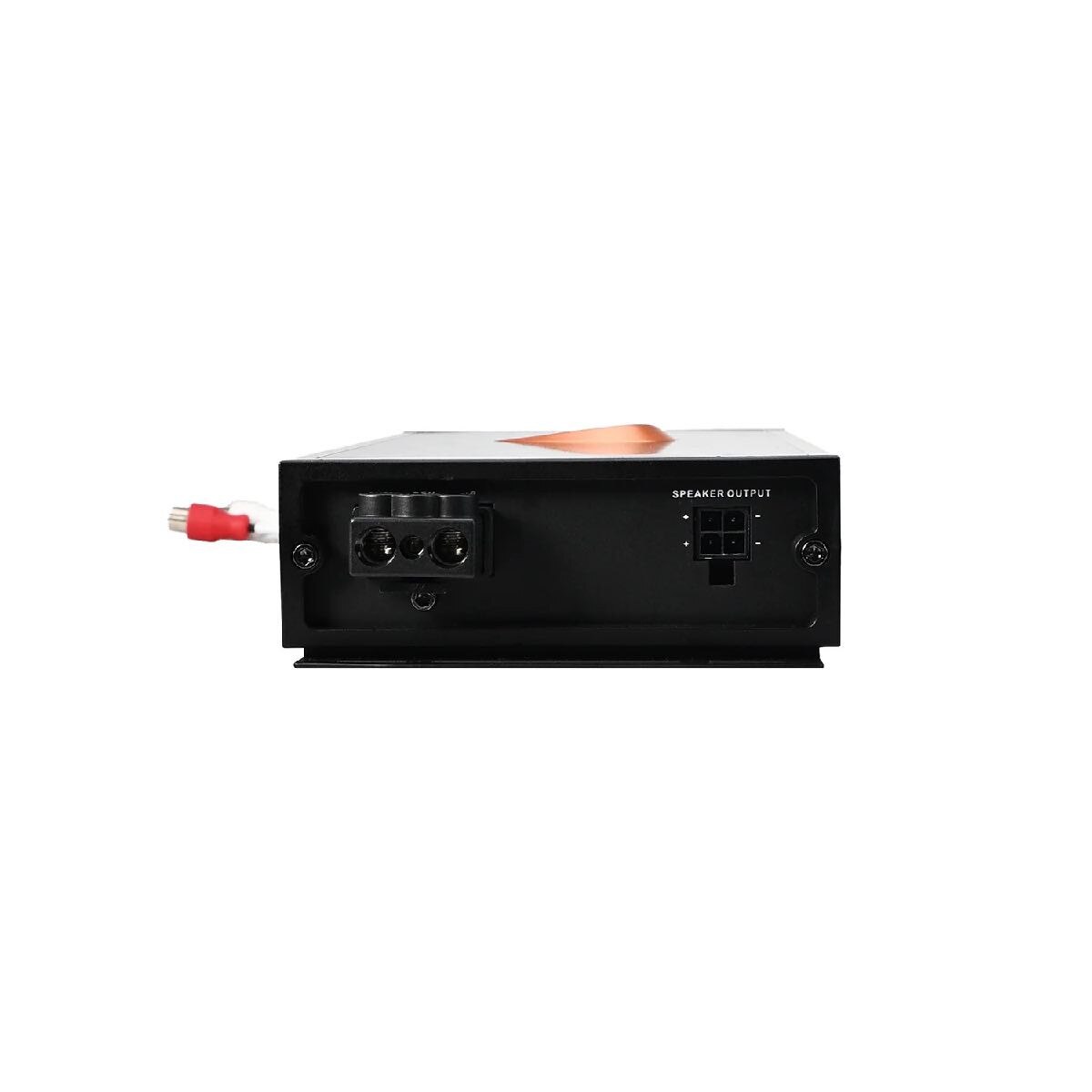

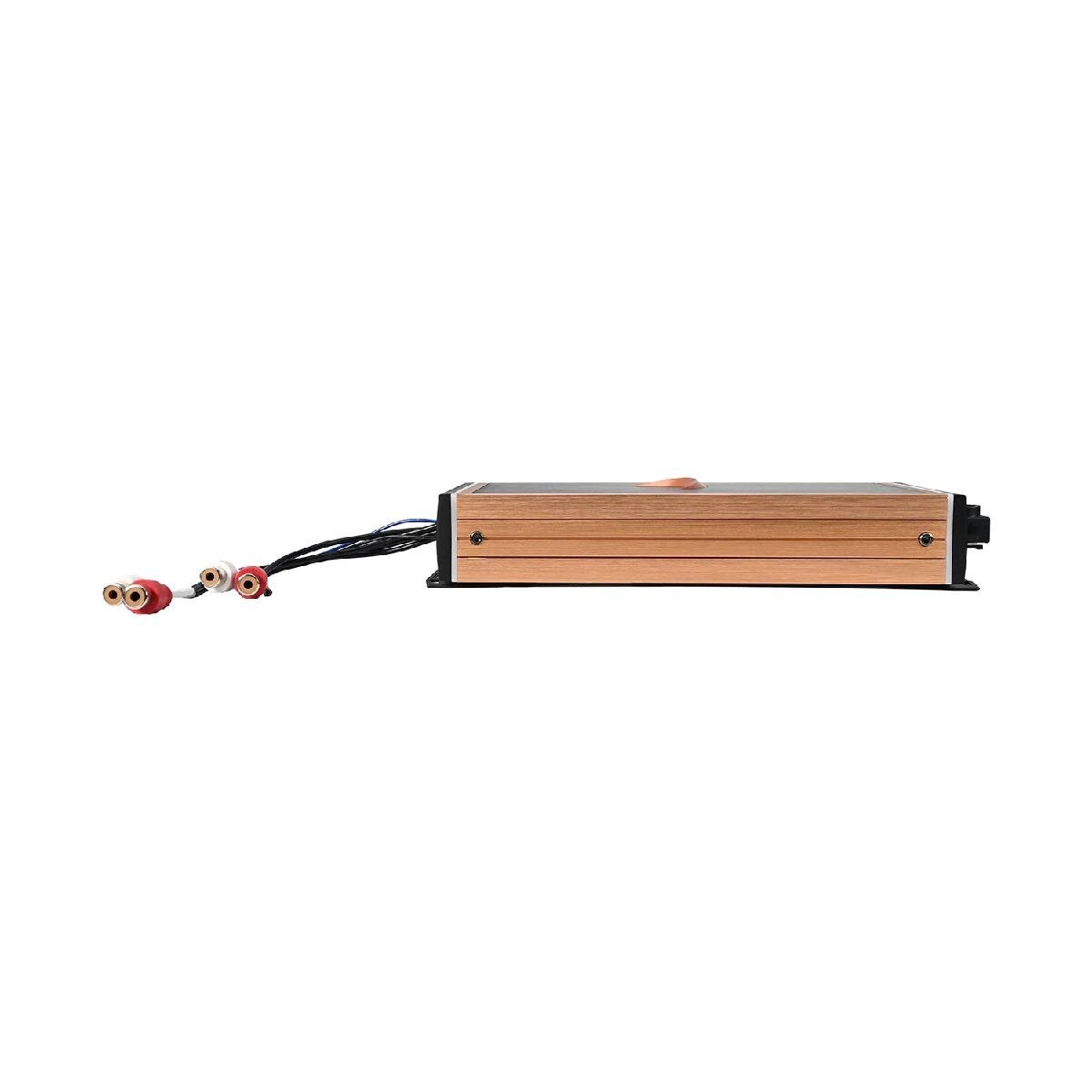

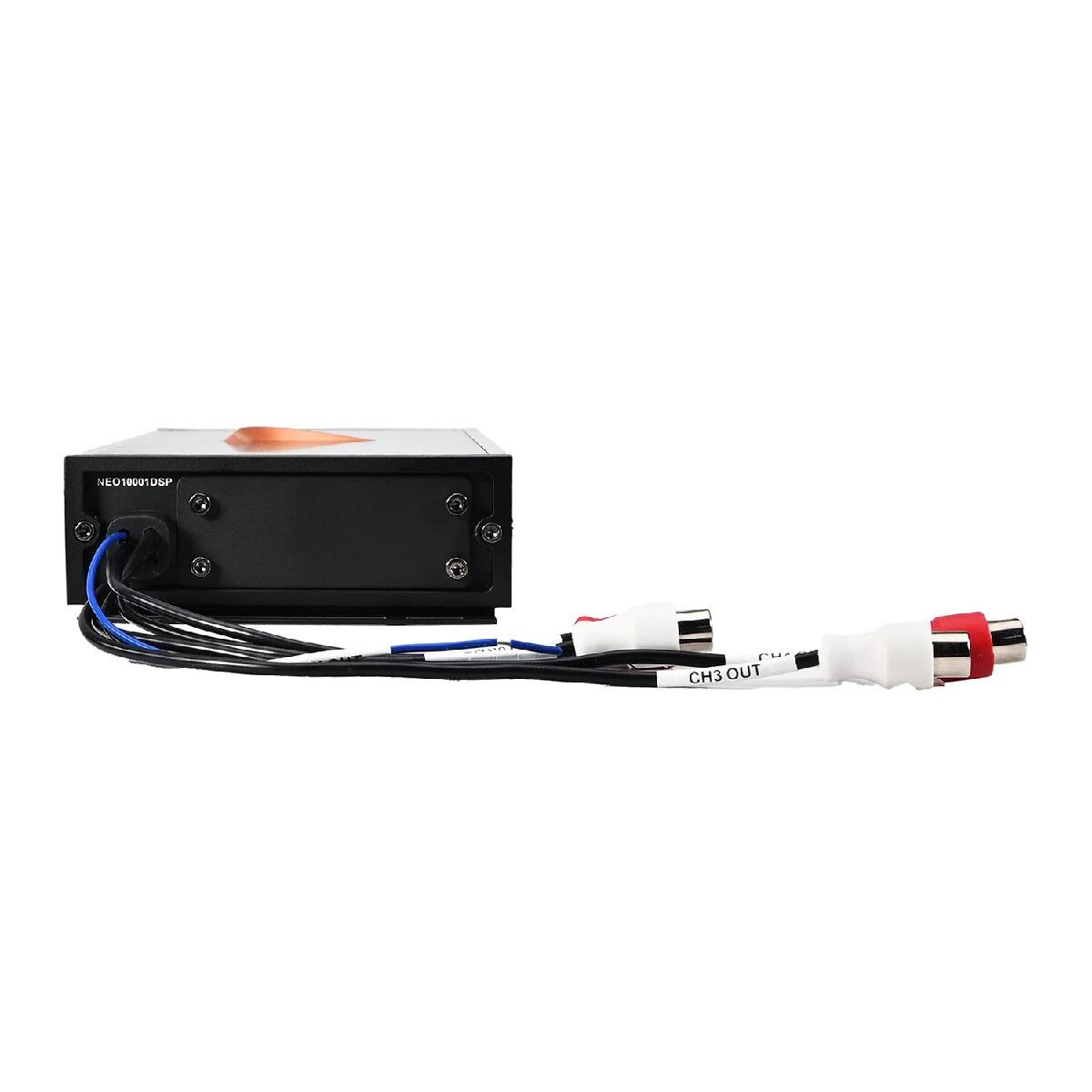

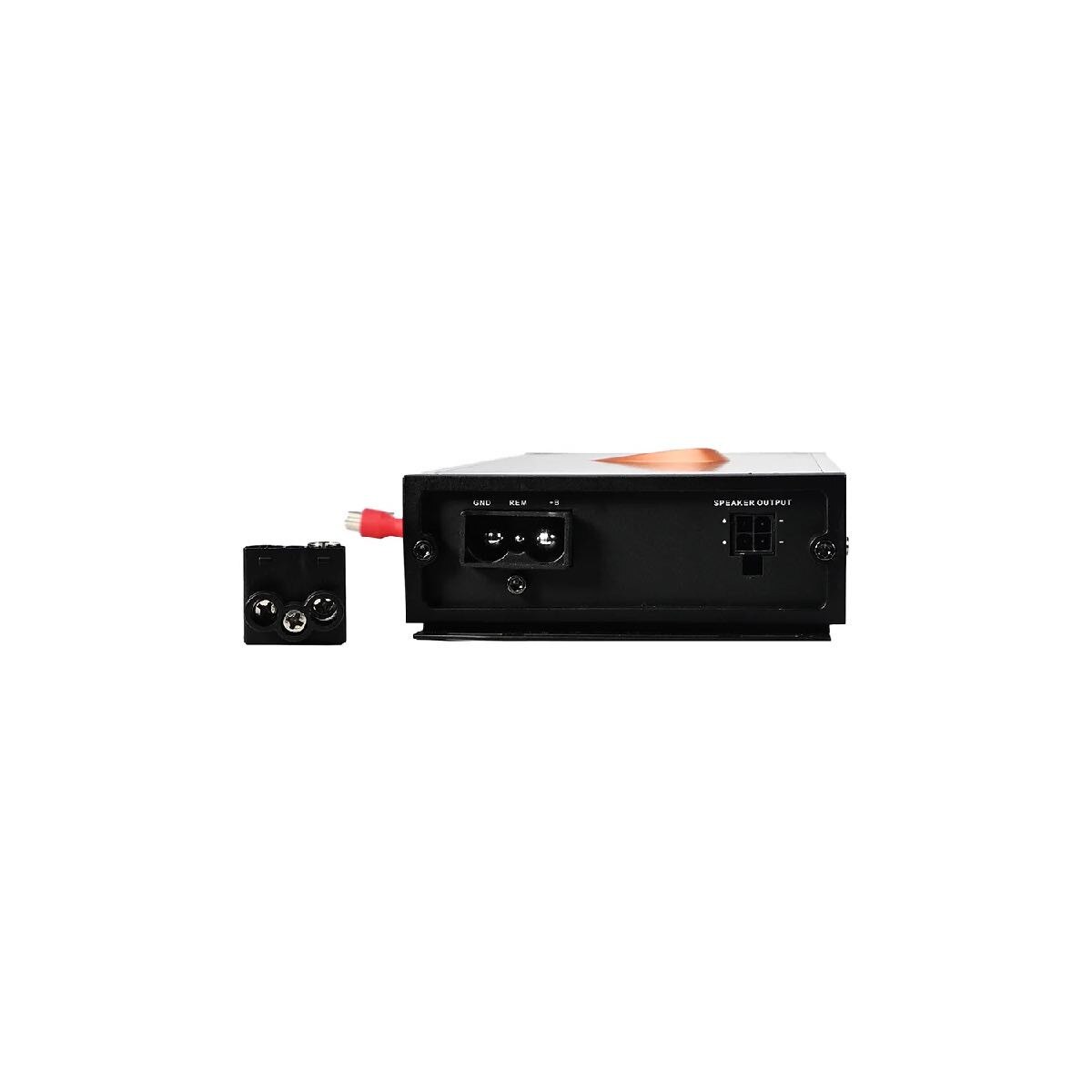

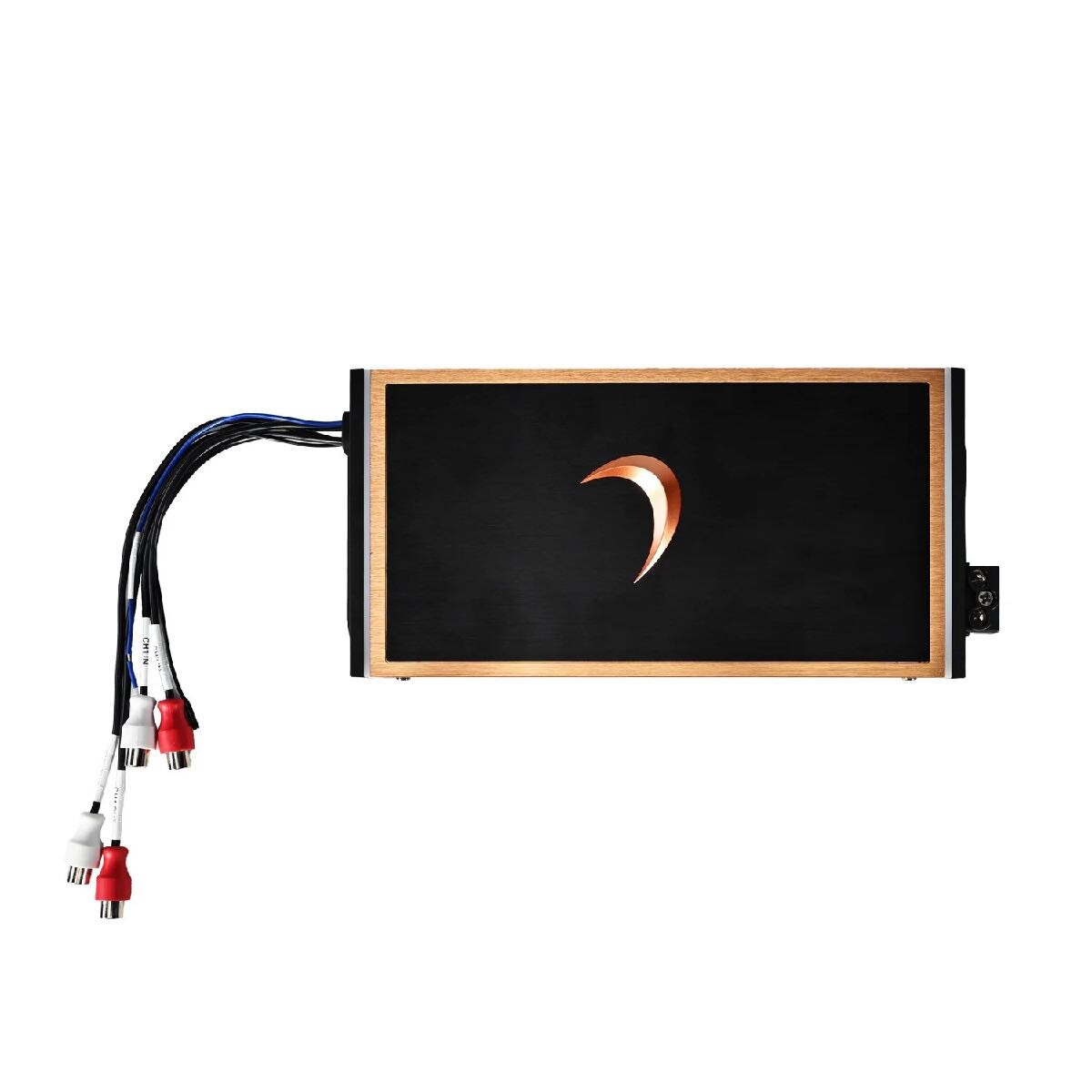

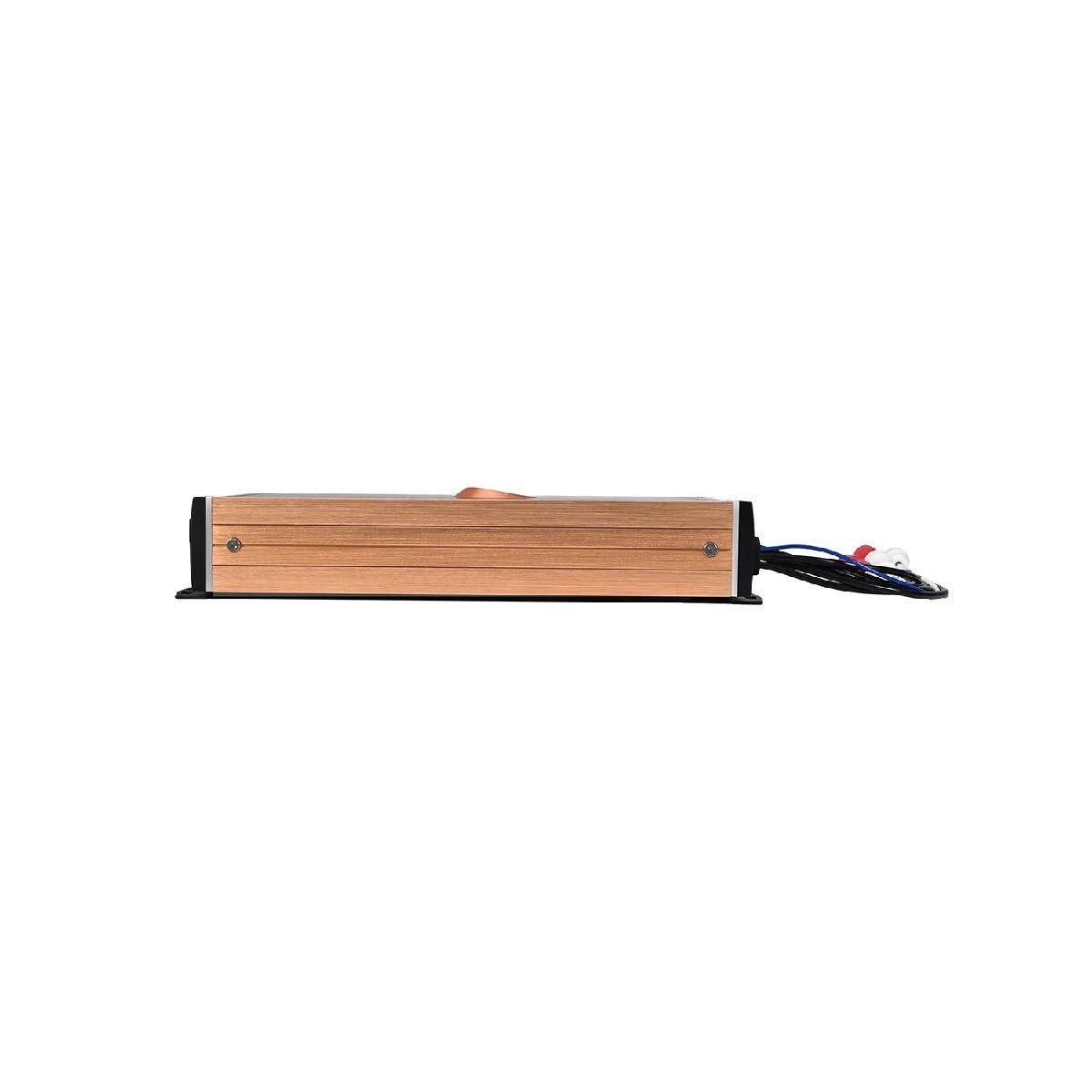

DIAMOND AUDIO 1000 WATT RMS CLASS D MONO AMP WITH DSP (NEO10001DSP)
/NEO10001DSP_media_01.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_02.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_03.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_04.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_05.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_06.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_07.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/NEO10001DSP_media_08.jpeg?resizeid=5&resizeh=1200&resizew=1200)
Details
Diamond Audio NEO10001DSP
1-Channel 1000W RMS Class D Monoblock Amplifier
1000W RMS at 1Ω

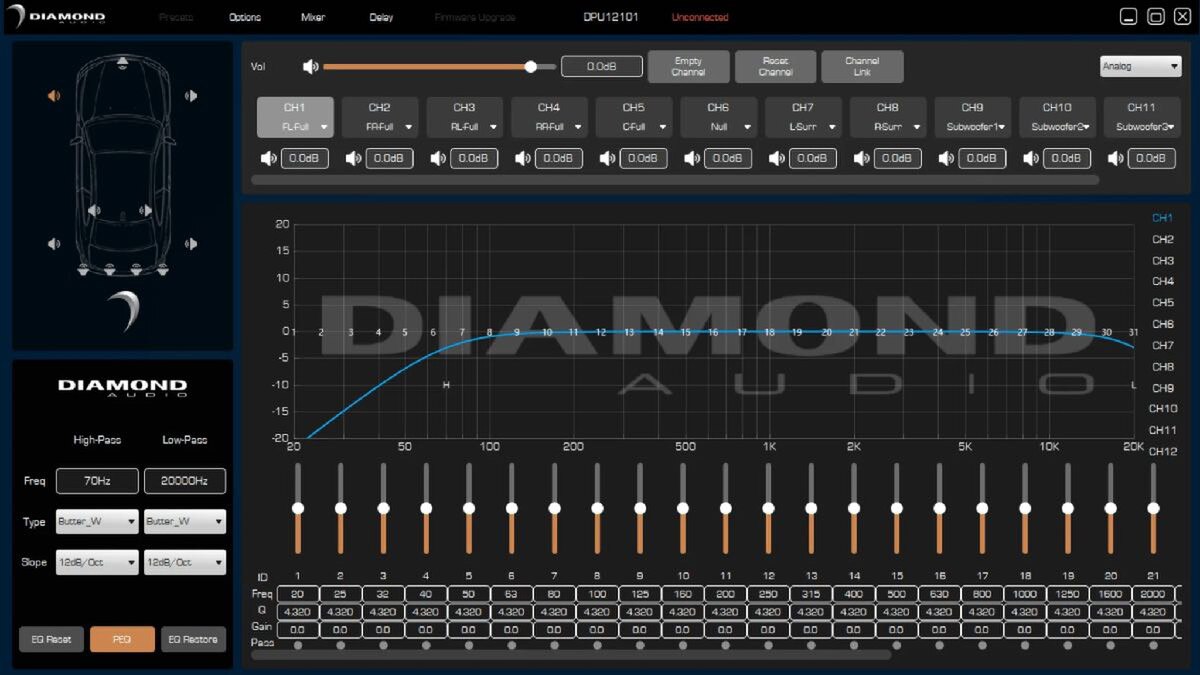

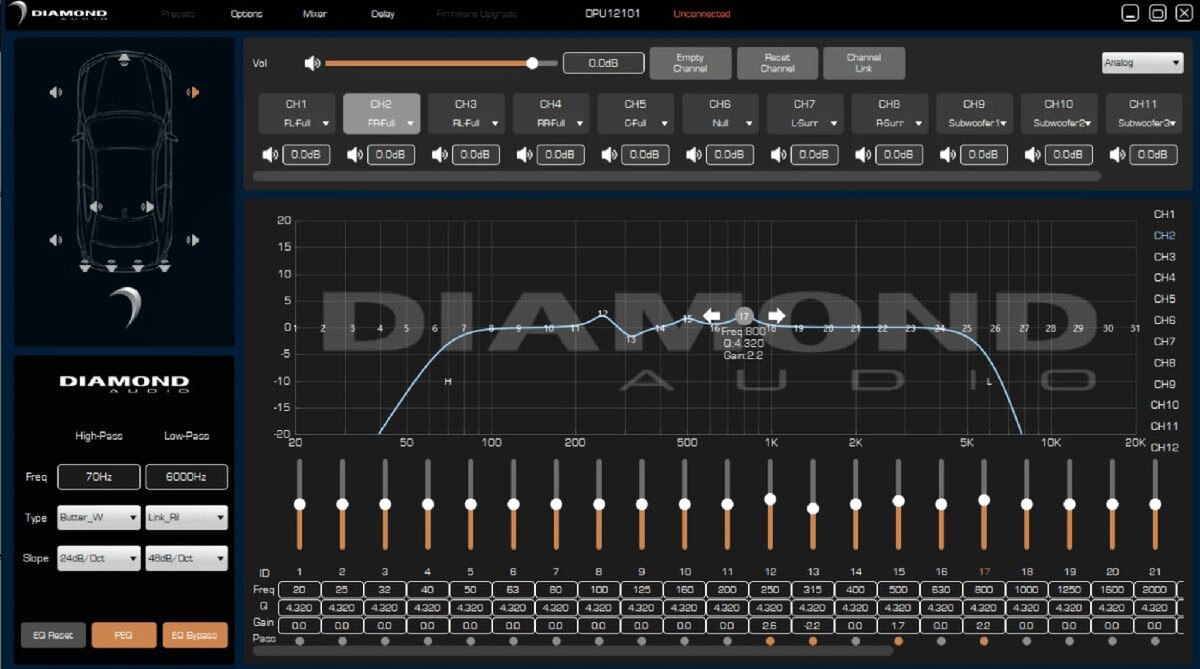

Full DSP integration
31 band parametric EQS per channel
Crossovers
Time delay
Channel linking
PC or Android programming
High/Low level 20V – 0.4V signal inputs
Selectable on-board load resistors: 10Ω, 20Ω, 60Ω, 20kΩ
EV friendly voltage compatibility: 8V – 17V
Marine ready, water-resistant chassis
Staggered RCA connections
High-current quick-connect power block
NeoDRC1 Diamond Remote Commander compatible, sold separately
2 RCA preamp outputs
Ultra-low distortion: 0.05% THD
