DD AUDIO 400 WATT COMPRESSION DRIVER WITH 3" VOICE COIL (VO-CT75)
/VO-CT75_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-CT75_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-CT75_media_03.jpg?resizeid=3&resizeh=600&resizew=600)
/VO-CT75_media_04.jpg?resizeid=3&resizeh=600&resizew=600)
Details
400 Watts RMS
3.0” Voice Coil
Titanium Diaphragm
1.4” Throat, Bolt On Horn
110 dB Sensitivity
400 Watts Program Power Handling
500 to 20,000Hz Frequency Range
The VO-CT75 compression driver is a bolt on, 1.4 inch throat with a 3 inch voice coil diameter. This driver covers the frequency range from where our VO mid-range and woofers leave off to 20kHz. The CT75 delivers natural midrange and vocal clarity with crystal clear highs while allowing a lower crossover point than the CT45.
The motor uses CnC machined parts resulting in a close tolerance, high magnetic strength motor driving a 3.0” high-temperature voice coil connected to a highly rigid titanium diaphragm.

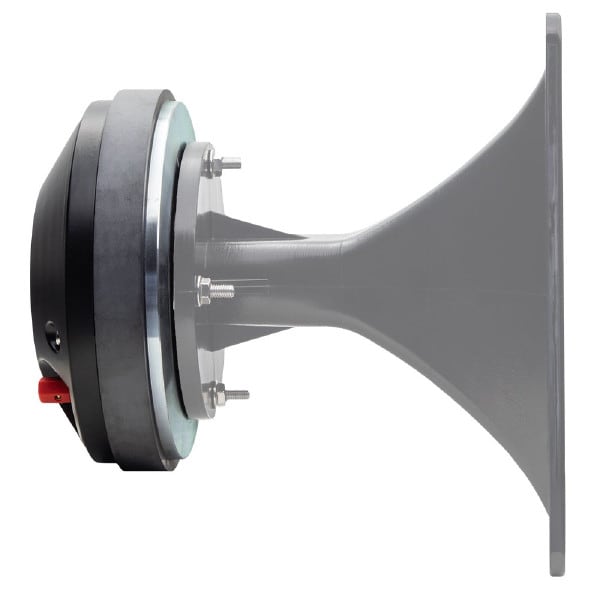

Combine with the VO-CT8x8 high grade ABS plastic horn for the ultimate PA build.
