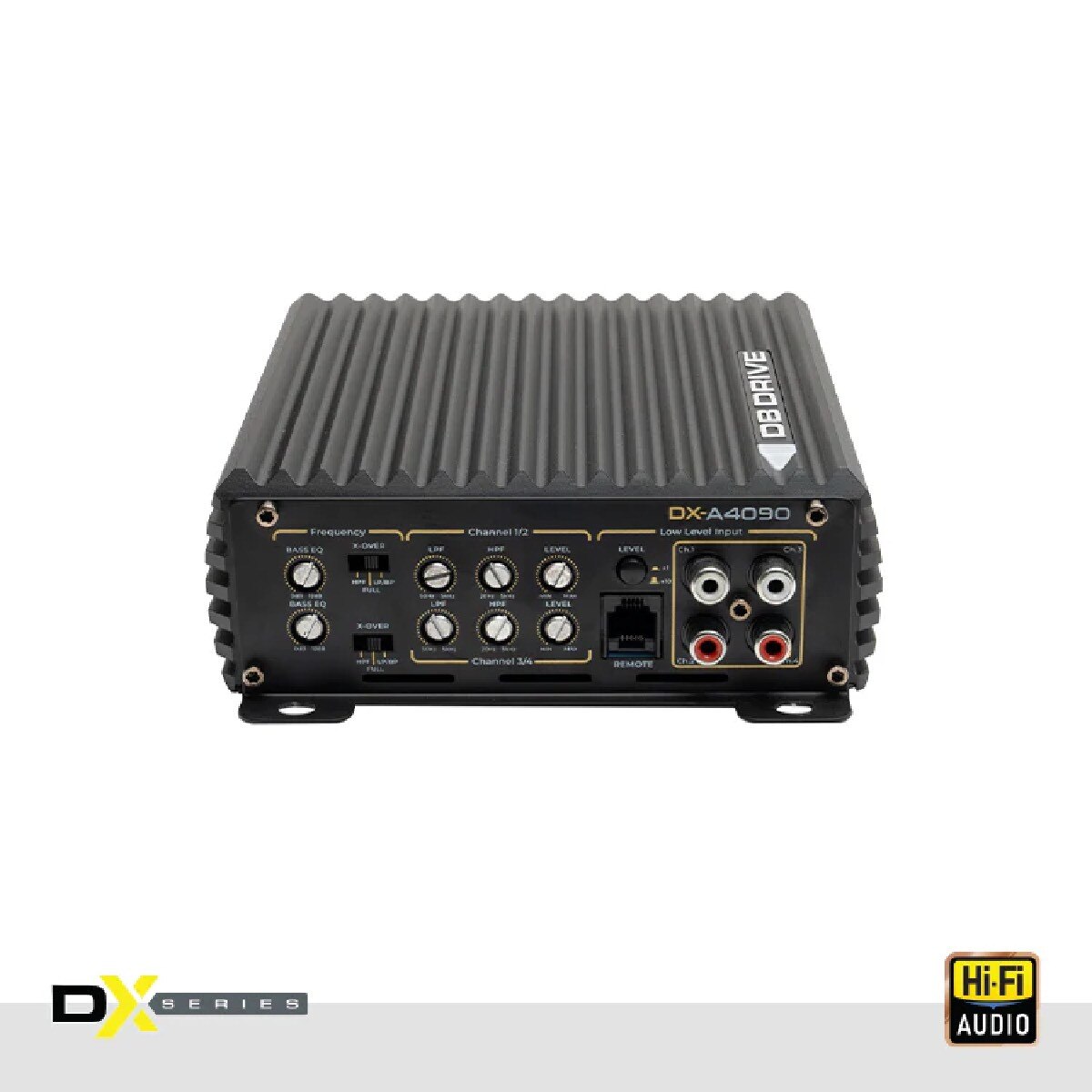

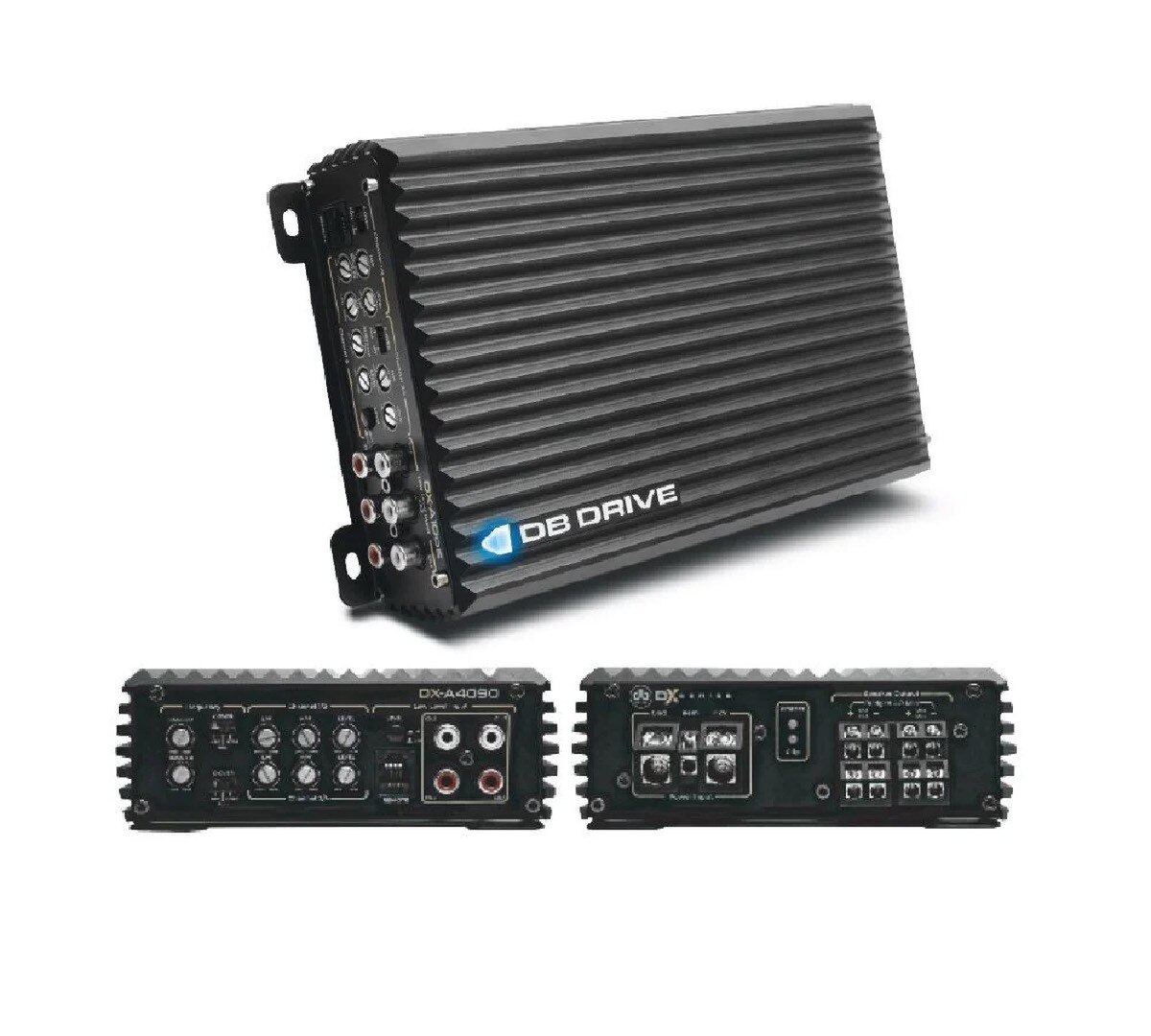

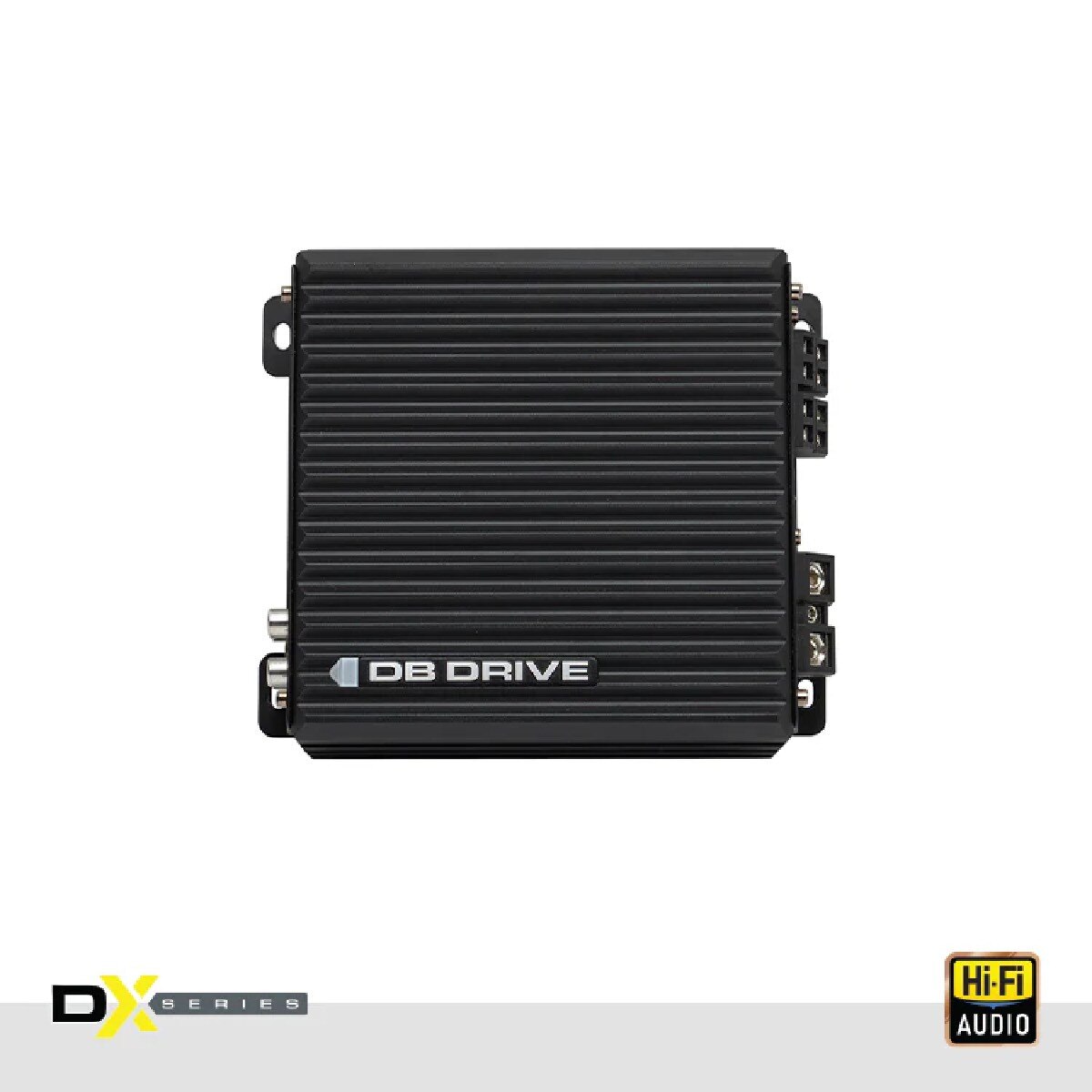

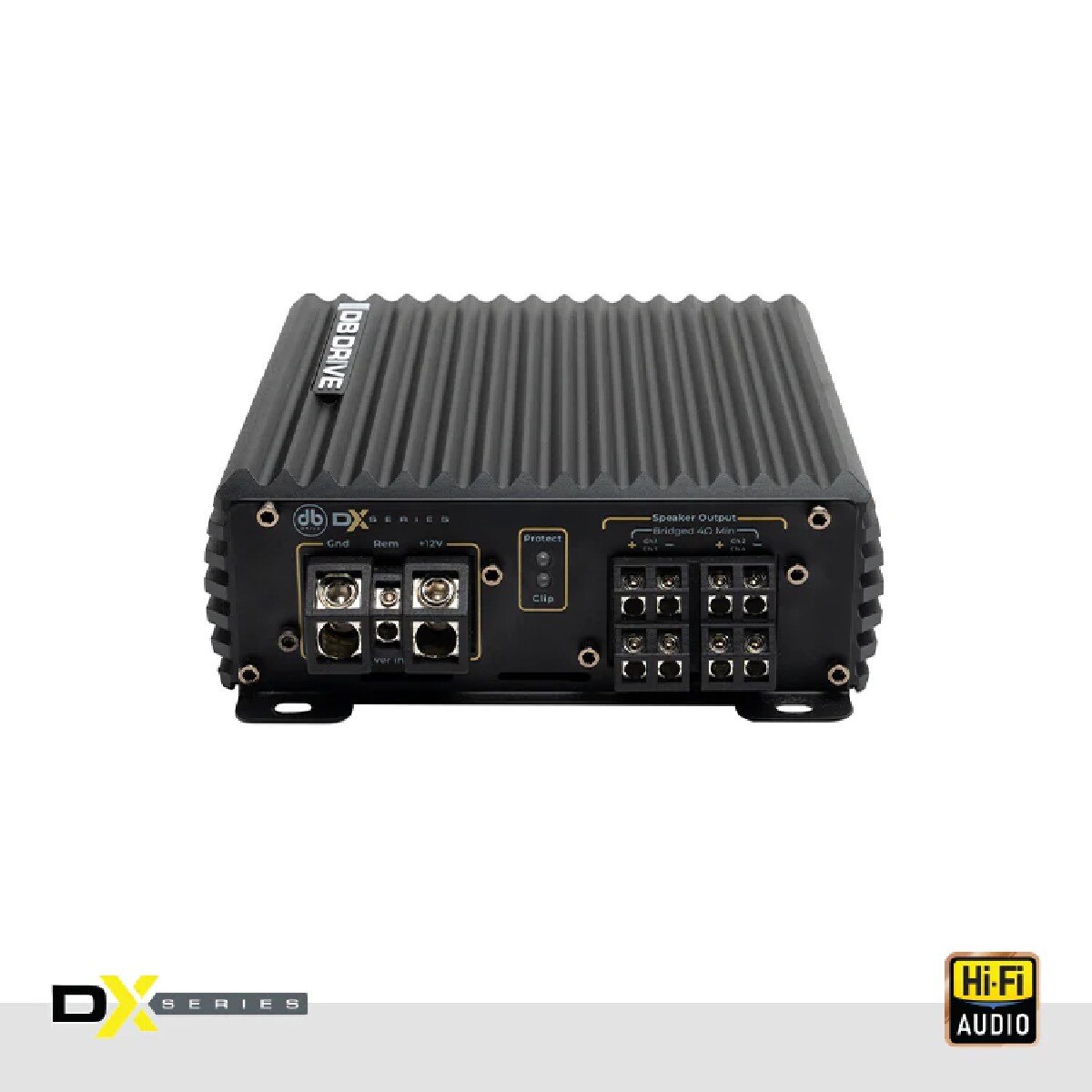

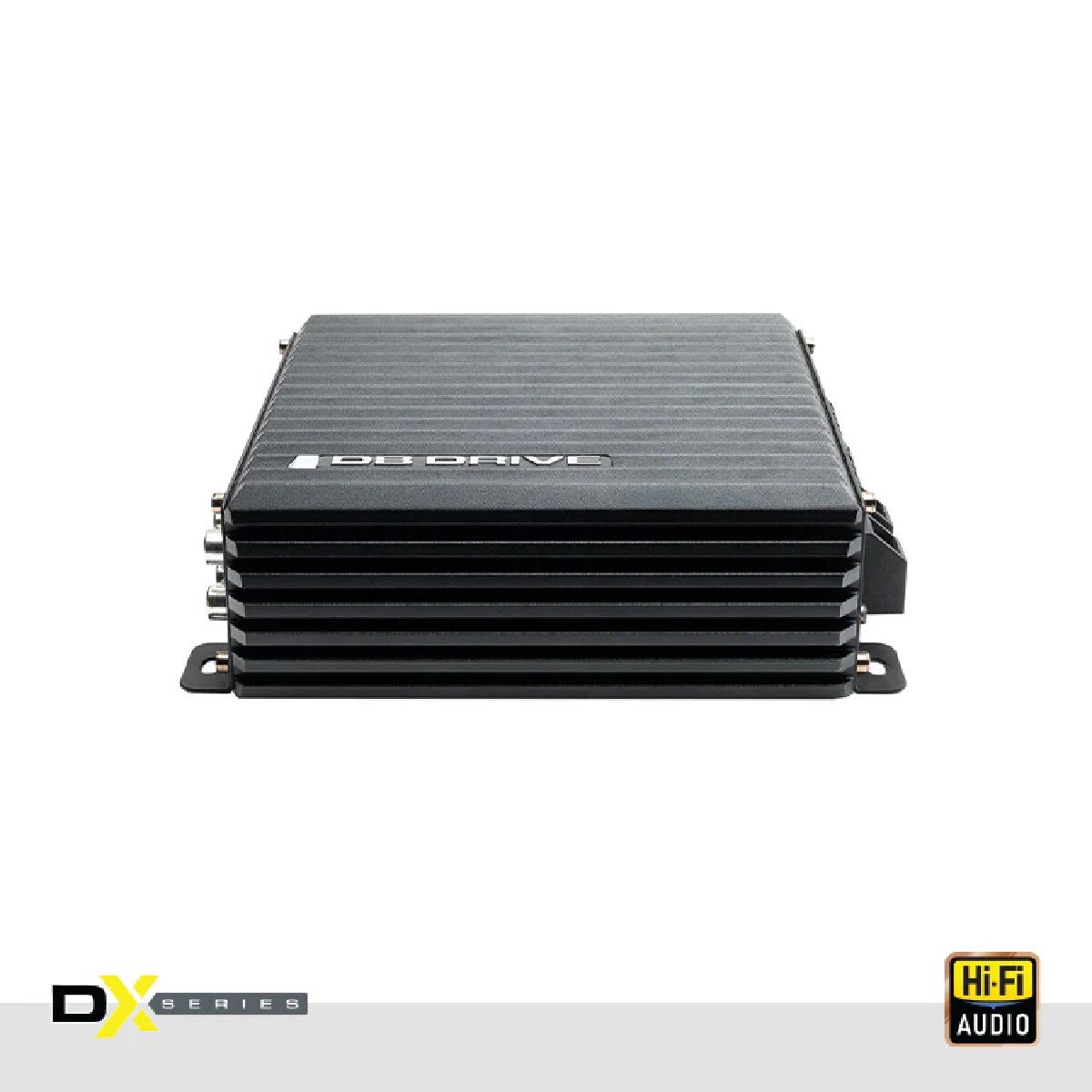

DB DRIVE 90 WATTS X 4 RMS @ 4 OHM 4 CHANNEL 600 WATT CLASS D AMPLIFIER (DX-A4090)

Dynamic Power: 4 x 90 Watts @ 4Ω
Dynamic Power: 4 x 150 Watts @ 2Ω
Dynamic power: 2 x 300 Watts @ 4Ω (bridged)
Rated Power: 4 x 80 Watts @ 4Ω
Rated Power: 4 x 140 Watts @ 2Ω
Rated power: 2 x 270 Watts @ 4Ω (bridged)
Ch 1-2 High Pass Crossover: 20Hz- 5kHz
Ch 1-2 Low Pass Crossover: 50Hz- 5kHz
Ch 3-4 High pass Crossover: 20Hz- 5kHz
Ch 3-4 Low pass Crossover: 50Hz- 5kHz
Crossover Slope @ 12 dB
Bass Boost @ 45Hz : 0-12dB
Input Sensitivity: 250Mv - 6V
Signal to Noise ratio : >92dB
Frequency Response:10Hz-22KHz

Class D Technology
Direct Connect Speaker Terminals
Large Gauge Power Wire Inputs
Selectable Low Level RCA Input Range
PWM Mosfet Regulated Power Supply
APC - Audio Protection Circuit
SESI - Signal Evaluation Status indicator
CHM - Collective Heat Management
2Ω stereo / 4Ω Bridged capability

For premium sound in your vehicle, the DB DRIVE DX-A4090 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: • Powerful Output: 90W x 4 at 4 ohms, 140W x 4 at 2 ohms, delivering clear, full-range sound. • Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. • High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. • Adaptive Crossover: Fine-tune your audio for optimal sound. • Hi-Fi Playback: Reproduces high-resolution audio with precision. • Precision Tuning: Metal potentiometers ensure stable settings. • 4-Layer PCB: Delivers cleaner, more accurate sound. • Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the DB DRIVE DX-A4090 for sound like never before.
