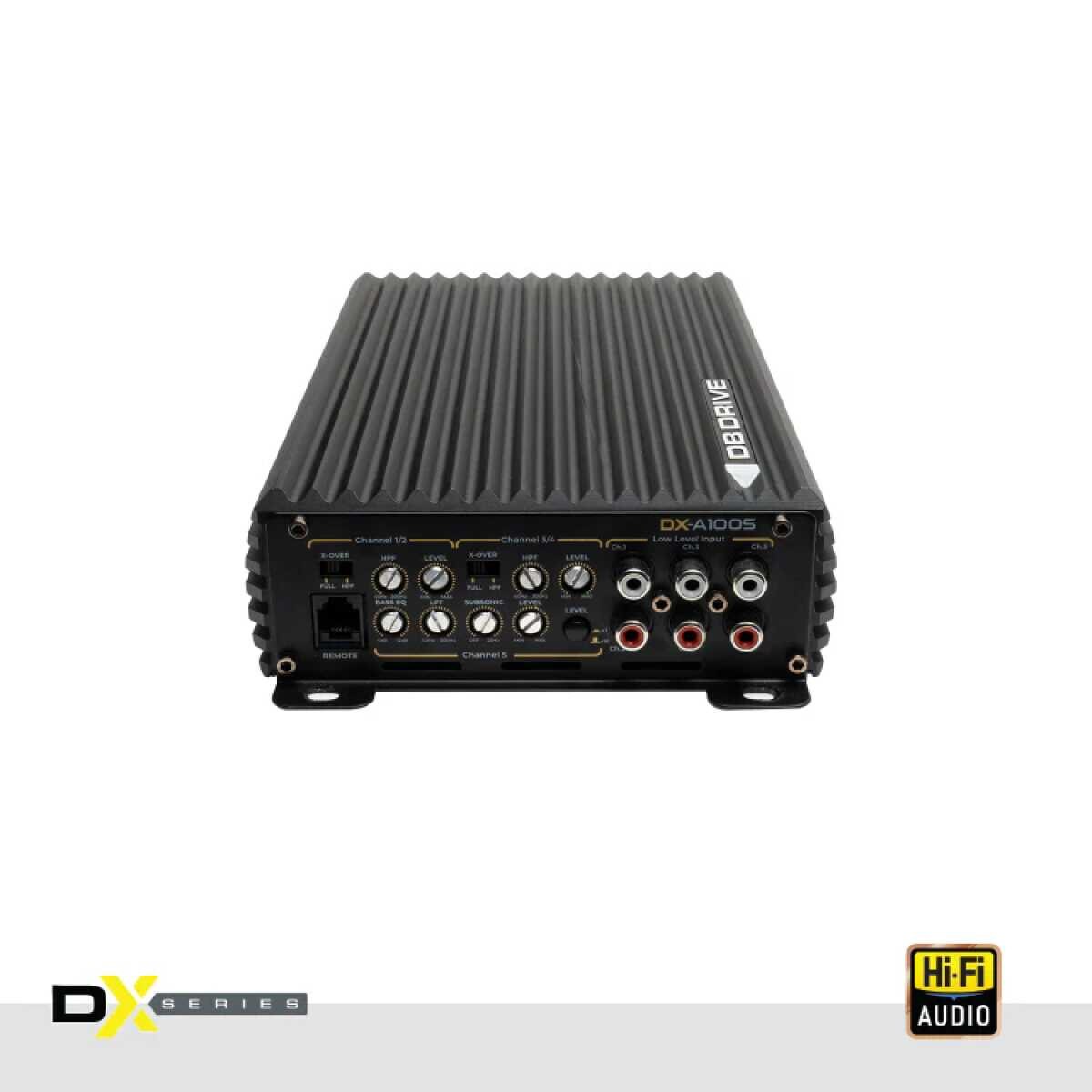

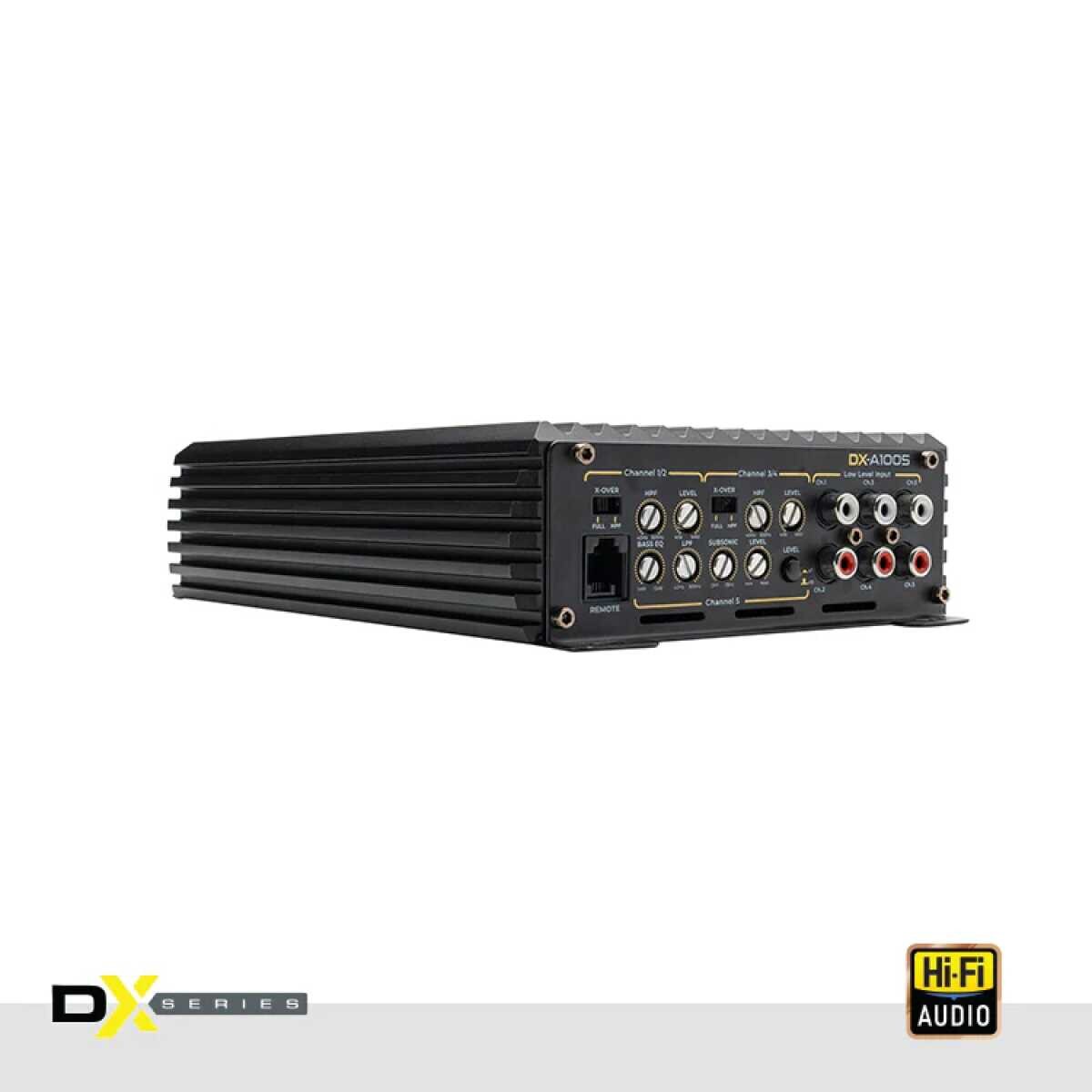

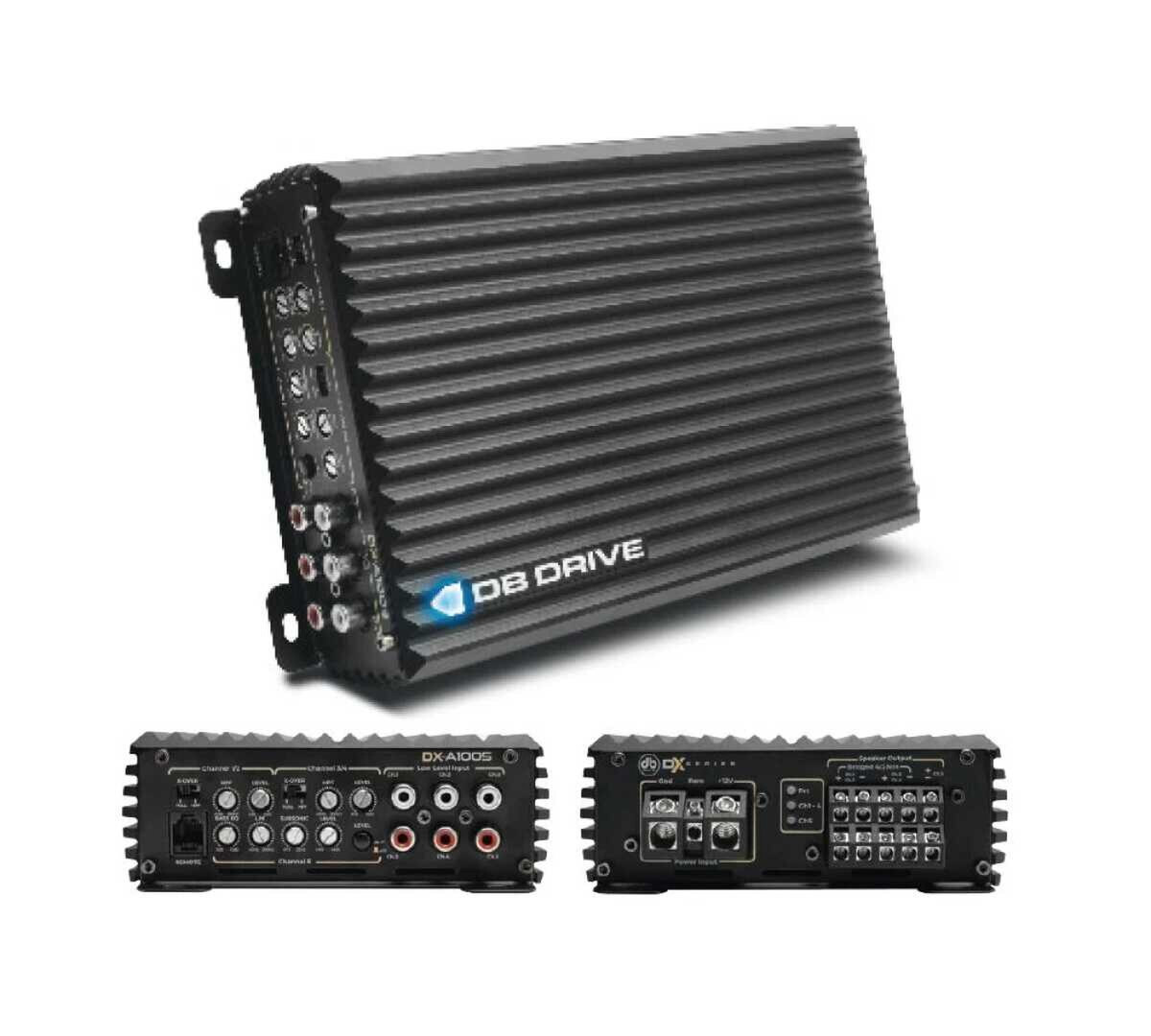

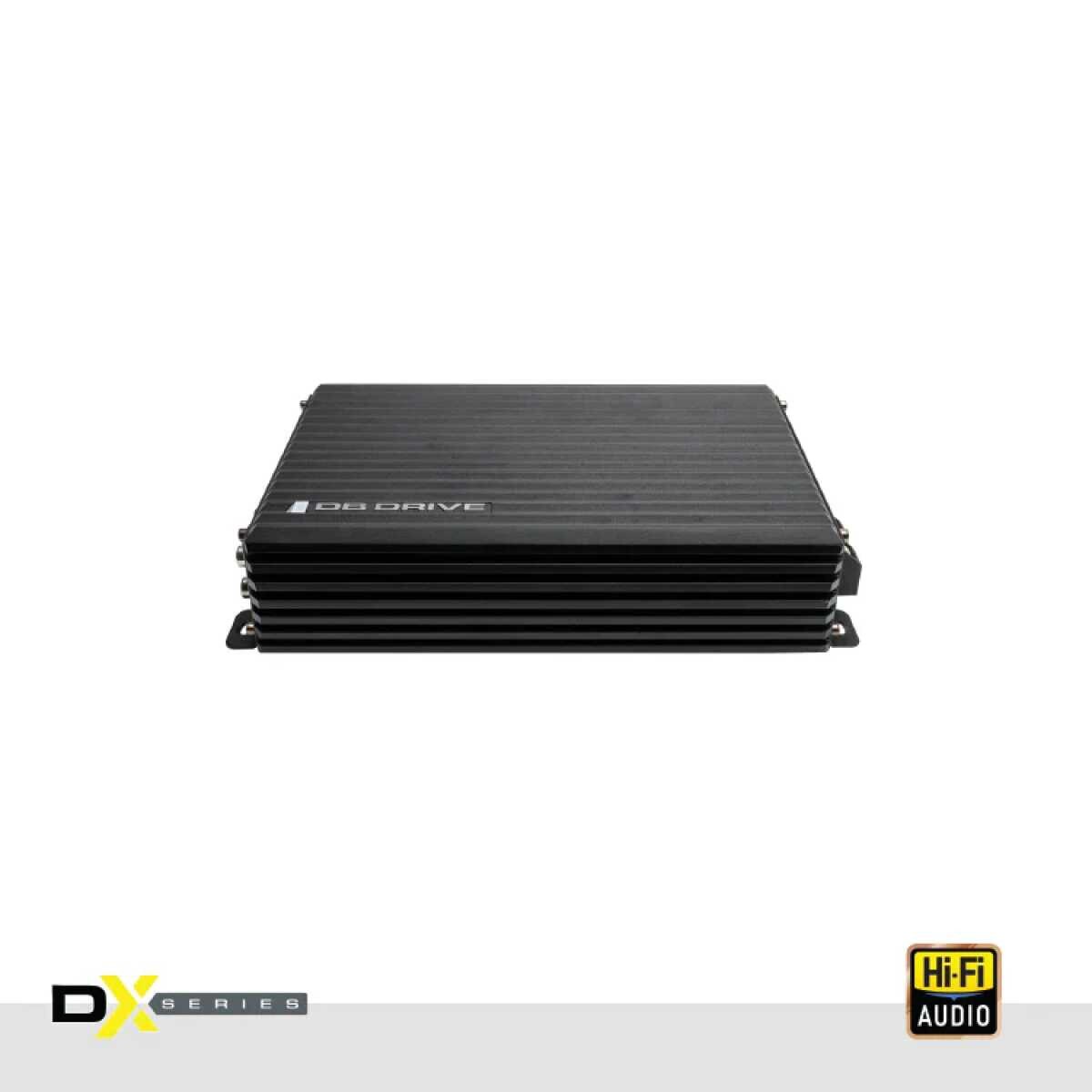

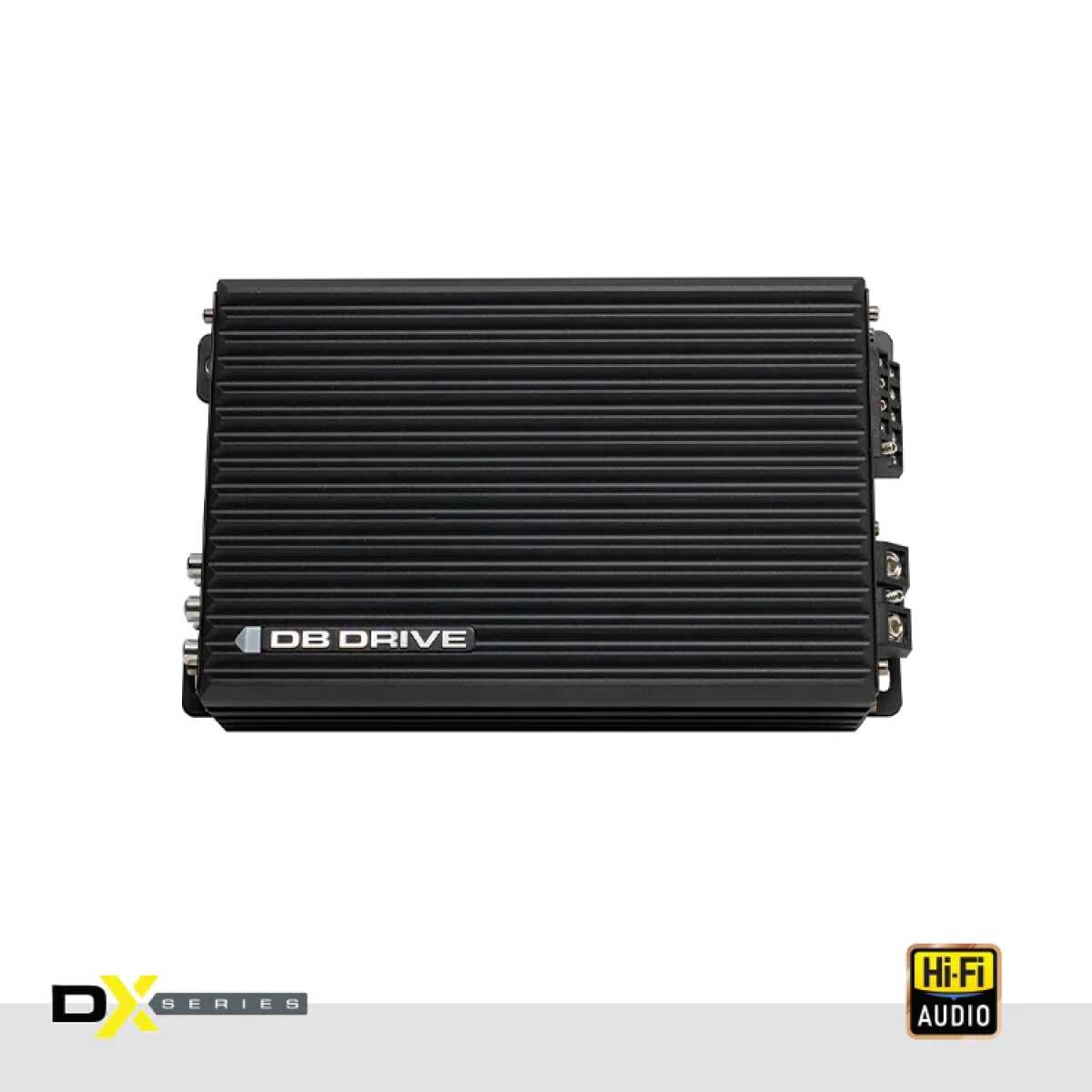

DB DRIVE 90 WATTS X 4 + 500 WATTS X 1 @ 2 OHM 5 CHANNEL CLASS D AMPLIFIER (DX-A1005)

Dynamic Power: 4 x 90 Watts + 250 Watts @ 4Ω
Dynamic Power: 4 x 150 Watts + 500 watts @ 2Ω
Rated Power: 4 x 80 Watts + 200 Watts @ 4Ω
Rated Power: 4 x 140 Watts + 450 watts @ 2Ω

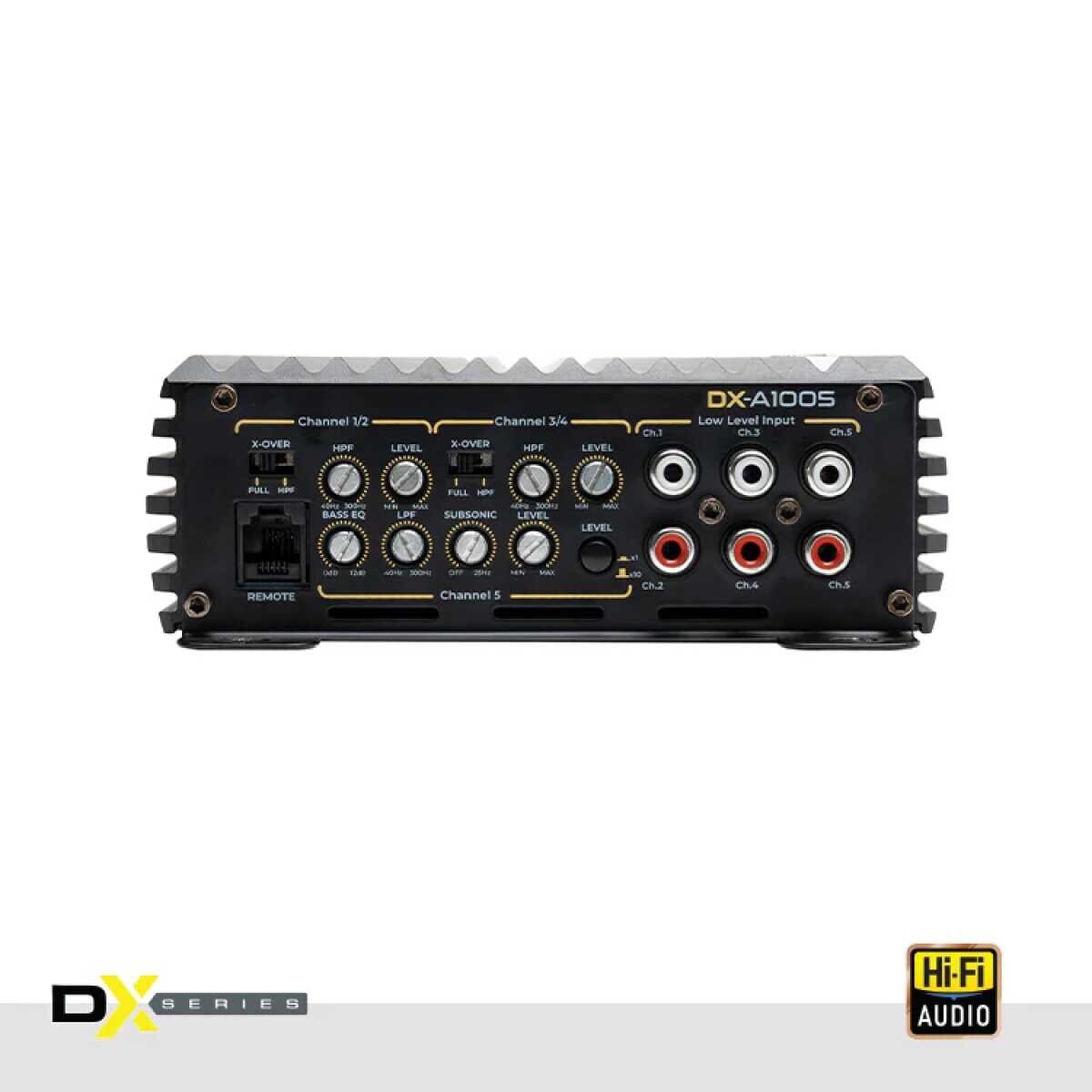

Ch 1-2 High Pass Crossover: 40Hz - 300Hz
Ch 3-4 High Pass Crossover: 40Hz - 300Hz
Ch 5 Low Pass Crossover: 40Hz - 300Hz
Subsonic Filter: 0 - 25 Hz
Crossover Slope @ 12 dB
Bass Boost @ 45Hz : 0-12dB
Input Sensitivity: 250Mv - 6V
Signal to Noise ratio : >92dB
Frequency Response:10Hz-22KHz

Class D Technology

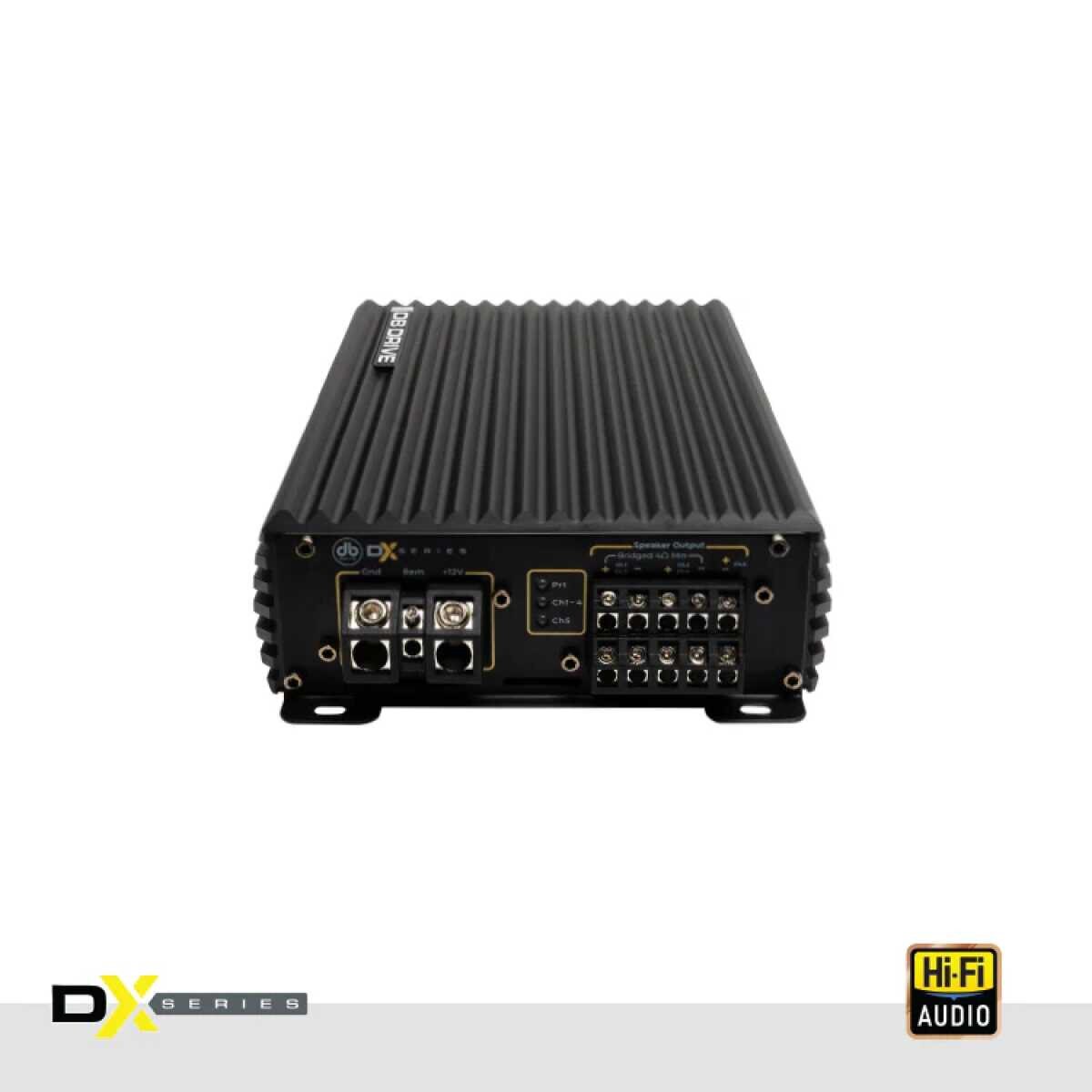

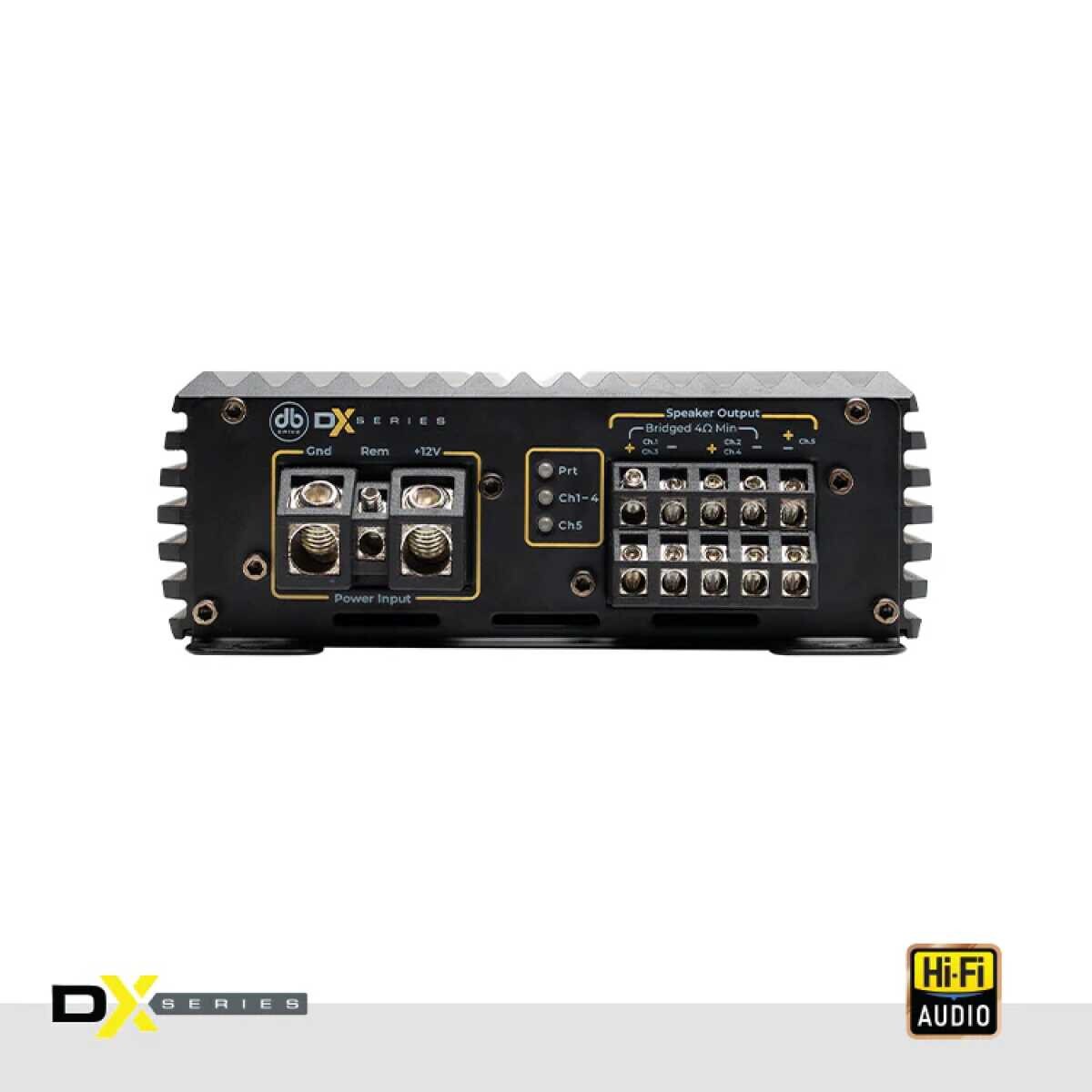

Direct Connect Speaker Terminals
Large Gauge Power Wire Inputs
PWM Mosfet Regulated Power Supply
APC - Audio Protection Circuit
SESI - Signal Evaluation Status indicator
CHM - Collective Heat Management
2Ω stereo / 4Ω Bridged capability
Remote Bass Control Included

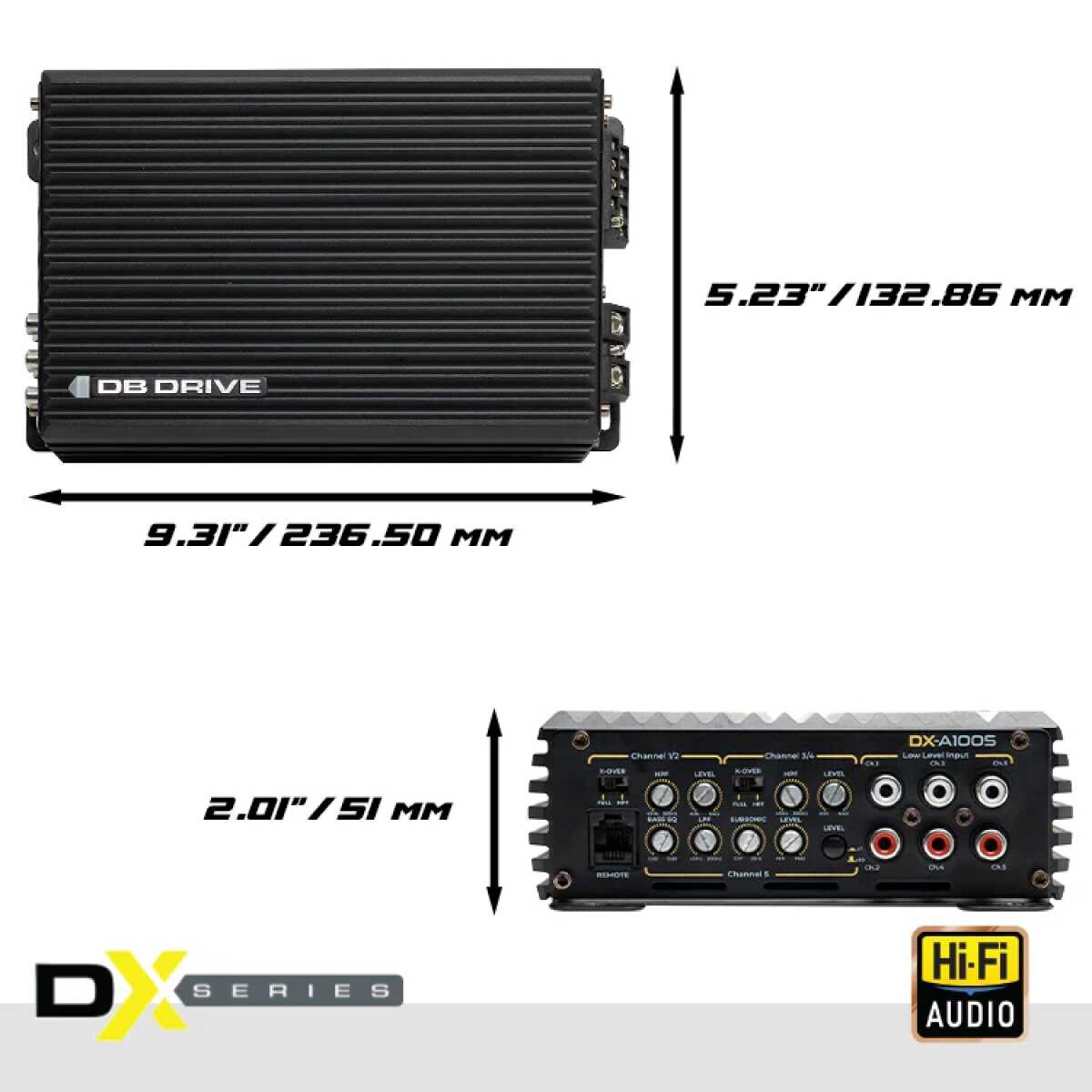

The DB DRIVE DX-A1005 delivers powerful, dynamic sound for both audiophiles and casual listeners. Key Features: Powerful Output: 90W x 4 at 4 ohms + 350W for the subwoofer at 2 ohms, ensuring deep, precise sound. High-Efficiency Design: Perfect for modern electrical systems and compact vehicles. Adaptive Crossover: Fine-tune your bass for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Precision Tuning: Metal potentiometers for stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car into a high-performance sound system with the DB DRIVE DX-A1005. Experience superior sound today.
