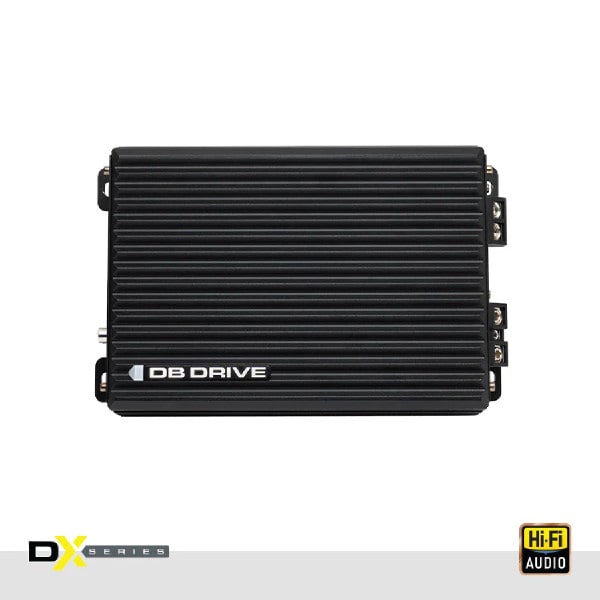

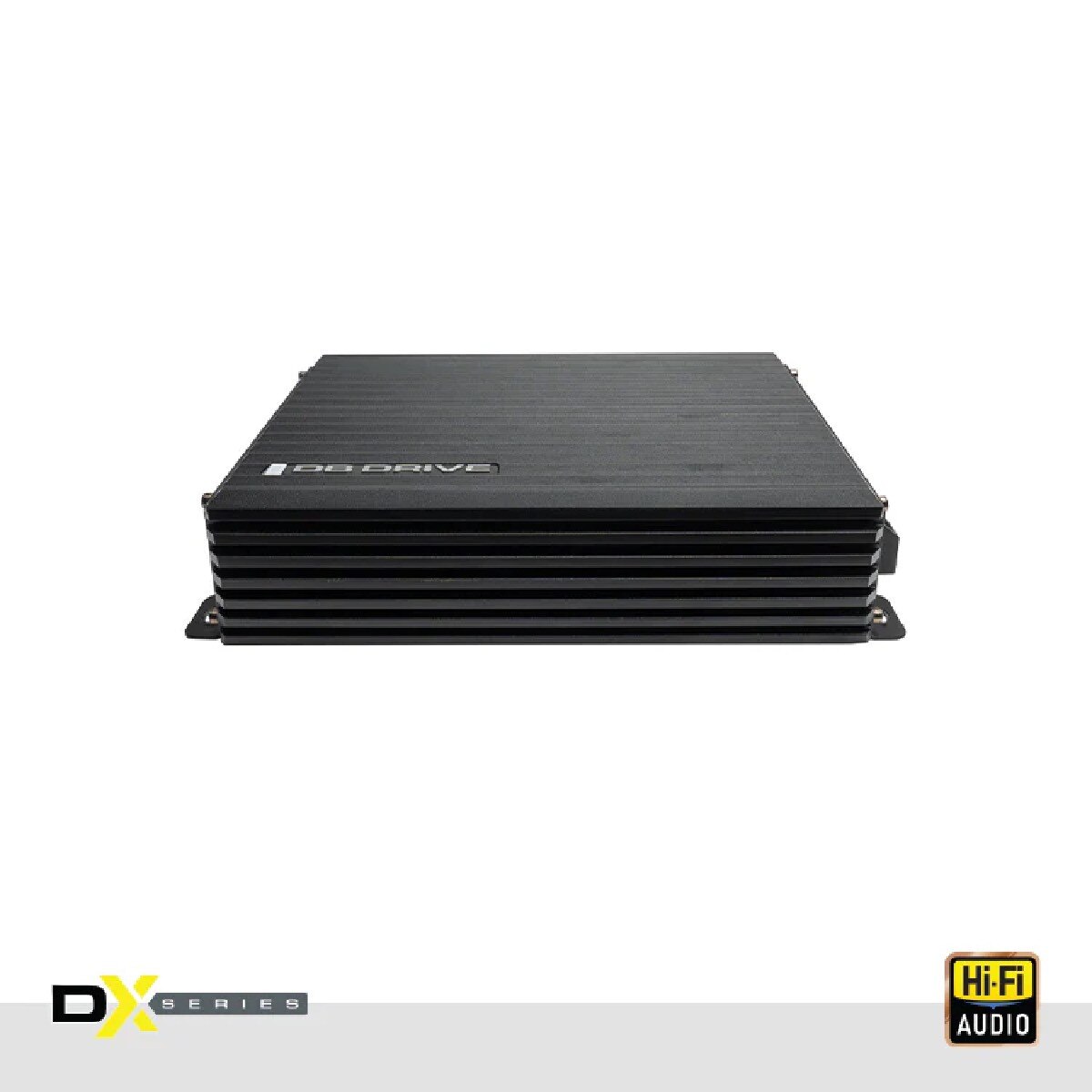

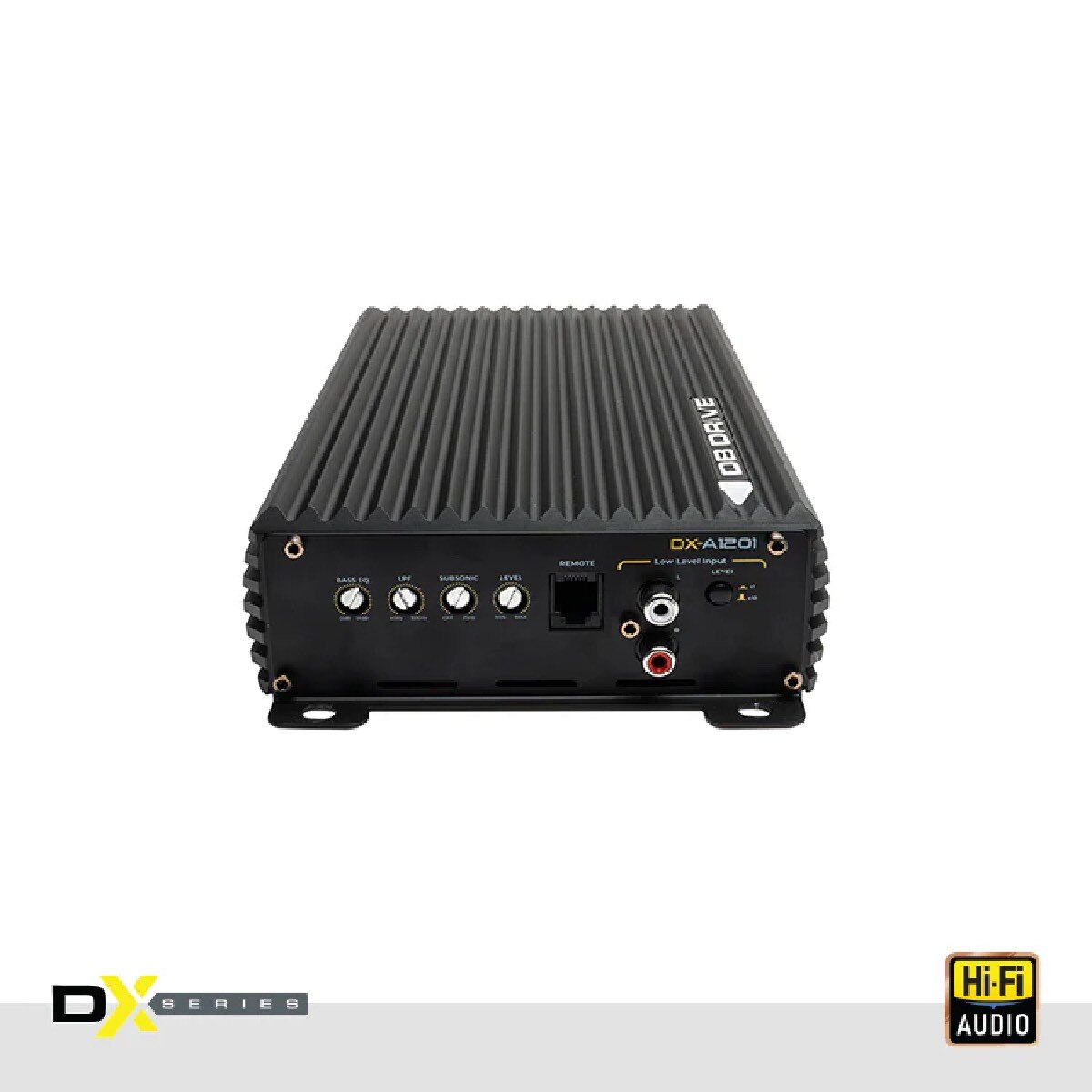

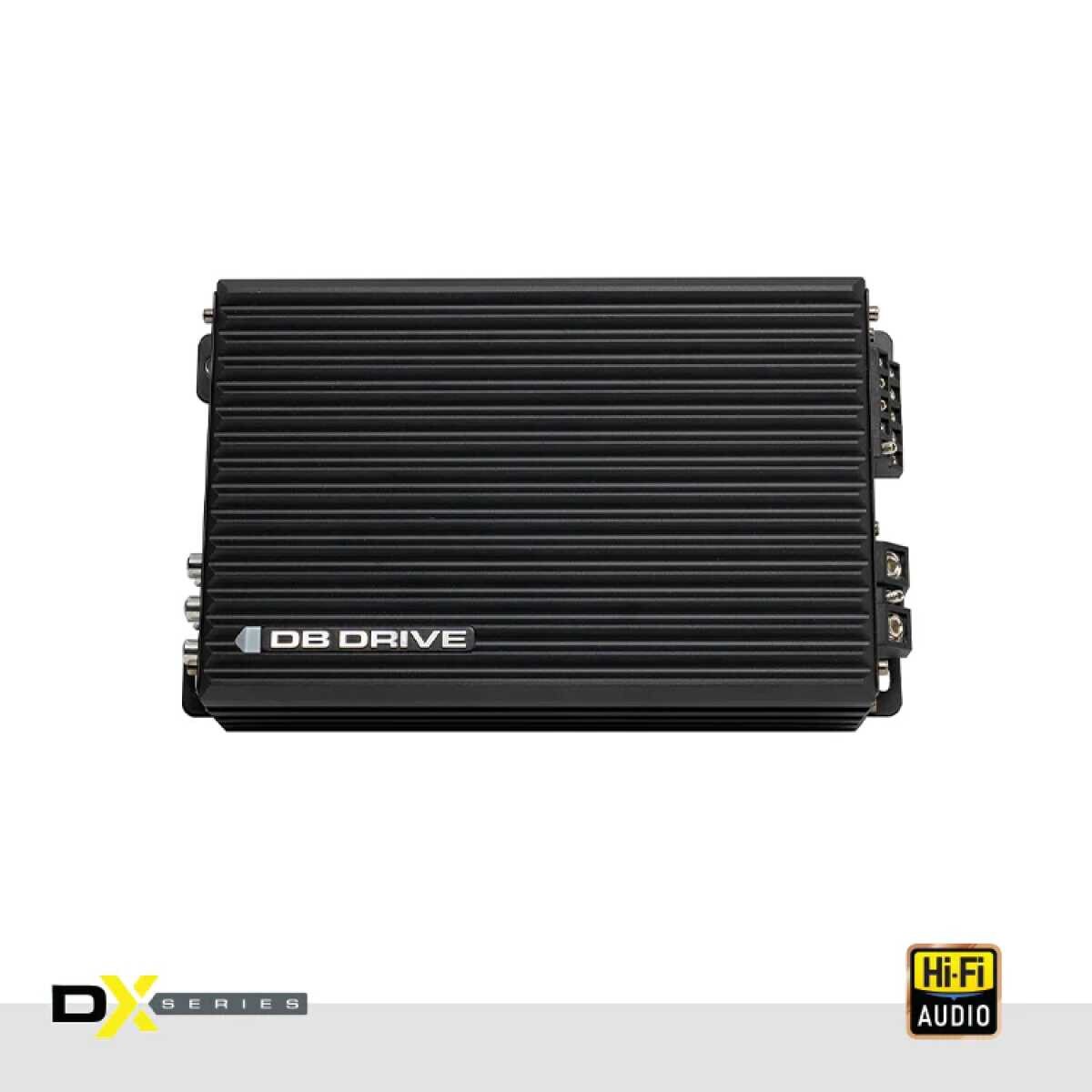

DB DRIVE 1200 WATTS X 1 @ 1 OHM MONO BLOCK CLASS D AMPLIFIER (DX-A1201)
/DX-A1201_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_03.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_04.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_05.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_06.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_07.jpg?resizeid=3&resizeh=600&resizew=600)
/DX-A1201_media_08.jpg?resizeid=3&resizeh=600&resizew=600)
Details
Dynamic Power: 1 x 1200 Watts @ 1Ω
Dynamic Power: 1 x 650 Watts @ 2Ω
Dynamic Power: 1 x 350 Watts @ 4Ω
Rated Power: 1 x 1050 Watts @ 1Ω
Rated Power: 1 x 550 Watts @ 2Ω
Rated Power: 1 x 250 Watts @ 4Ω

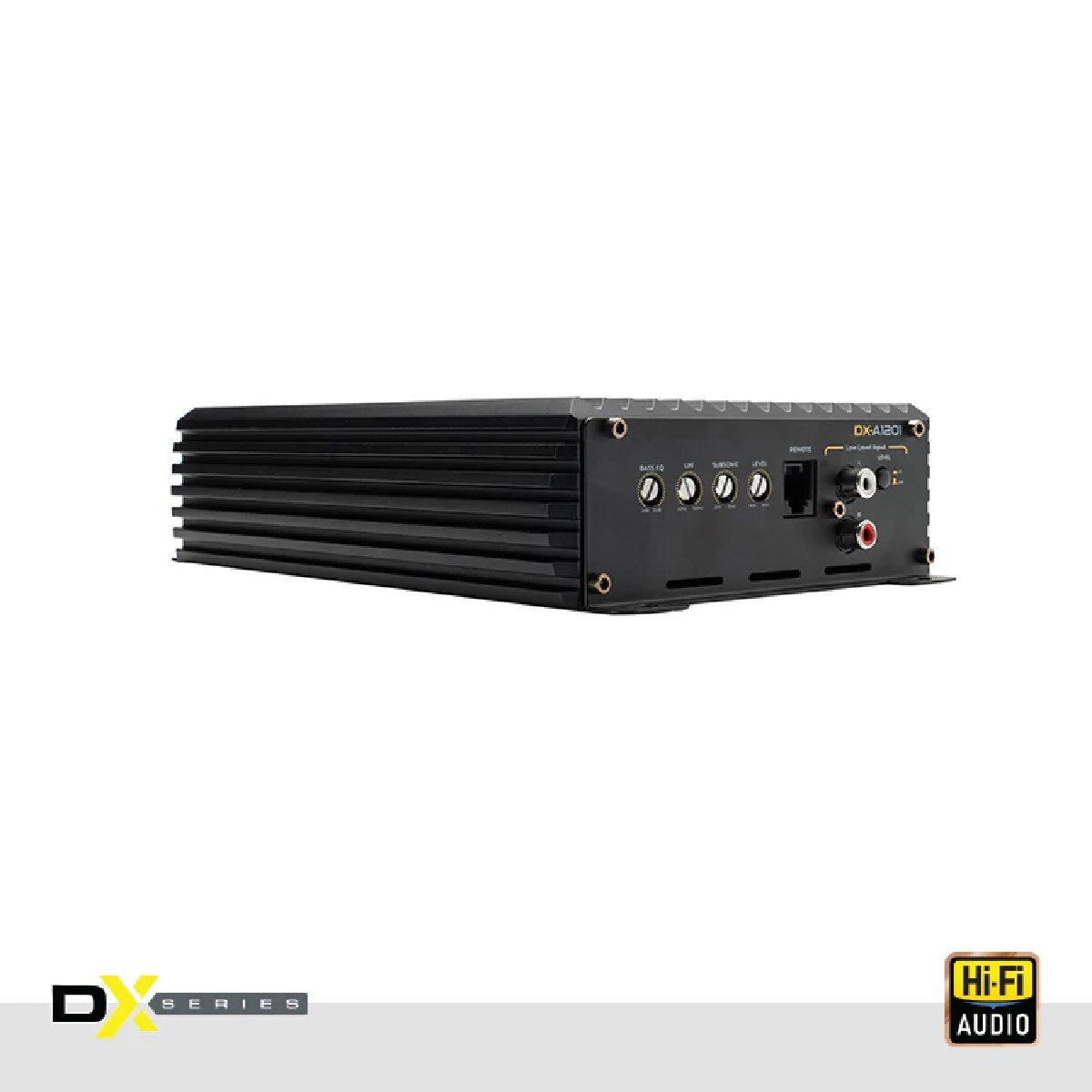

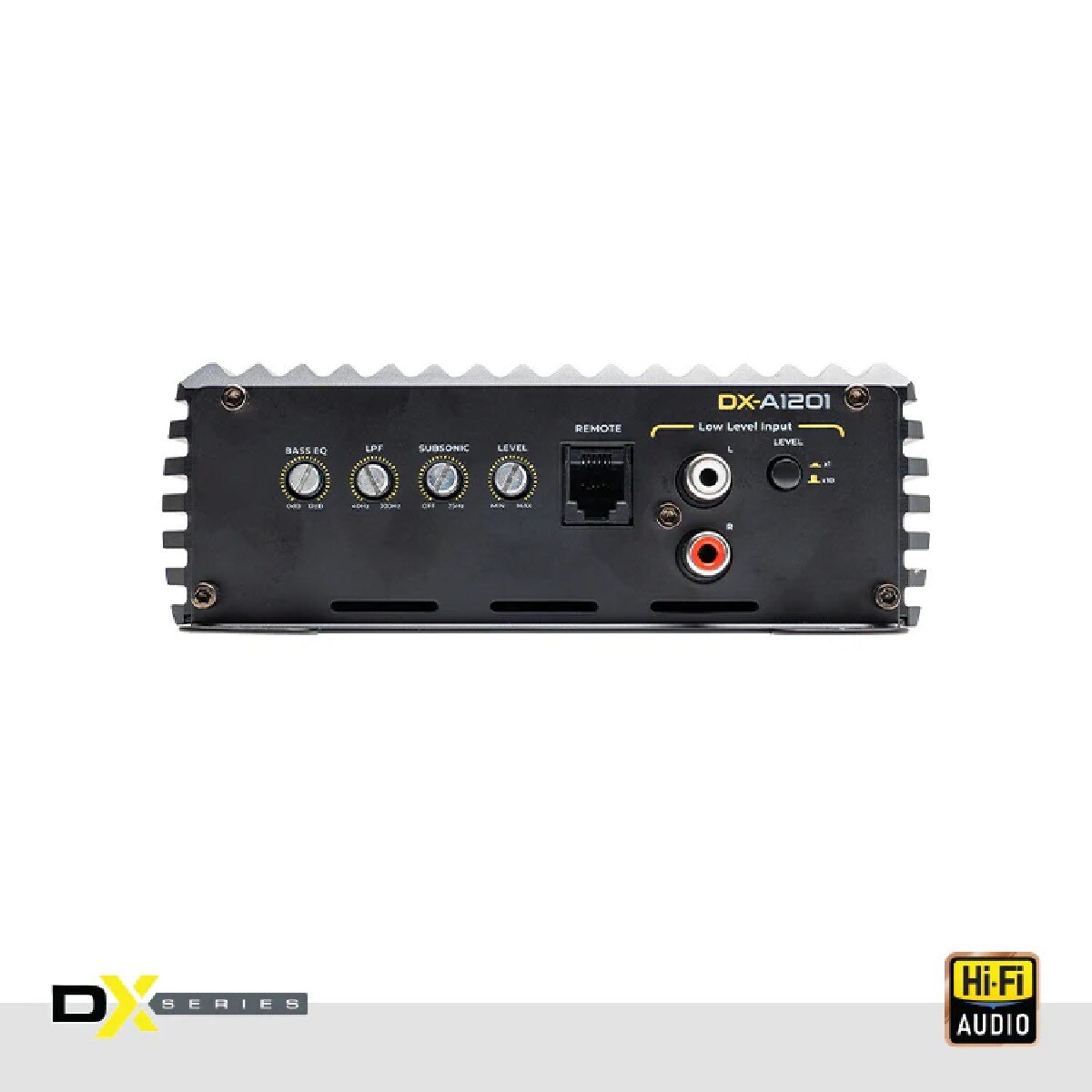

Low Pass Filter: 40Hz - 300Hz
Subsonic Filter: 0 - 25 Hz
Bass Boost @ 45Hz : 0-12dB
Input Sensitivity: 250Mv - 6V
Signal to Noise Ratio :>90dB
Frequency Response:10Hz-350Hz
Class D Technology

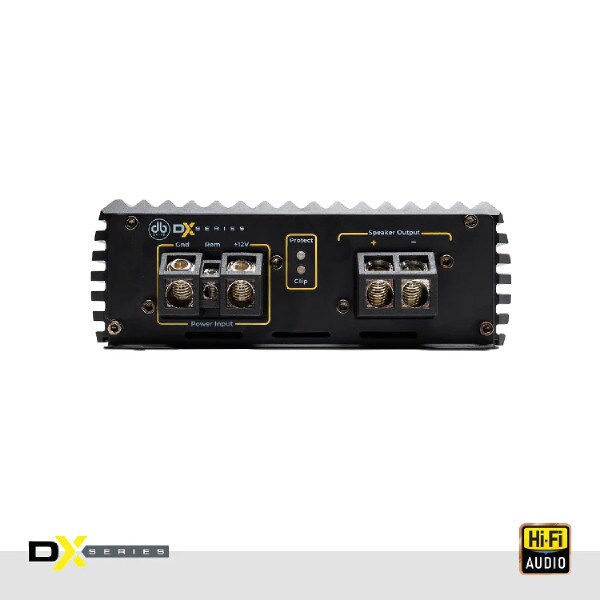

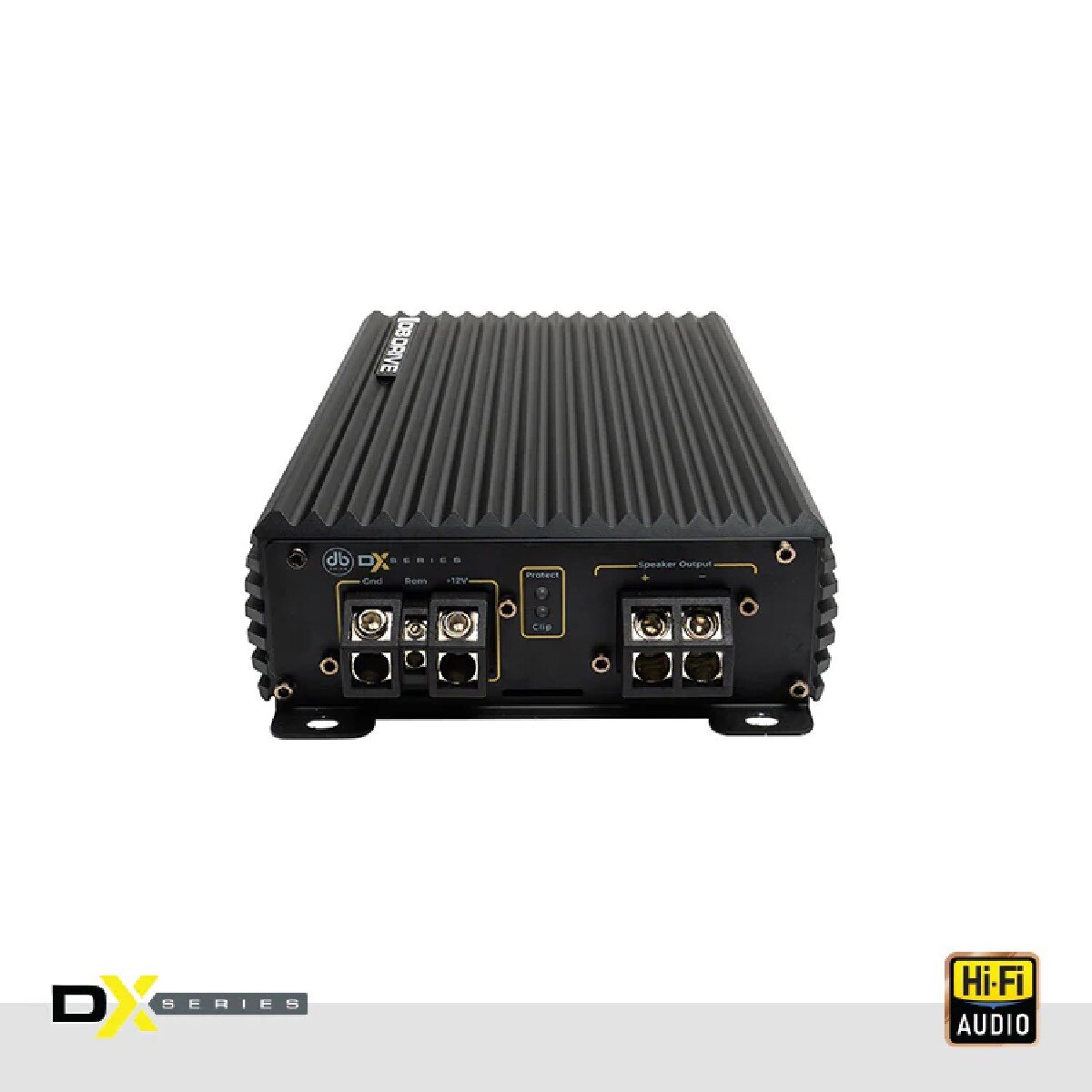

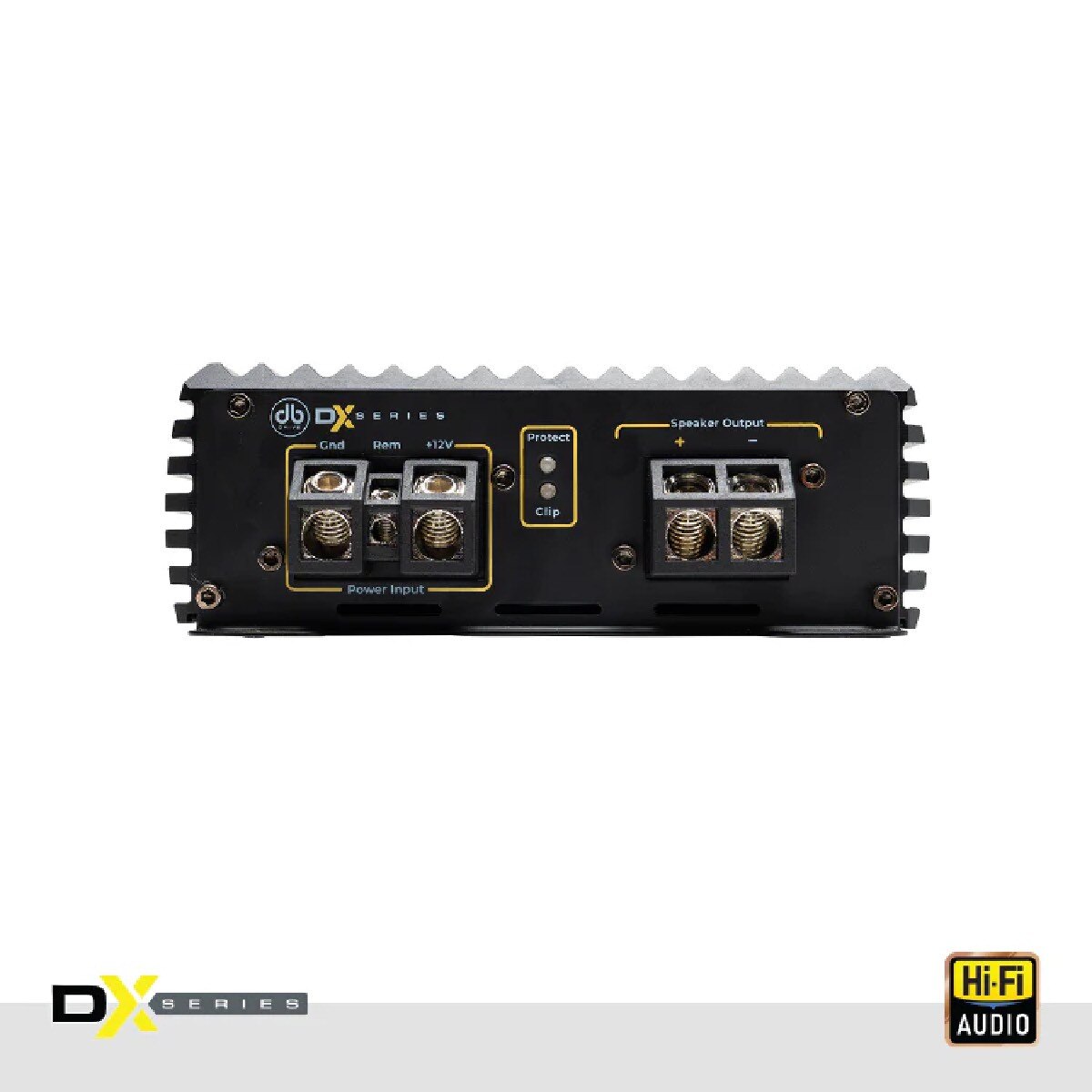

Direct Connect Speaker Terminals
Large Gauge Power Wire Inputs
PWM Mosfet Regulated Power Supply
APC - Audio Protection Circuit
SESI - Signal Evaluation Status indicator
CHM - Collective Heat Management
1Ω Capability

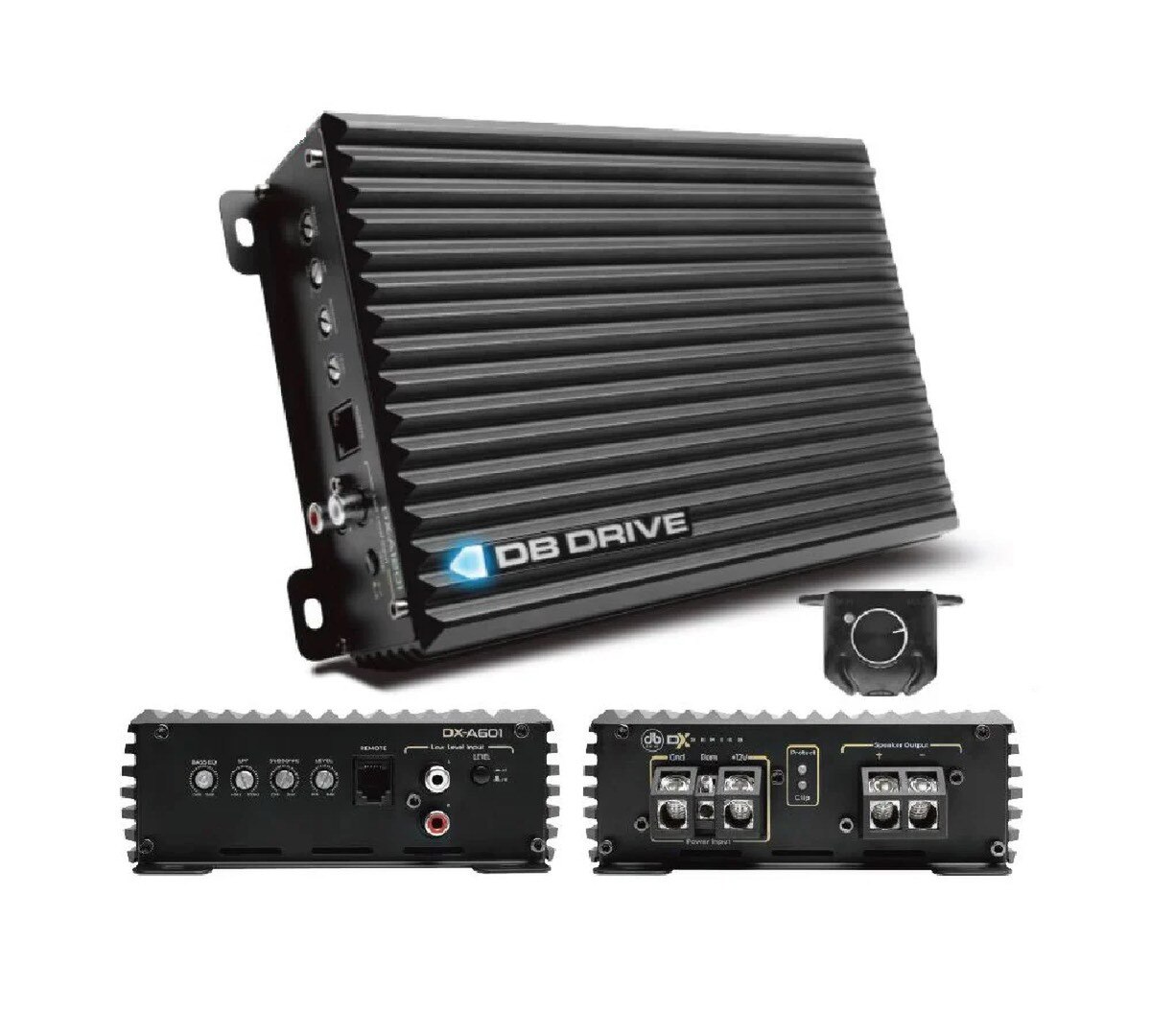

Remote Bass Control Included
For powerful, dynamic bass, the DB DRIVE DX-A1201 Monoblock subwoofer amplifier is built for audiophiles and casual listeners alike. Key Features: Powerful Output: 1200W x 1 at 1 ohm for deep, accurate bass. Flexible Compatibility: Works with 1, 2, or 4-ohm loads. High-Efficiency Design: Integrates with modern electrical systems. Adaptive Crossover: Fine-tune your subwoofer setup for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Remote Dash Control: Adjust bass settings on-the-fly. Precision Tuning: Metal potentiometers ensure stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car's sound with the DB DRIVE DX-A1201 and experience bass like never before.
