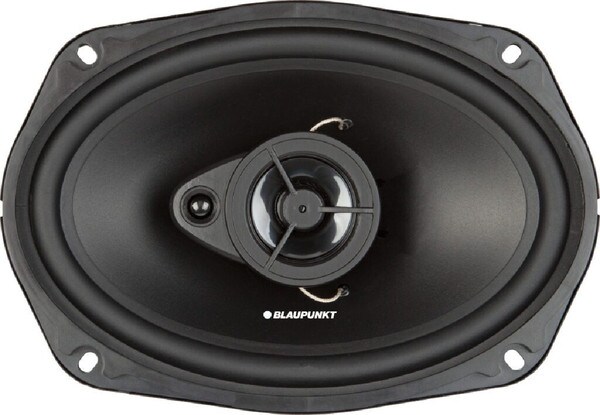

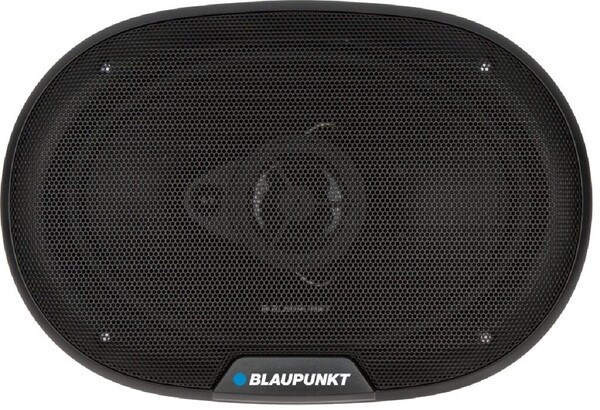

BLAUPUNKT 6X9" 3-WAY COAXIAL SPEAKERS (BPS-E693)
/BPS-E693_media_01.jpg?resizeid=3&resizeh=600&resizew=600)
/BPS-E693_media_02.jpg?resizeid=3&resizeh=600&resizew=600)
Details
| Speaker Design | 6*9″ 3Way |
| Woofer [in, mm] | 6*9in 164*236mm |
| Mid [in, mm] | 2in 50mm |
| Tweeter [in, mm] | —— |
| Supertweeter [in,mm] | 0.5in 12mm |
| Rated Impedance | 4ohm |
| Peak Power Handling [Watts] | 70W |
| Continous Power Handling [Watts] | 35W |
| Sensitivity [1W, 1m] | 86.5dB |
| Frequency Response [Hz] | 50~20000Hz |
| Mounting Hole Diameter [in, mm] | 6.06*8.74in 154*222mm |
| Top Mount Depth [in, mm] | 1.42in 36mm |
| Bottom Mount Depth [in, mm] | 3.23in 82mm |
| Tweeter Protrusion [in, mm] | 0 |
| Grilles | Yes |
| Tweeter Magnet Material | —— |
| Tweeter Dome Material | —— |
| Tweeter Design | —— |
| Supertweeter Magnet Material | —— |
| Supertweeter Dome Material | Ceramic w/PET Diaphragm |
| Supertweeter Design | Balanced Dome |
| Midrange Magnet Material | Ferrite |
| Midrange Dome Material | PET |
| Woofer Cone Material | PP |
| Woofer Surround Material | Rubber |
Blaupunkt E-Series speakers are perfectly designed to be able to enhance the frequency response creating an interesting and fun-filled music entertainment. These speakers are specially designed to create a magical experience in music entertainment for listeners in the car by enabling the establishment of high frequency response in such ease.
