TIMPANO - 6X9" COAXIAL SPEAKER STAMPED STEEL BASKET 650 WATTS POWER 4 OHM (TPT-CX69-4 TPRO)
/TPT-CX69-4 TPRO_media_01.jpg?resizeid=5&resizeh=1200&resizew=1200)
/TPT-CX69-4 TPRO_media_02.jpg?resizeid=5&resizeh=1200&resizew=1200)
/TPT-CX69-4 TPRO_media_03.jpg?resizeid=5&resizeh=1200&resizew=1200)
/TPT-CX69-4 TPRO_media_04.jpg?resizeid=5&resizeh=1200&resizew=1200)
/TPT-CX69-4 TPRO_media_05.jpg?resizeid=5&resizeh=1200&resizew=1200)
/TPT-CX69-4 TPRO_media_06.jpg?resizeid=5&resizeh=1200&resizew=1200)
Details

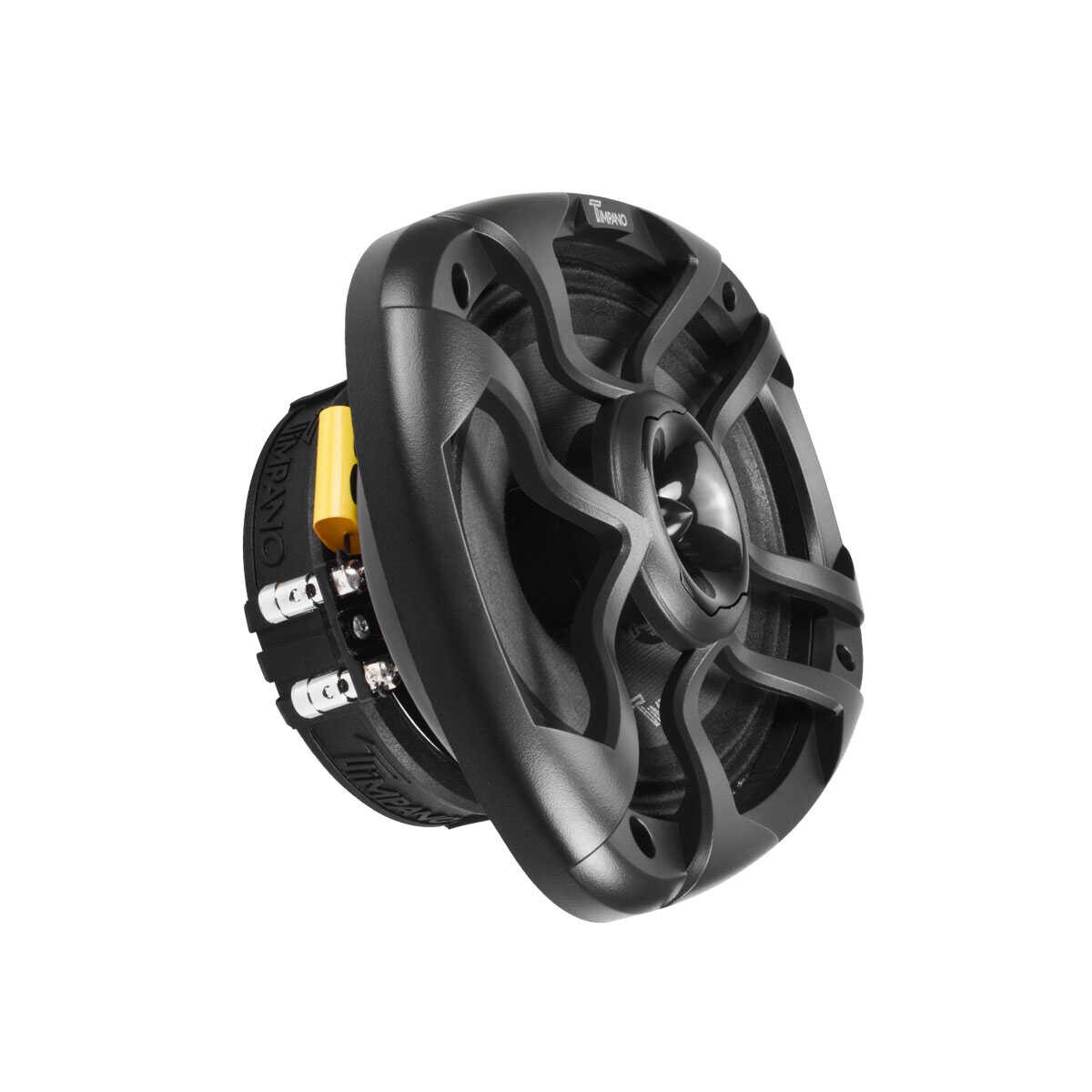

6×9″ PRO Audio 2-way coaxial car speaker (single unit)

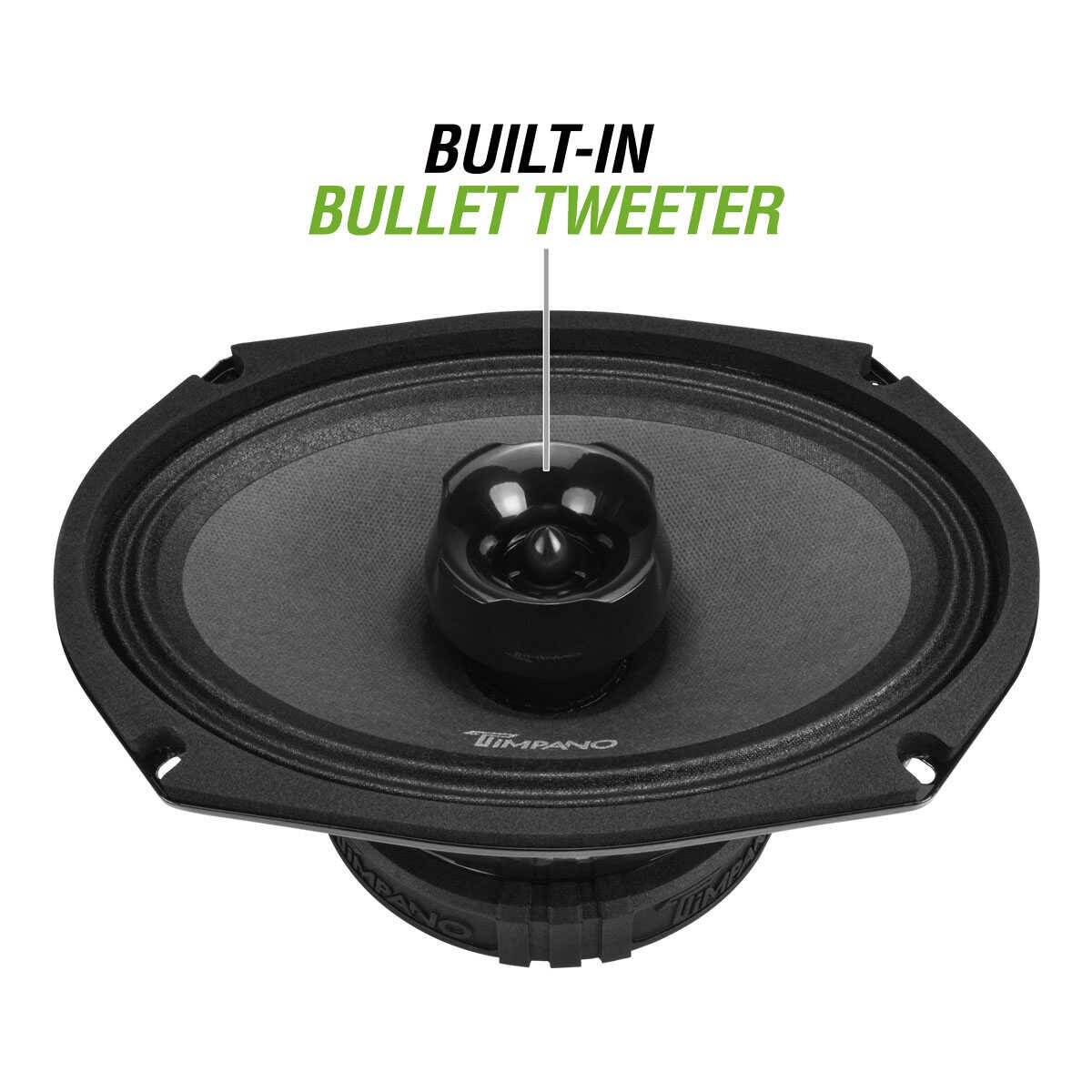

Built-in bullet tweeter with neodymium motor
Max power: 650 Watts
RMS power: 250 Watts
Impedance: 4 Ohm
Sensitivity: 98 dB
Frequency response: 70 Hz – 20,000 Hz
1.5″ speaker voice coil
1″ tweeter voice coil
Steel basket with high-strength ferrite magnet and neodymium tweeter

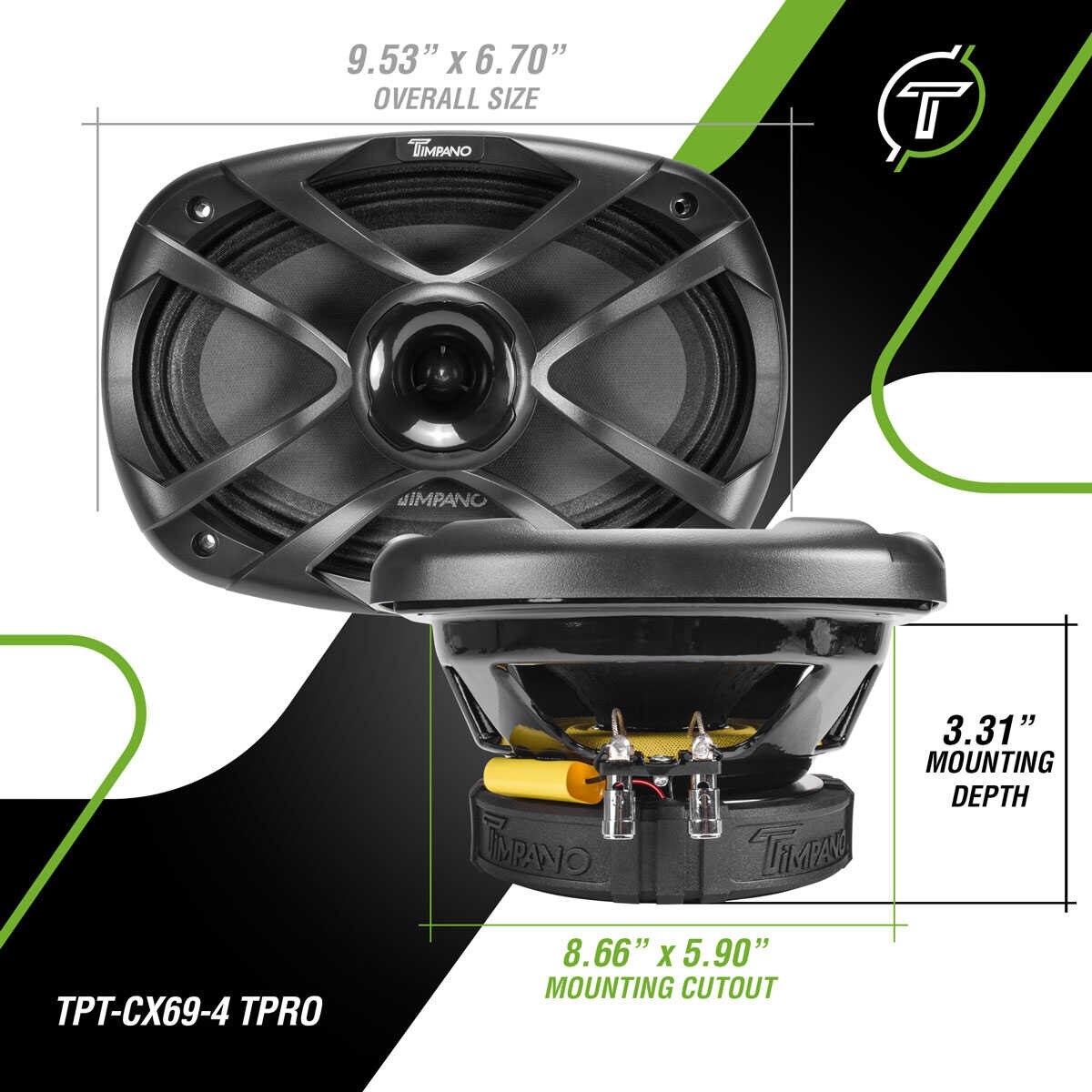

Mounting depth: 3.31″
Mounting cutout: 8.66″ × 5.90″ oval
Overall diameter with grill: 9.53″ × 6.70″ oval
Overall diameter without grill: 9.25″ × 6.49″ oval
Weight: 5.15 lbs

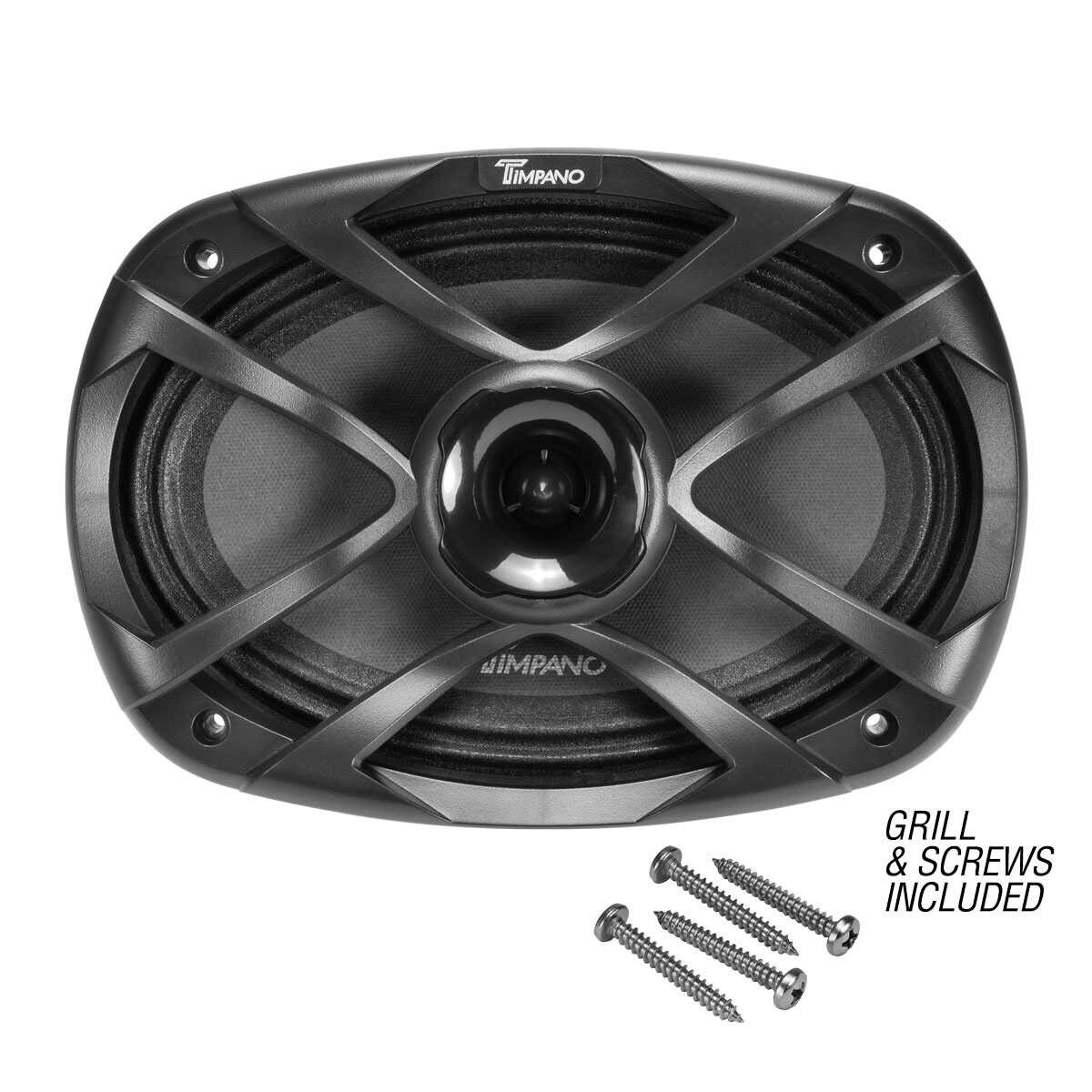

Grill and screws included
Recommended high-pass filter:
• 110 Hz @ under 325W RMS with 18dB slope
• 100 Hz @ under 250W RMS with 12dB slope
