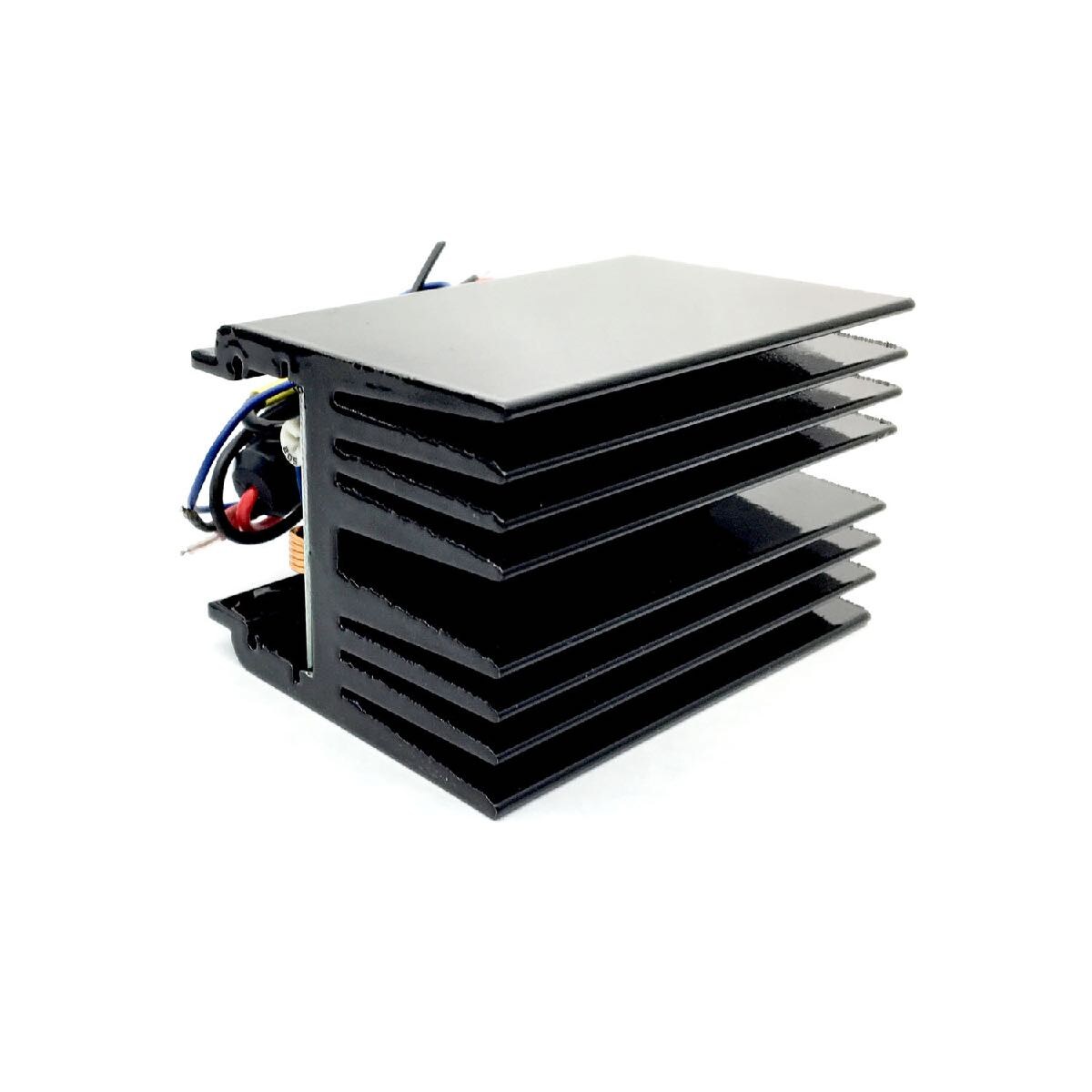

​​​​​​​RF FINAL AMPLIFIER AND LOW PASS FILTER MODULE (RFX95HD)

The RFX95HD is a replacement final RF amplification stage and low pass filter module for use with 10-meter amateur transceivers. The RFX95HD is a standard part on several models of amateur transceivers and it may also be used for repairs on most 10-meter amateur transceivers.

It is critical not to exceed the wattages shown below;

AM/FM maximum RF output power from RFX95HD: 20 watts carrier out of RFX95HD which typically equates to 4-5 watts of RF carrier input from the transceiver.

AM/FM maximum RF input power from transceiver: 40 watts PEP input from the transceiver to RFX95HD

SSB maximum RF input power from transceiver: 25-watts PEP input from the transceiver to RFX95HD
