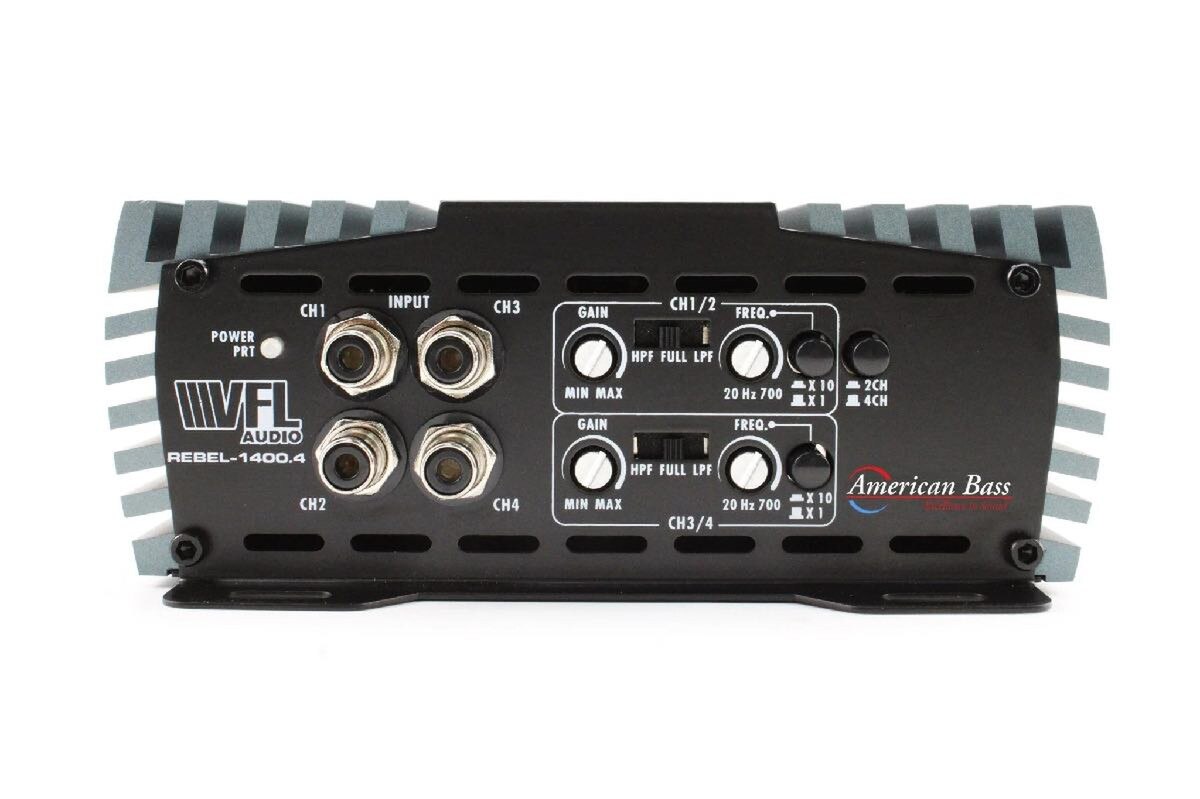

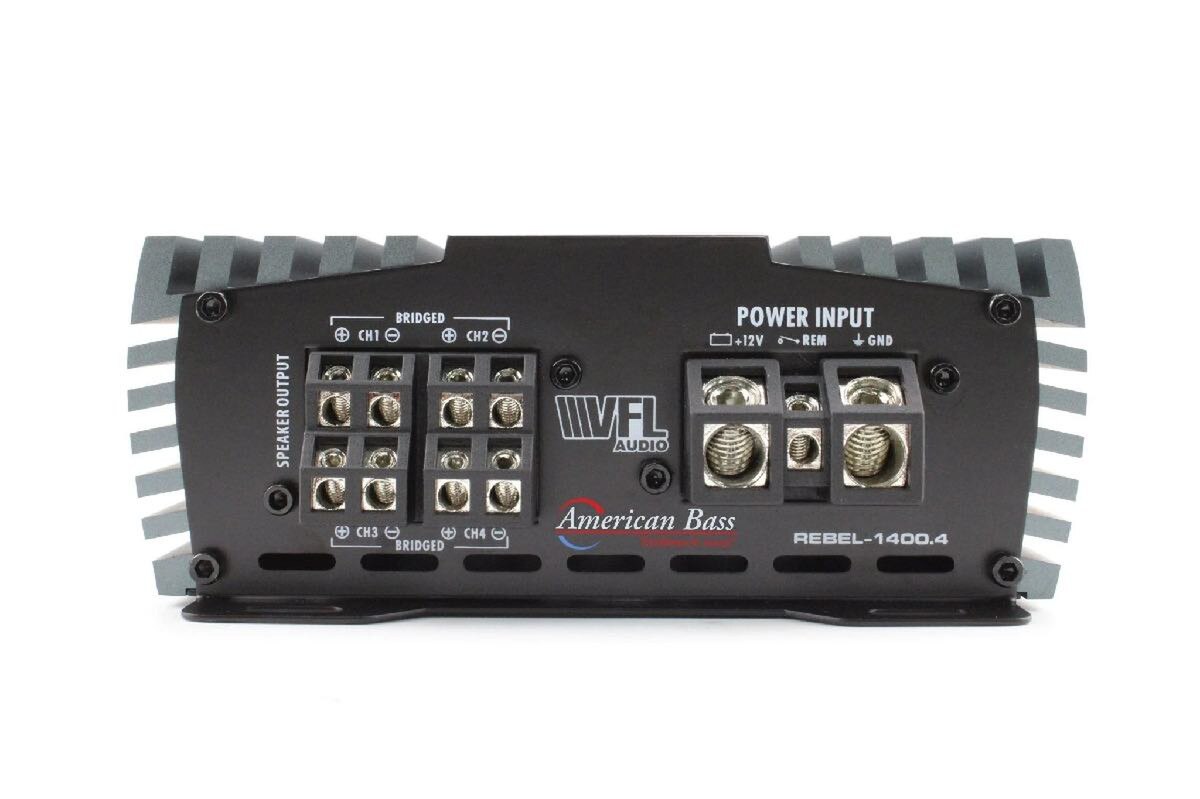

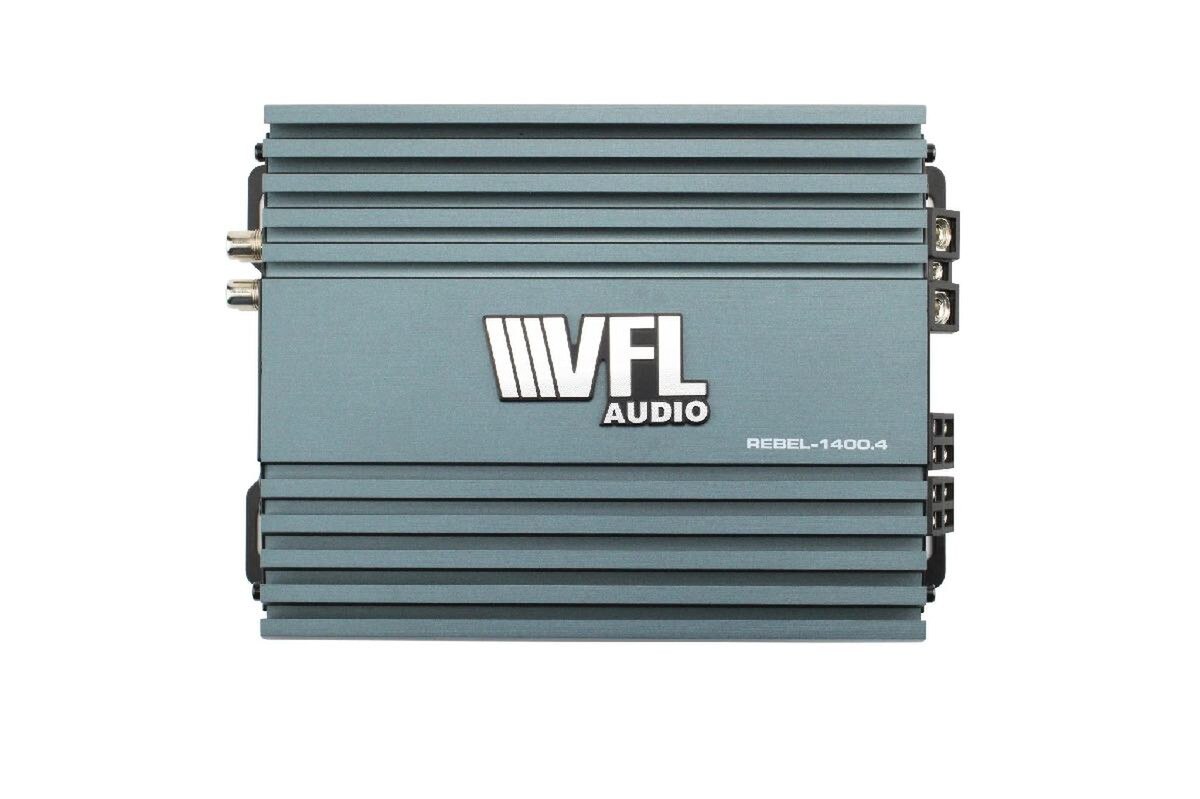

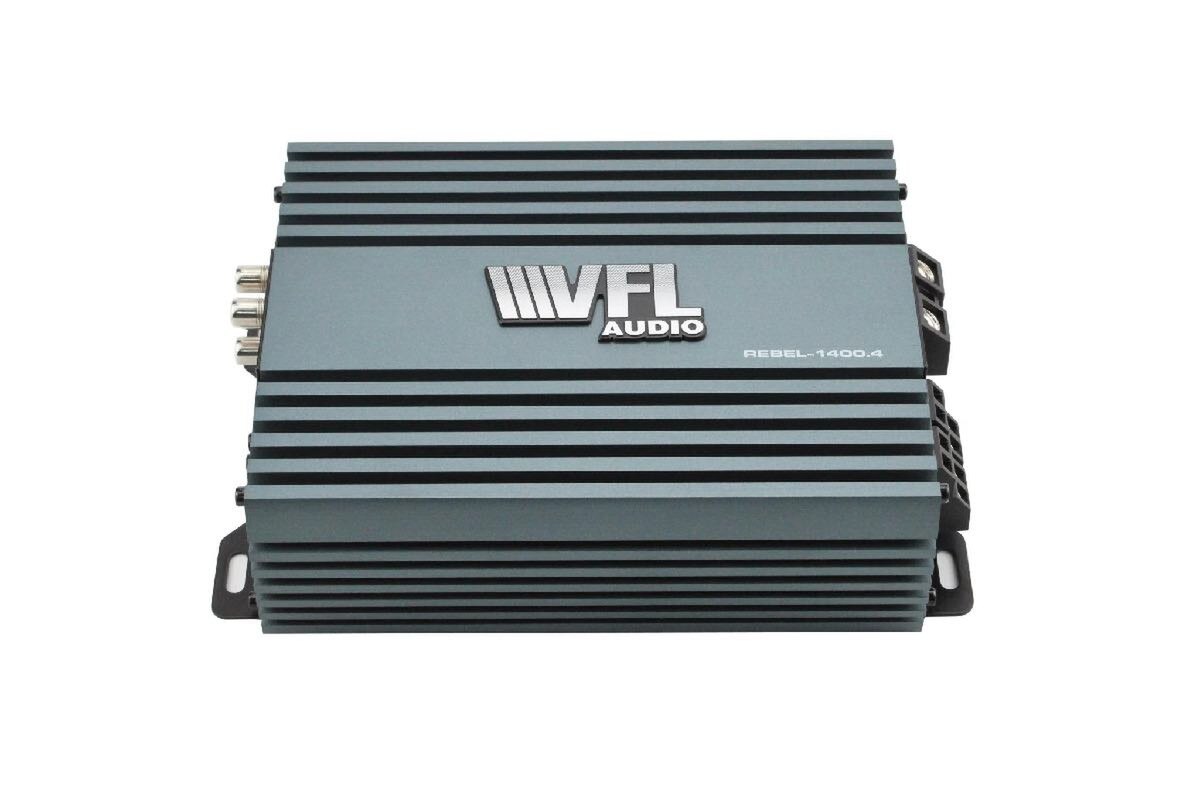

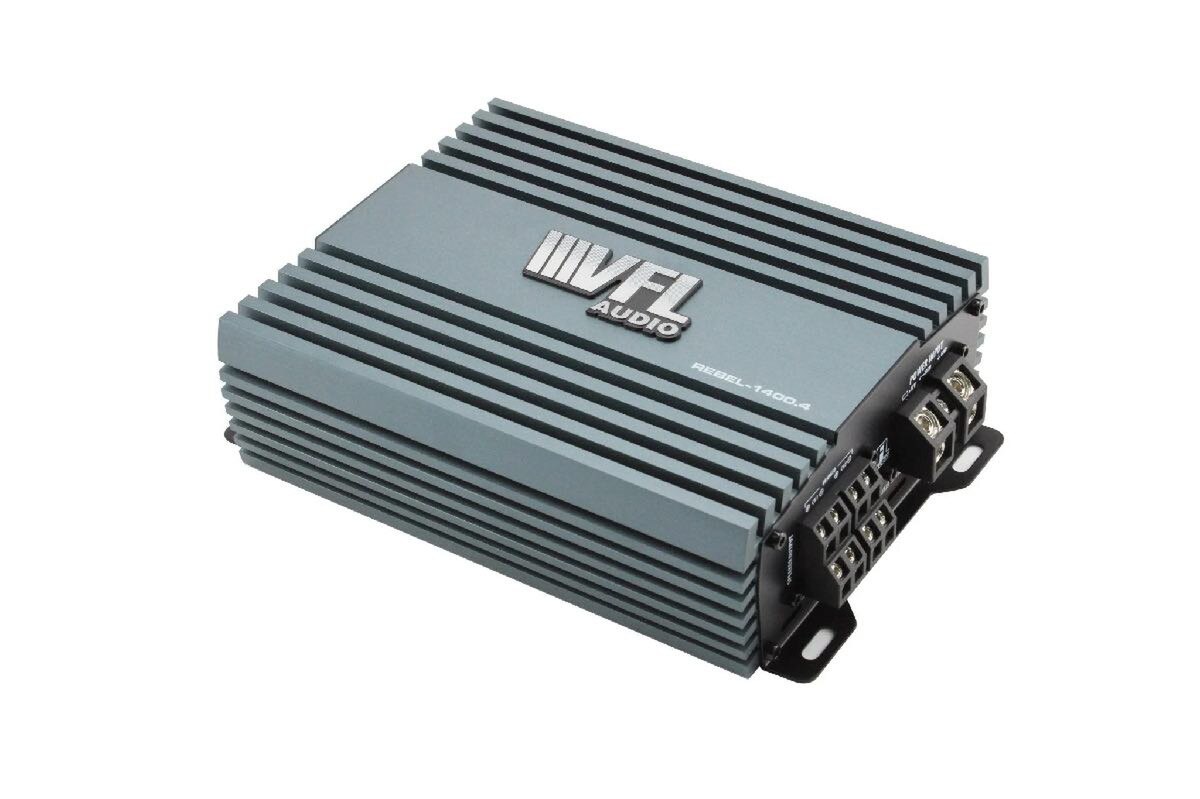

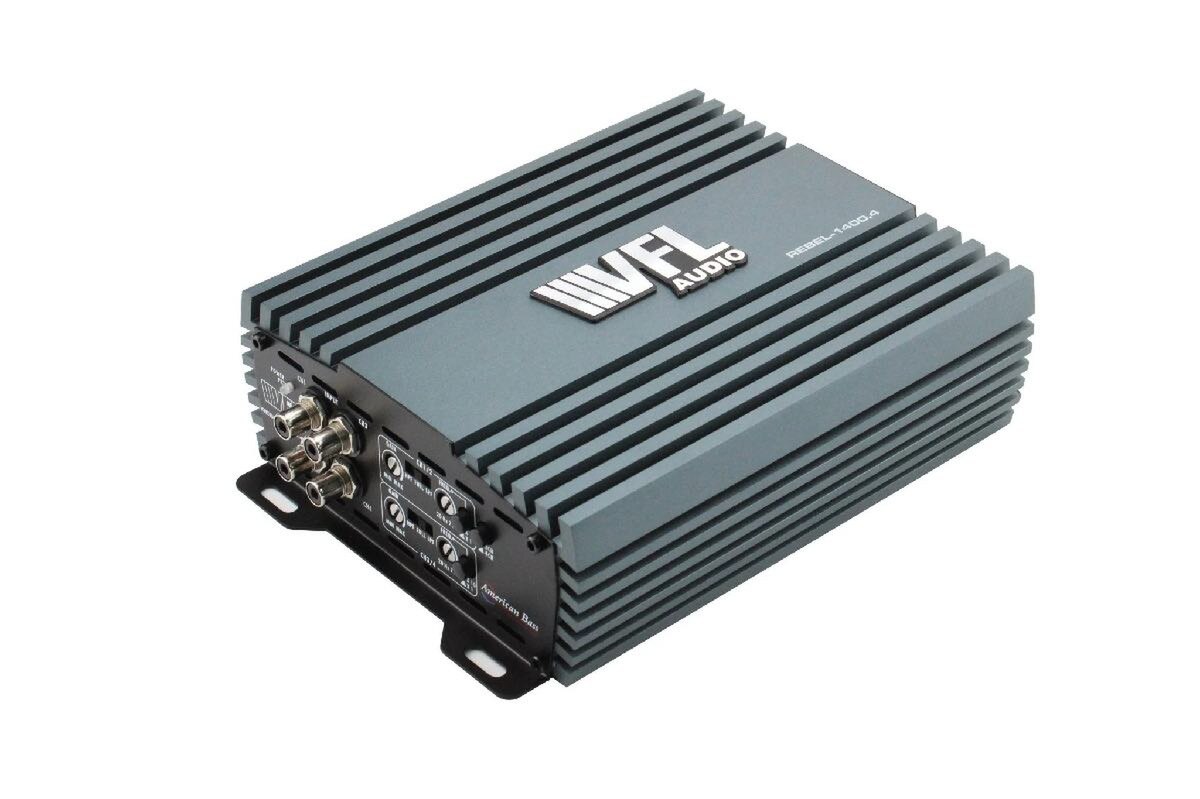

AMERICAN BASS CLASS D HIGH PERFORMANCE VFL AMPLIFIER (REBEL-1400.4)
/REBEL-14004_media_01.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/REBEL-14004_media_02.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/REBEL-14004_media_03.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/REBEL-14004_media_04.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/REBEL-14004_media_05.jpeg?resizeid=5&resizeh=1200&resizew=1200)
/REBEL-14004_media_06.jpeg?resizeid=5&resizeh=1200&resizew=1200)
Details
VFL REBEL-1400.4 is a 4-channel Class D car audio amplifier.
RMS power at 4 ohms is 220W x 4.
RMS power at 2 ohms is 355W x 4.
RMS power bridged at 4 ohms is 700W x 2.
Minimum impedance is 2 ohms.
Number of channels is 4.
Amplifier is bridgeable.
Amplifier class is 2-ohm stable Class D digital circuitry.
Input sensitivity is 0.4 – 8V.
Low pass filter range is 700Hz – 7KHz.
High pass filter range is 20Hz – 200Hz.
Signal-to-noise ratio is less than 93 dB.
Damping factor is 150.
4-layer PCB construction.
